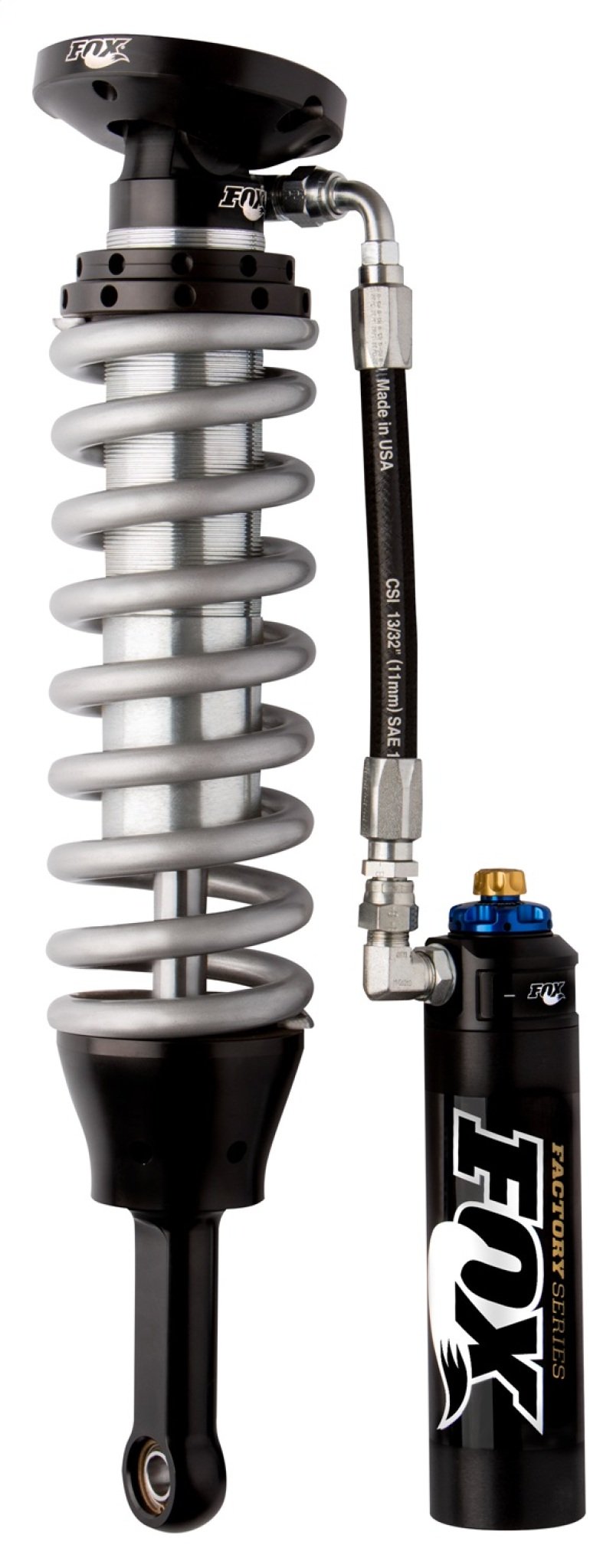

• Fox 05+ Toyota Hilux 4WD 2.5 Factory Series 4.5in. Remote Res. Coilover DSC Adj. / 0-2in. Lift - Blk 883-06-092 Main Image
1 1
BDS Suspension

Fox 05+ Toyota Hilux 4WD 2.5 Factory Series 4.5in. Remote Res. Coilover DSC Adj. / 0-2in. Lift - Blk 883-06-092

Fox 05+ Toyota Hilux 4WD 2.5 Factory Series 4.5in. Remote Res. Coilover DSC Adj. / 0-2in. Lift - Blk 883-06-092

sku: 1TWN2 | mpn: 883-06-092
$3,002.44
$3,002.44 $3,002.44
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.


Features and Benefits

  • Performance Tuned For Vehicle Specific Application
  • Durable Zinc Plated Seamless Alloy Body
  • External Reservoir System Dissipates Heat Fast
  • Black Anodized CNC Machined Aluminum Components
  • 100% Serviceable And Tunable For Longer Lifespan
  • Teflon-Lined Heat-Treated Spherical Bearings
  • Redundant Sealing System/Long Lasting Performance
Part Number:
fox883-06-092
Description:
FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR)-ADJUSTABLE
Adjuster Type:
DSC - Dual Speed Compression
Bottom Mount:
Eyelet
Collapsed Length:
17.590 in.
Color:
Steel
Extended Length:
22.130 in.
FOX CATALOG:
TRUCK
Reservoir Type:
Remote
Series:
Factory Race
Shock Stroke:
4.540 in.
Size:
2.5 in.
Title:
FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) - ADJUSTABLE
Top Mount:
TM
Top Mount (P/N):
TOP
Type:
Coil-Over Shock
Usage:
Lifted Trucks
WARNING CA Proposition 65:
Yes
WARNING CA Proposition 65 Message:
! Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Body Material:
Steel
California Proposition 65:
! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Label Name:
Kit: 05-On Toyota Hilux 4wd & 2wd Prerunner Front Coilover, 2.5 Series, R/R, 4.5", 0-2" Lift, DSC
Body Diameter (in):
2.5
Travel (in):
4.55
Compressed Length (in):
16.91
Extended Length (in):
21.46
Prop 65 Y/N:
Y
Type:
Coil-Over
