Mishimoto Ford F-150 3.5L Ecoboost Performance Intercooler Kit, 2017+
Mishimoto has developed a direct-fit 2017+ 3.5L F-150 EcoBoost Intercooler & Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor.
Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCoreT technology. The larger volume of our pipes allows your 2017+ 3.5L EcoBoost to breathe free and make the most of its two turbochargers. DuraCoreT boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination.
Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77% over stock and external fin surface area by 163%. With cast end tanks and a bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock.
- Direct fit for 2017+ Ford F-150 3.5L EcoBoost
- Increased intercooler pipe volume allows for better flow and power potential
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
- Includes Mishimoto Silicone Boots with DuraCoreT technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temp
- 77% increase in intercooler internal core volume
- 163% increase in external fin surface area
- All-aluminum, TIG-welded construction
- Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Installation Torque Specs : 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

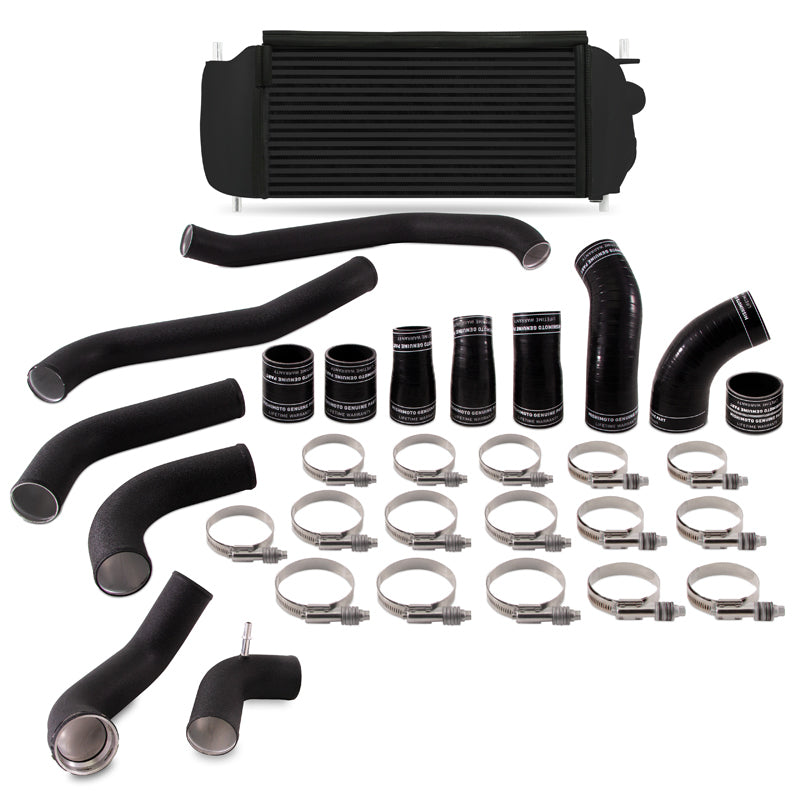

Purchase Includes :
(1) Mishimoto Intercooler w/ Assembled Rubber Trim
(1) Bypass Valve Bracket
(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange
(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing
(4) Aluminum Hot-Side Intercooler Pipes
(8) Silicone Boots w/ DuraCoreT Technology
(16) Constant-Tension Worm Gear Clamps
Mounting Hardware
Bypass Valve Hardware
Core Thickness : 4.7"
Engine Codes : 3.5L EcoBoost
Fits : 2017+ Ford F-150 3.5L EcoBoost
2017+ Ford Raptor 3.5L EcoBoost
Coating : Powder Coated
Tank Wall Thickness : 0.157"
Max Rec. PSI : 50 psi
Outlet : 3.0"
Core Length : 19.6"
Core Height : 9.4"
Inlet : 2.5"
Overall Width : 7"
Overall Height : 9.5"
Overall Length : 29"
Construction : Bar-and-plate
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 - 2022 | Ford | F-150 | King Ranch, SSV, Platinum, Limited, XL, Raptor, XLT, Lariat |
| 2018 - 2022 | Ford | F-150 | Police Responder |
| 2022 | Ford | F-150 | Raptor R |
| 2021 - 2022 | Ford | F-150 | Tremor |
