Flexalite Radiator/Fan Combo 22" Core W/ # 180 Fan - '67-'69 Camaro & Controls
Flexalite Radiator/Fan Combo 22" Core W/ # 180 Fan - '67-'69 Camaro & Controls
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

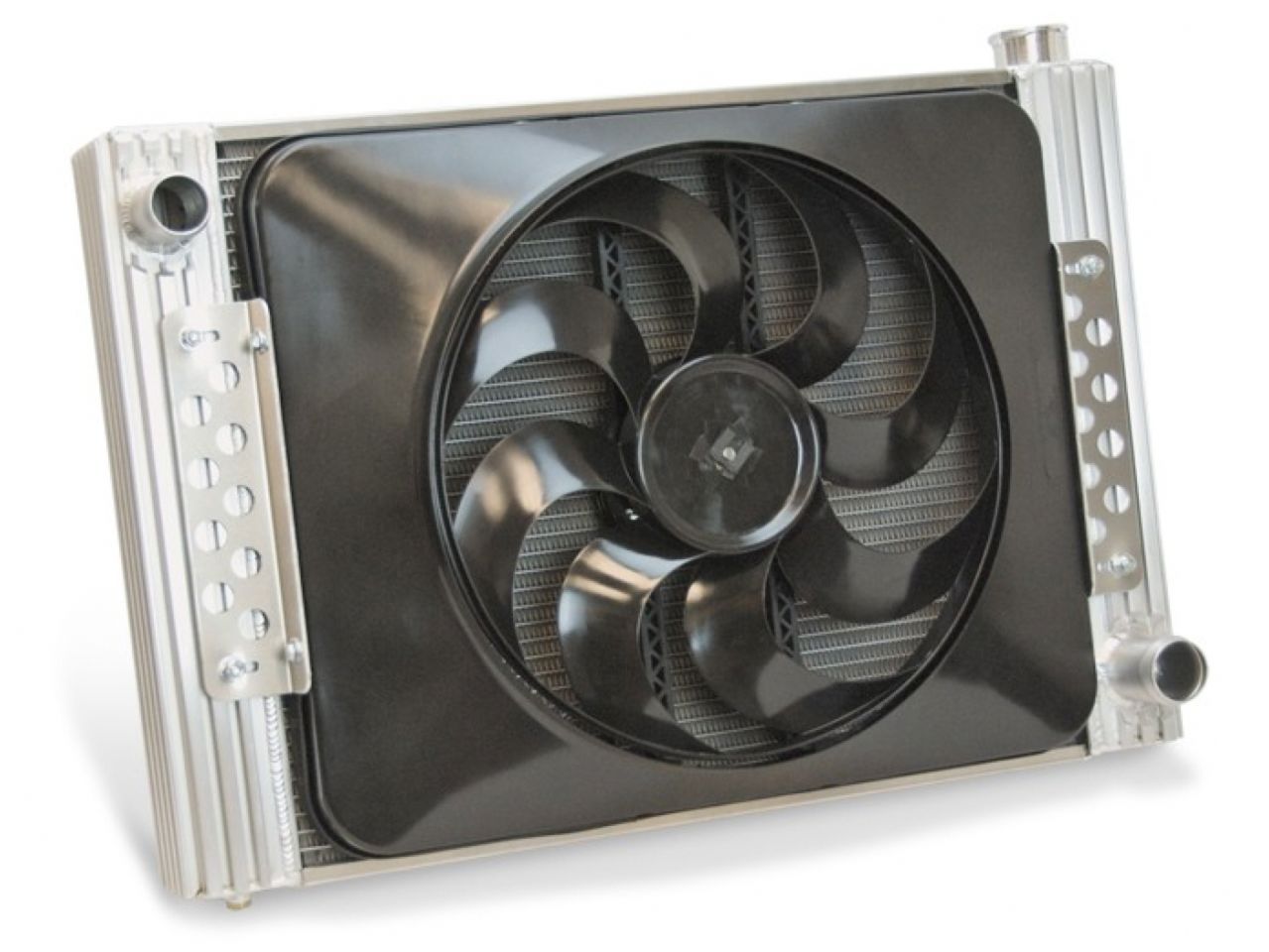

Read the shipping policyThis is a direct bolt-in Flex-a-fit® aluminum radiator. Flex-a-fit® aluminum radiators made by Flex-a-lite® feature patented sidetank tank technology. The "T" channels offer 130 percent better heat transfer, a durable mounting system for the radiator, electric fan and optional oil cooler or expansion tank. The dual 1-inch all-aluminum radiator core is hand welded in the U.S. to the Flex-a-fit sidetanks. This radiator comes with a Flex-a-lite 15-inch Black Magic Xtreme S-Blade electric fan with adjustable thermostat controller.
- Fits '67-'69 Chevrolet Camaro
- O.E. radiator mounting points
- Brackets are included for no-drill installation
- 2-row, 1-inch tubes
- 3,300 cfm of airflow
| Height (inches) | 18 1/2 in. |
|---|---|
| Width (inches) | 27 3/4 in. |
| Depth (inches) | 7 in. |
| Depth (rounded up) | 7 in. |
| Inlet Side | Driver Side |
| Air Flow (cfm) | 3,300 |
| Fan Diameter (inches) | 15 in. |
| Number of Blades | 8 |
| Amperage Draw | 18 |
| Fuse Rating (amp) | 40 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1967 - 1969 | Chevrolet | Camaro | Z28, RS, Base, SS |
| 1967 | Pontiac | Firebird | 326 |
| 1968 - 1969 | Pontiac | Firebird | 350 |
| 1967 - 1968 | Pontiac | Firebird | HO |
| 1967 - 1969 | Pontiac | Firebird | Sprint, 400, Base |
| 1969 | Pontiac | Firebird | Trans Am, 350 HO |
