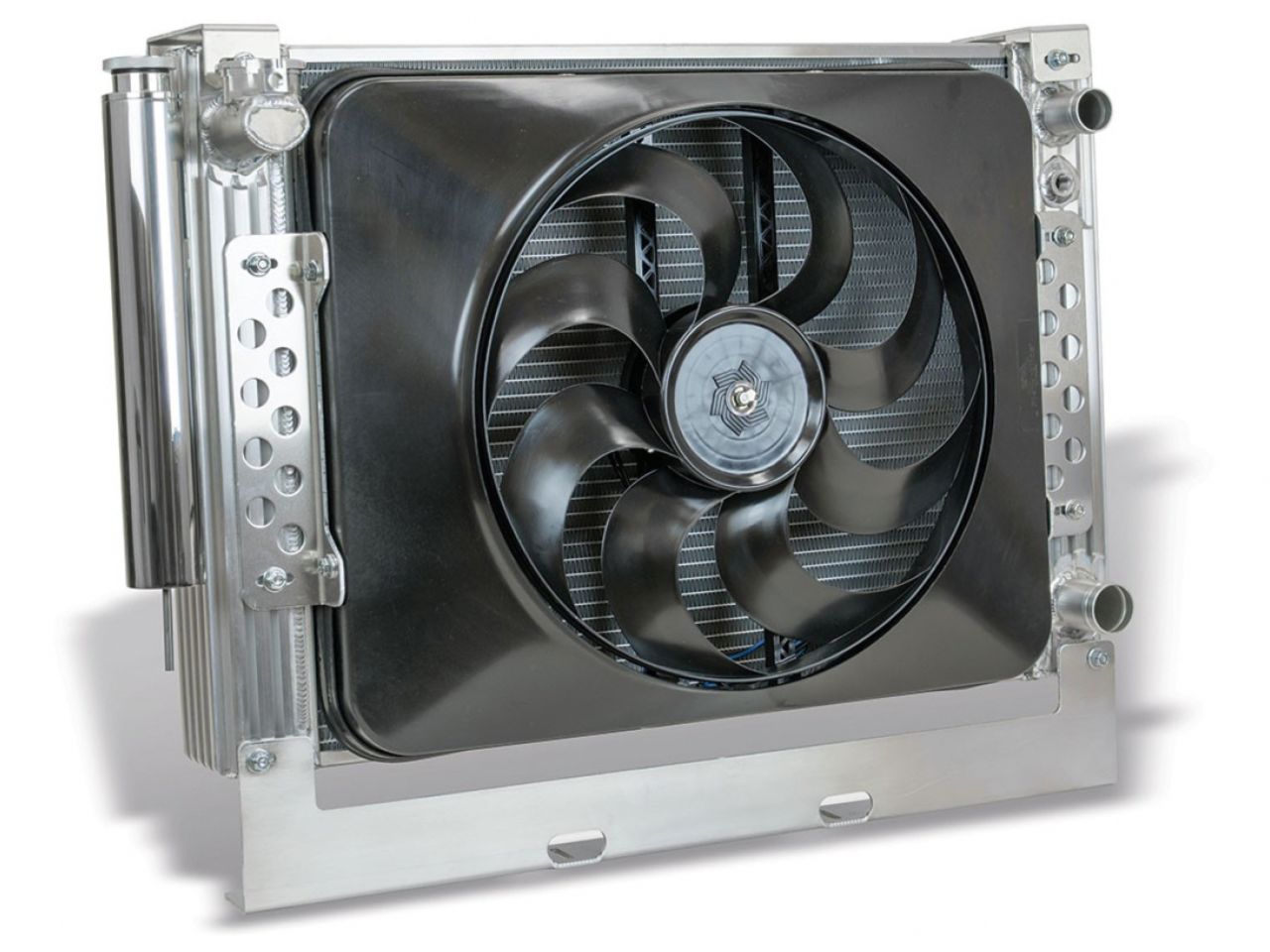

Flexalite Rad/Fan Mustang 79-93 LS Conversion W/185 Fan
This is a direct bolt-in Flex-a-fit® aluminum radiator for the Fox Body Mustang with an LS engine conversion. Flex-a-fit® aluminum radiators made by Flex-a-lite® feature patented sidetank tank technology. The "T" channels offer 130 percent better heat transfer, a durable mounting system for the radiator, electric fan and optional oil cooler or expansion tank. The dual 1-inch all-aluminum radiator core is hand welded in the U.S. to the Flex-a-fit sidetanks. This radiator comes with a Flex-a-lite 15-inch Black Magic Xtreme S-Blade electric fan with adjustable thermostat controller.
- Fits '79-'93 Ford Mustang
- 78% more coolant capacity
- Designed for LS engine conversions
- O.E. radiator mounting points
- Brackets are included for no-drill installation
- Includes overflow tank
- 2-row, 1-inch tubes
- 3,300 cfm of airflow
| Height (inches) | 18 1/2 in. |
|---|---|
| Width (inches) | 27 3/4 in. |
| Depth (inches) | 7 in. |
| Depth (rounded up) | 7 in. |
| Inlet Side | Passenger Side |
| Air Flow (cfm) | 3,300 |
| Fan Diameter (inches) | 15 in. |
| Number of Blades | 8 |
| Amperage Draw | 18 |
| Fuse Rating (amp) | 40 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1979 - 1984 | Ford | Mustang | Base |
| 1981 | Ford | Mustang | Cobra |
| 1979 - 1982 | Ford | Mustang | Ghia |
| 1982 - 1983 | Ford | Mustang | GL, GLX |
| 1982 - 1993 | Ford | Mustang | GT |
| 1984 | Ford | Mustang | GT-350 20th Anniversary |
| 1982 - 1984 | Ford | Mustang | L |
| 1984 - 1993 | Ford | Mustang | LX |
| 1984 - 1986 | Ford | Mustang | SVO |
| 1993 | Ford | Mustang | SVT Cobra R, SVT Cobra |
| 1983 | Ford | Mustang | Turbo GT |
Flexalite Rad/Fan Mustang 79-93 LS Conversion W/185 Fan
Sale price$924.95 USD
