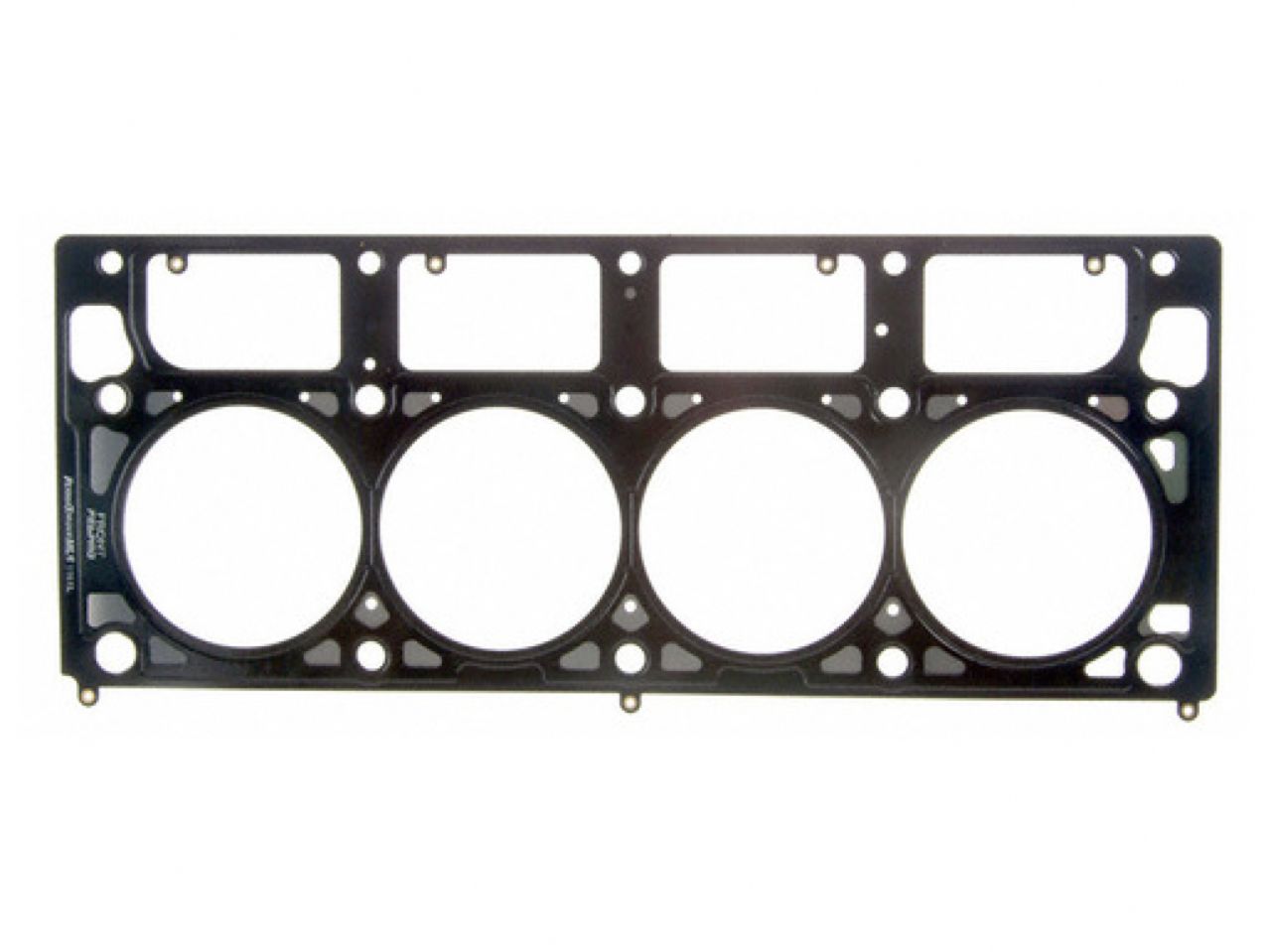

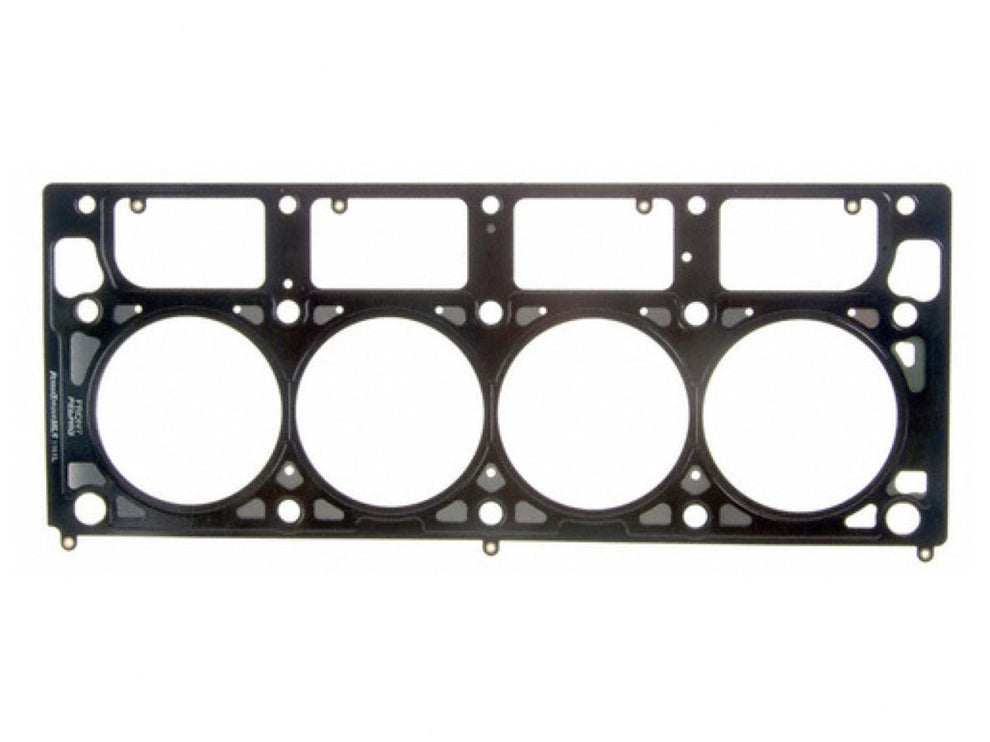

FelPro Head Gasket

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

•Fel-Pro® Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.

•The latest development in Fel-Pro Performance head gasket technology is the PermaTorque®MLS (multi-layer steel) series.

•Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage.

•Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron

•Not intended for use in emission controlled vehicles.

Specifications

Part Type: Head Gasket

Mfg.: GM Performance

Engine Family: Chevrolet V8 LS Small Block

Engine Displacement: (4.8L) 293, (5.3L) 325 (Truck Block Based), (5.7L) 346, (5.7L) 383 Stroker, (6.0L) 364, (6.0L) 369 Stroker, (6.0L) 402 Stroker, (6.2L) 378, (7.0L) 427, Aftermarket Performance Block

Bore Size (in.): 4.100

Thickness (in.): 0.053

Combustion Chamber Volume (cc): 11.50

Combustion Seal Design: MLS bore bead

Materials/Construction: PermaTorqueMLS® multi-layer steel
