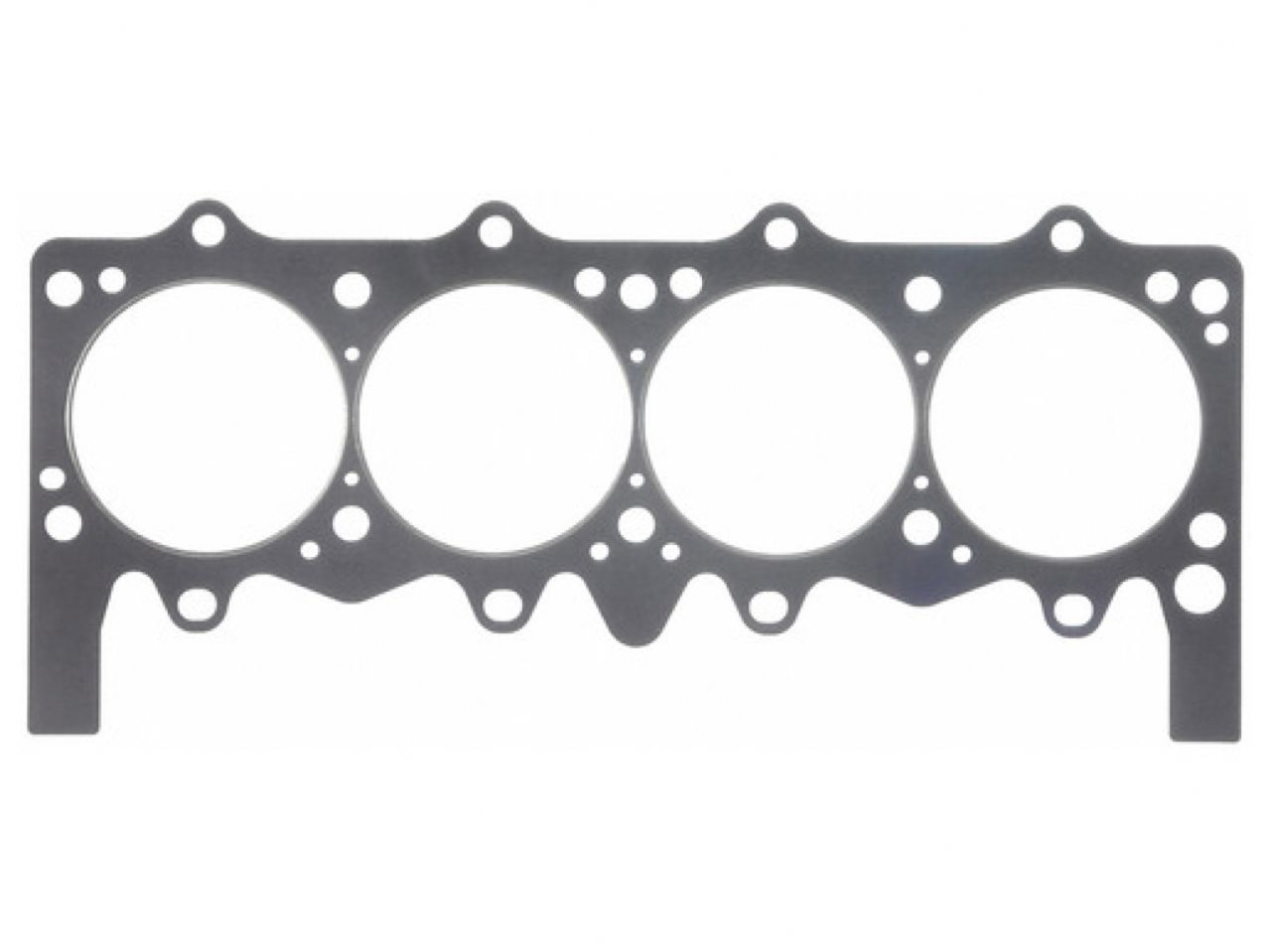

FelPro Head Gasket

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

Features:

Fel-Pro® Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.

Loc Wire® requires that a special receiver groove be machined into the cylinder head.

The process of machining receiver groove into the head is critical and should only be attempted by a skilled machinist.

Recommended for engines running extreme levels of boost or nitrous oxide.

Not intended for use in emission controlled vehicles.

Specifications:

• Part Type: Head Gasket
• Mfg.: Chrysler Performance
• Engine Family: Chrysler V8 Racing Small Block, Chrysler V8 Small Block
• Engine Displacement: 273, 318LA, 340, 360, P5, P7/R5, P8/R6, W7, W8, W9
• Bore Size (in.): 4.190
• Thickness (in.): 0.039
• Combustion Chamber Volume (cc): 9.00
• Combustion Seal Design: Loc Wire® copper wire
• Materials/Construction: Steel core laminate
• Application Notes: W8 w/18-bolt head
• Product Notes: Requires precision machined receiver groove in head
