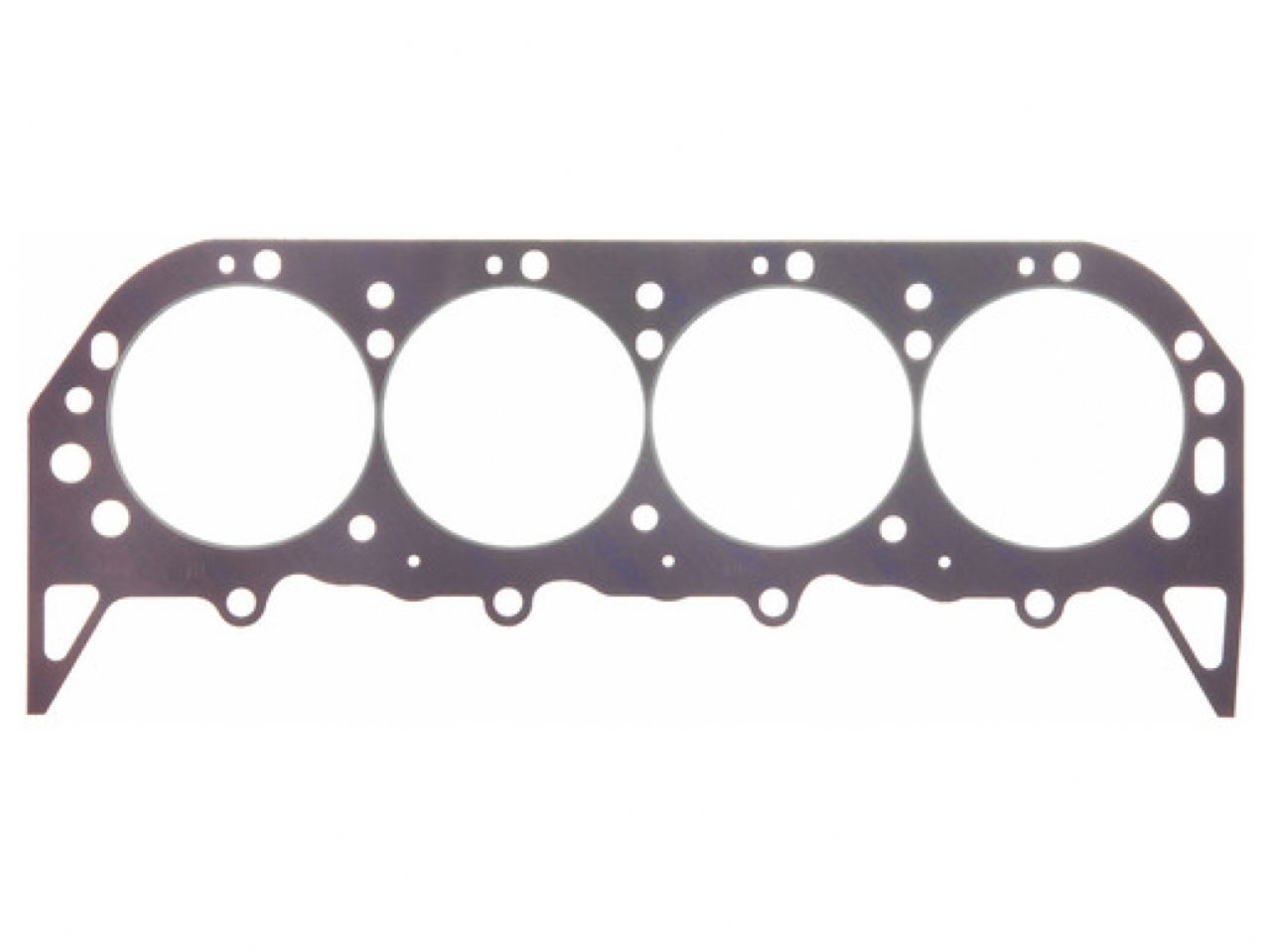

FelPro Head Gasket

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

• Fel-Pro® Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.

• Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber.

• Raises combustion sealing force to roughly three times that of standard head gaskets.

• Steel wire rings for the greatest combustion seal strength.

• Not intended for use in emission controlled vehicles.

Specifications

Part Type: Head Gasket

Mfg.: GM Performance

Engine Family: Chevrolet/GM V8 Racing Big Block

Engine Displacement: DRCE (4.900 Bore Centers)

Bore Size (in.): 4.700

Thickness (in.): 0.051

Combustion Chamber Volume (cc): 14.60

Combustion Seal Design: Pre-flattened steel wire

Materials/Construction: Steel core laminate

Application Notes: Standard Chevrolet-style Big Block - Gasket bores are round - Same bolt pattern as Part No. 1098

Product Notes: Minimal brinelling of aluminum heads
