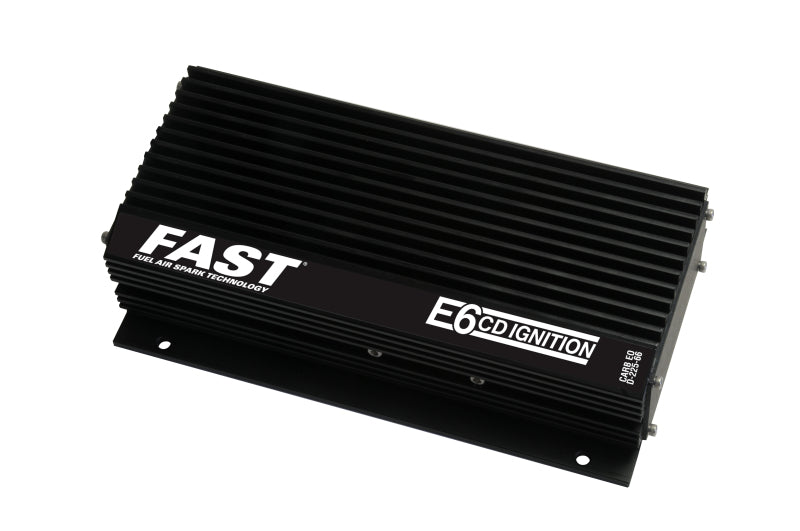

FAST Box FAST E6 Digital Cd Ignition 306425

FST Uncatrgorized

Electronic Ignition System

Operating Range: 12,000+ RPM, Primary Energy Output: 1200mJ/Sequence CARB E.O. D-225-66

The FAST E6 Capacitive Discharge Ignition Control will fire up your engine with high voltage, full power sparks from cranking to redline RPM. FAST understands the goals and needs of a reliable, high energy spark and now offers an ignition control designed for nearly any 4, 6, and 8-cylinder distributor triggered engine ? carbureted or fuel injected. The E6 is our base CD ignition control, making it ideal for street rods, muscle cars and daily drivers. The ignition produces a series of sparks at lower RPM which produces quick starts, smooths out the idle and helps with throttle transitions. This series of multiple strikes burns in the cylinder for 20? of crankshaft rotation through 3,000 RPM. Higher RPM receives a full voltage spark that will improve the mid-range and higher RPM pull. The E6 will easily connect to breaker points, amplifiers and the FAST line of XDi Sportsman and Pro Race distributors. It will also connect ot the ouput of any FAST EFI System. Each unit is built with modern surface-mount surface-mount technology and then is secured and sealed in a sturdy, easy-to-mount housing.

Full power, multi-strike CD ignition designed for carbs and EFI. Efficient digital controller, transformer and capacitor for improved efficiency. High energy sparks from idle to redline ensure complete combustion for increased power.
