FAST Fuel Pressure Regulator Service Kit

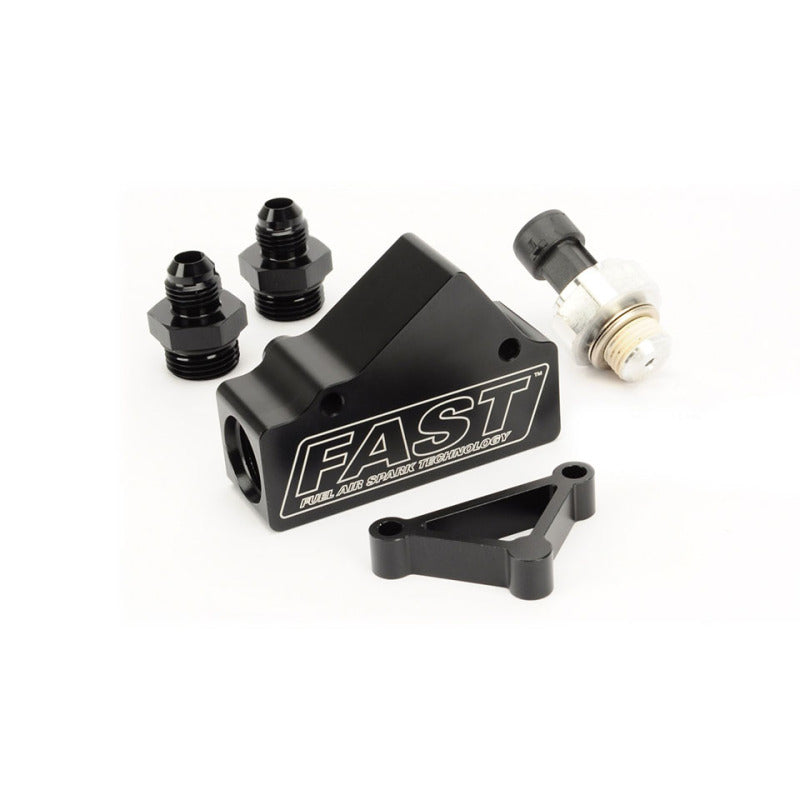

Connects directly to Analog connector and sends output signal to Aux Analog 1. Kit includes: billet aluminum mounting block with two -8 SAE o-ring type female connections ports, spacer and mounting hardware for easy connection and two -8 to -6 AN fittings. The harness included in the kit connects the pressure sensor to the ANALOG connector on the XFI main harness. The output signal from the sensor is wired to Aux Analog Input #1.
Electronic Fuel Pressure Kit, 0-100Psi
Fuel Pressure Regulator Service Kit
The Electronic Fuel Pressure Kit provides electronic fuel pressure measurement capability in an easy and affordable kit. It obtains an accurate and instantaneous fuel pressure measurement that can be used to improve fuel delivery accuracy and provide an accurate signal for data acquisition. The kit offers OEM reliability by including a GM OEM sensor designed to function and remain durable in the engine environment. It can measure oil pressure or other fluids in the 0-100 psi range for any application. For use with XFI 2.0 ? or other suitable EFI systems.
This electronic fuel pressure kit allows the user to accurately monitor the pressure of fuel. Includes our billet fuel sensor block (30425FSB), a fuel pressure sensor (30428) and our 30317 to adapt to XFI ECU.
XFI Fuel Pressure
XFI Fuel Pressure Kit
