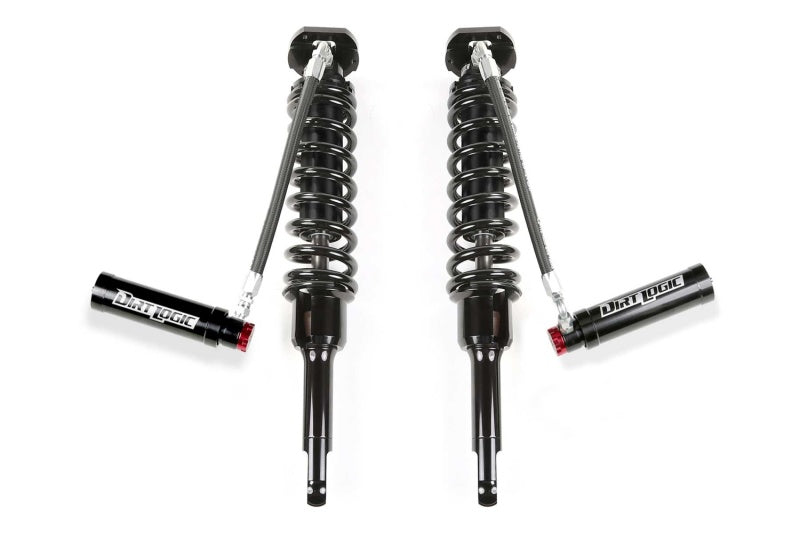

Fabtech 17-20 Ford F150 Raptor 4WD 4in Front Dirt Logic 3.0 Reservoir Coilovers - Pair FTS22323

FAB Coilovers - Dirt Logic 3.0

Shock Absorber and Coil Spring Assembly

NO WHEELS/TIRES; 0. NO FOOTNOTES

These race quality Coilovers directly replace the stock Raptor Coilovers with improved offroad damping for aggressive driving in the most punishing conditions. They provide an additional 10% of wheel travel for a total of 11" when used with uniball upper control arms. The Dirt Logic 3.0 shocks are constructed with a steel body and finished in a tactical black Cerakote coating for extreme durability. This coating provides 120 hour salt spray compared to zinc plated shocks only going 48 hour salt spray. NitroSteel 1-1/4" piston rods are utilized to repel rock chipping while providing superior corrosion resistance. The cold wound Eibach coil springs have a 600lb. spring rate to properly hold the weight of the Gen 1 Raptor. They work perfectly with the proprietary valving of the Dirt Logic 3.0 Coilovers for high speed offroad use. The remote 2.5 reservoir features a compression adjuster that allows increased damping for aggressive driving. The reservoir is mounted to the side of the frame allowing access to the large twist knob for fast and easy adjustments to the compression valving. High tolerance internal components feature Viton seals and a 2.75 OD billet piston with variable flow bleed ports. It provides a compliant ride at low speed yet able to handle big impact hits with ease. Completing the blacked out appearance of these Raptor Coilovers is the polished and black anodized aluminum components. They offset the matte Cerakote finish for a subtle yet bold statement. These Dirt Logic 3.0 Coilovers are an upgrade in quality and performance from the stock Raptor shocks that will be appreciated once behind the wheel in rugged offroad conditions.

Dirt Logic 3.0 Resi Coilover; Front; Fits 0-3 in. Lift; For PN[K2359DL/K2360DL/K2361DL/K2362DL/K2363DL/K2364DL/K2365DL];
