Flexalite Extruded Core Universal Radiator 34x20
Flex-A-Lite® Extruded Core Technology is the future of performance aluminum radiators, replacing multi-core radiators with a new advanced design. Flex-A-Lite® Extruded Core Radiators provide significantly better cooling with a stronger, more durable and lighter design.

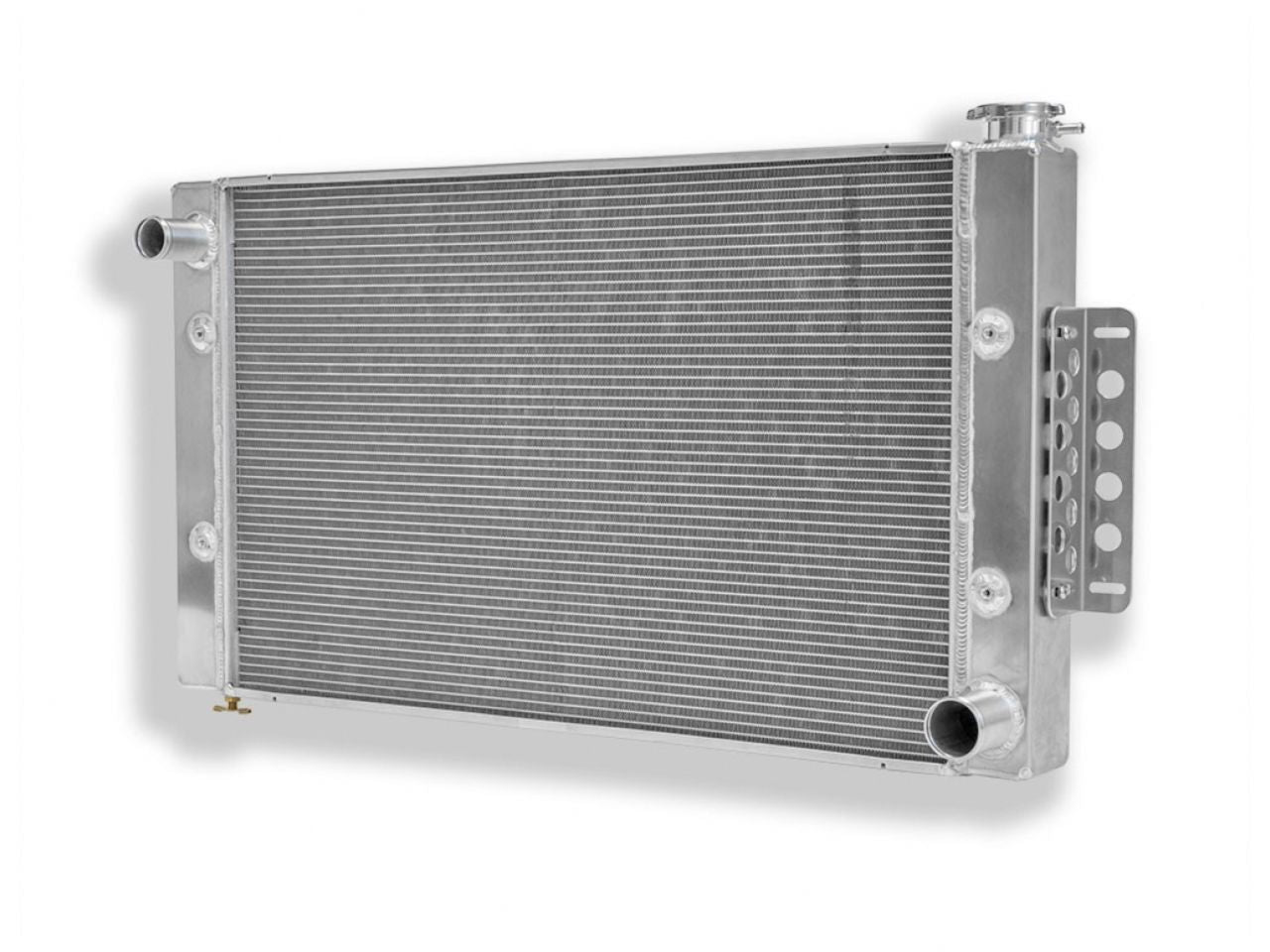

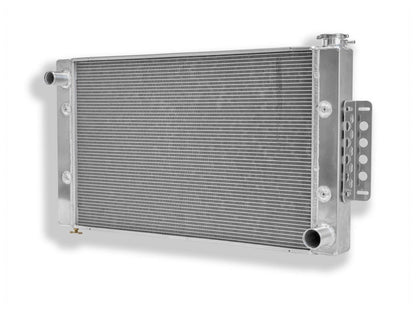

This universal radiator measures 34 inches wide and 20 inches tall, and it can be used in a variety of performance vehicles, including racing, street cars, trucks and off-road. Adjustable 90-degree side brackets facilitate a variety of mounting possibilities. Side tanks included welded captured nuts to make mounting electric fans easy. Radiator includes 22-24 lbs. cap and train petcock.
Features:

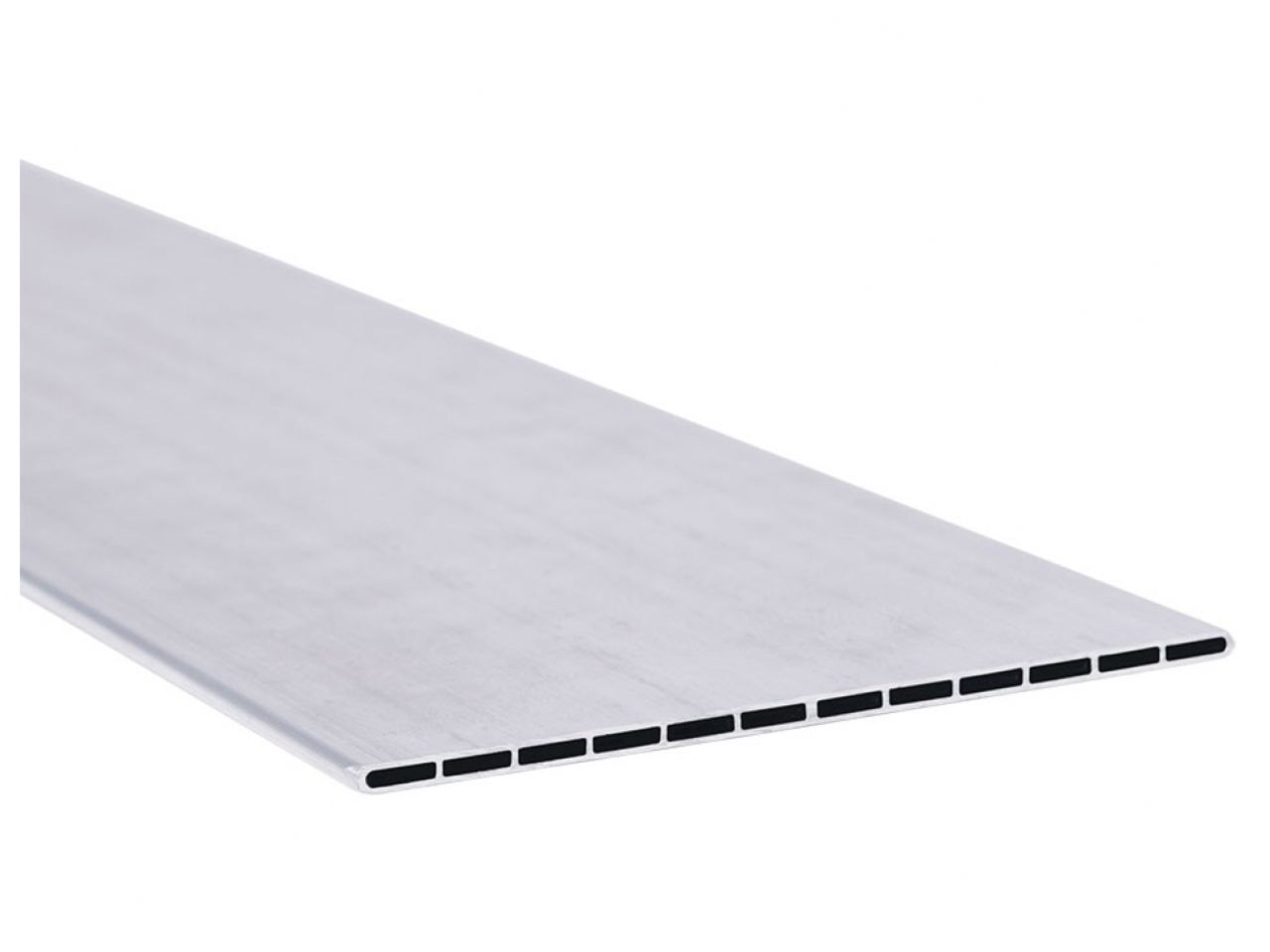

- Increased contact area between the coolant and aluminum tubes for better heat rejection and cooling
- A flat surface on which to braze the cooling fins, maximizing the contact between the tubes and fins for increased heat rejection and better cooling

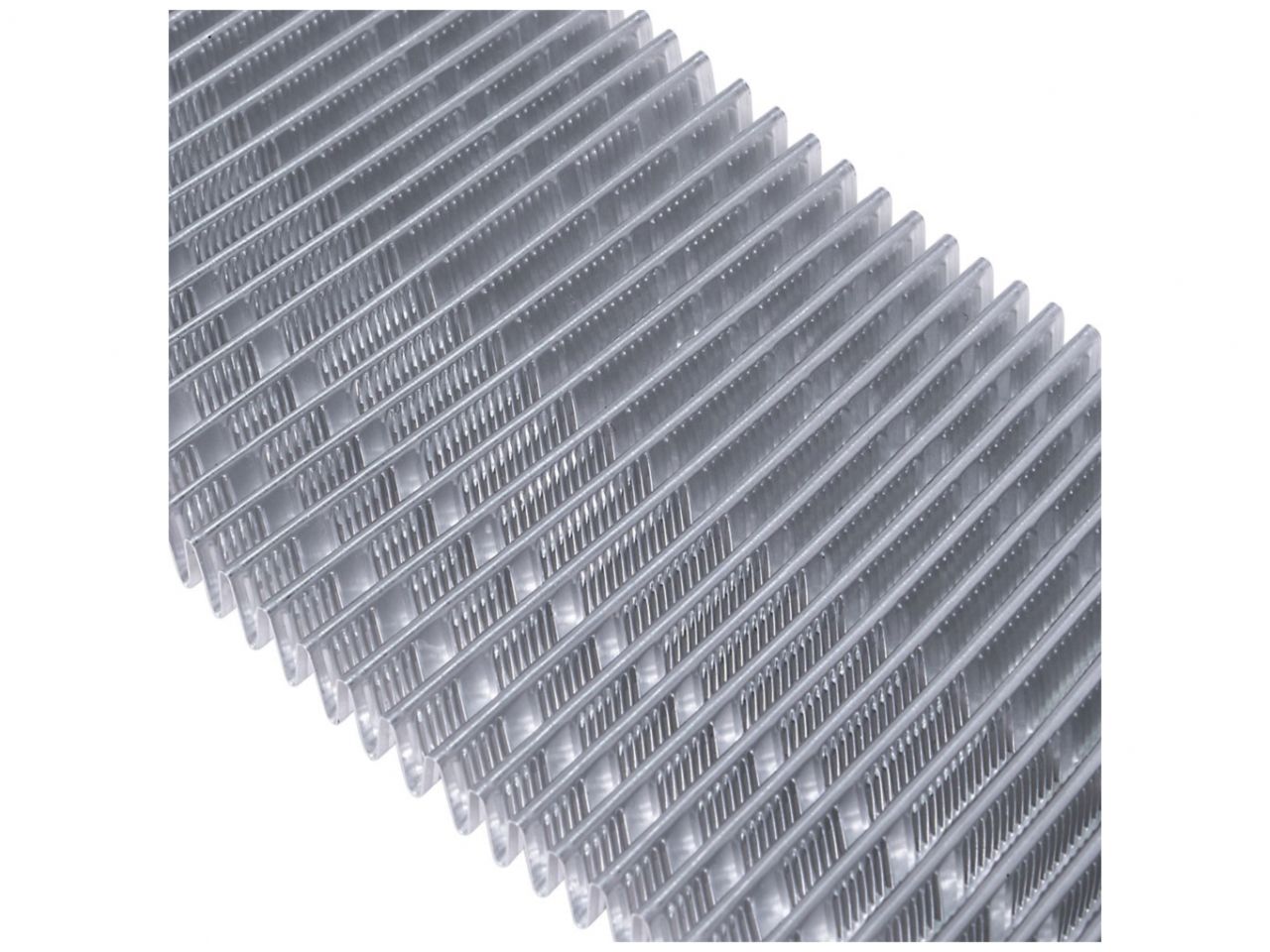

- The cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
- Wind-tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
- The Flex-A-Lite® Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
- The Flex-A-Lite® Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection, an area prone to cracking and leaking in other brands of aluminum radiators.
Specifications
Height (inches): 19.84
Width (inches): 33.6
Depth (inches): 2.56
Depth (rounded up): 3 in.
Inlet Side: Driver Side
