Flexalite Extruded Core Radiator & Triple Electric Fans 1984-2001 Jeep Cherokee
Flex-A-Lite® Extruded Core Technology is the future of performance aluminum radiators, replacing multi-core radiators with a new advanced design. Flex-A-Lite® Extruded Core Radiators provide significantly better cooling with a stronger, more durable and lighter design.

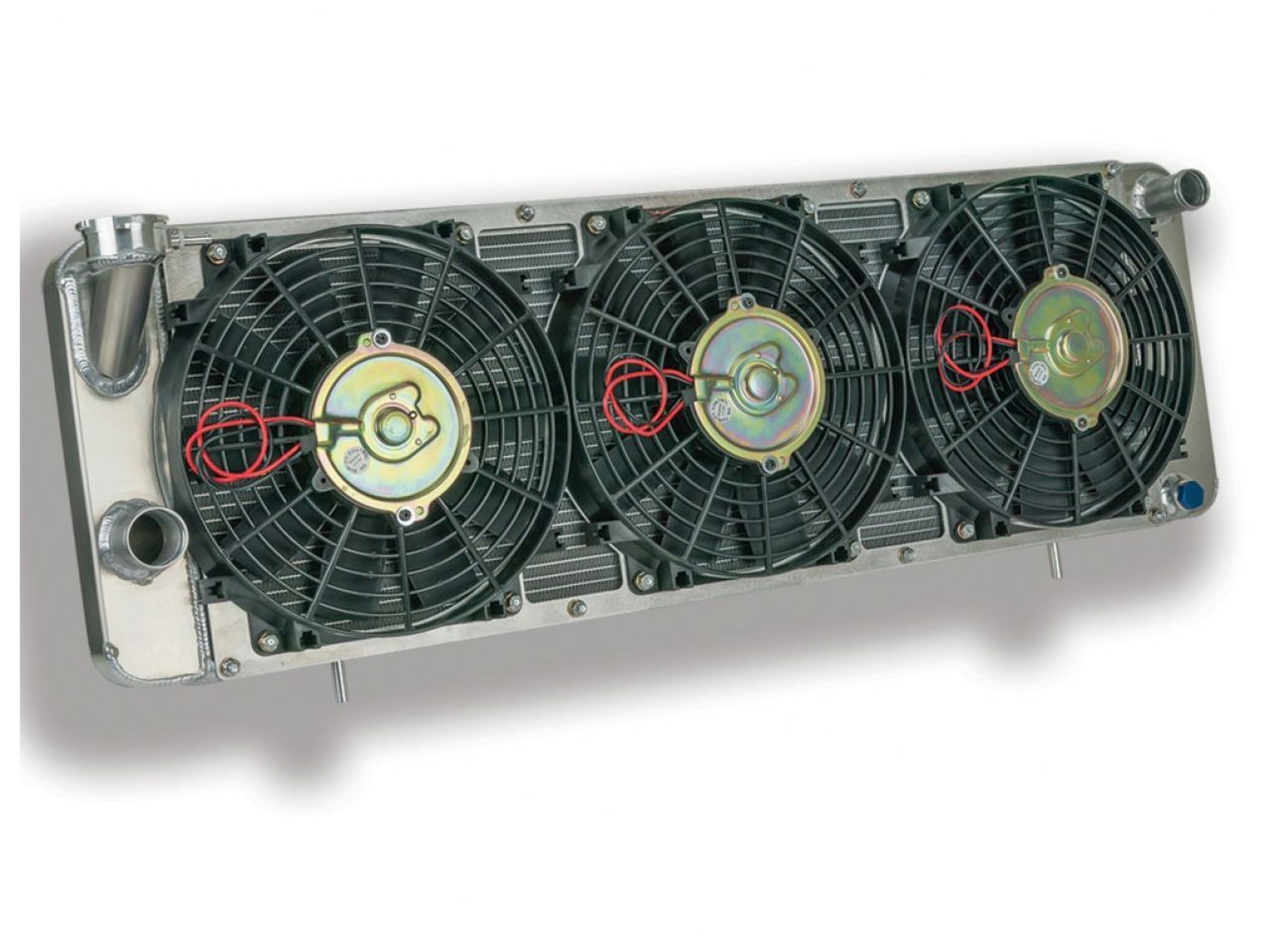

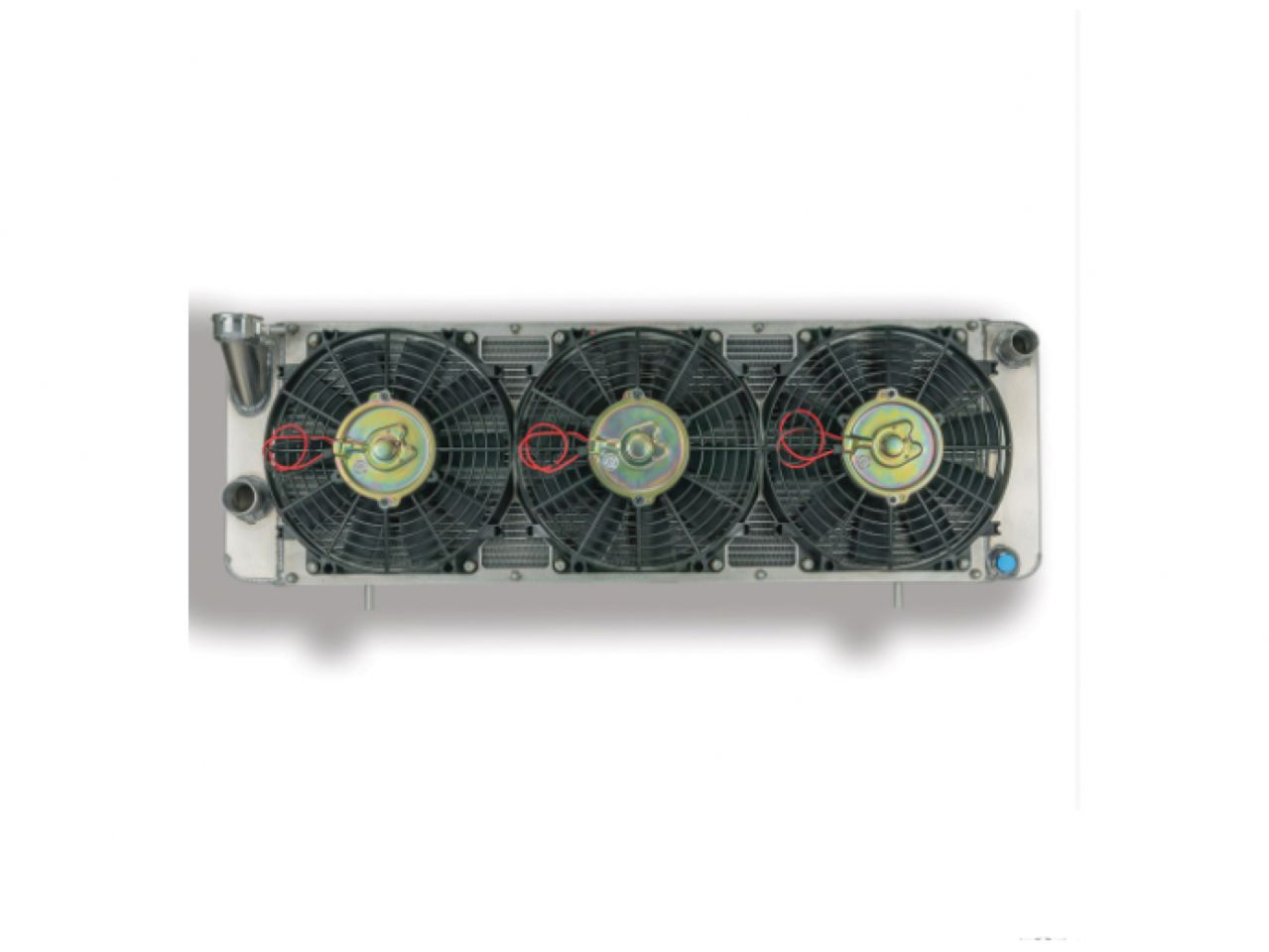

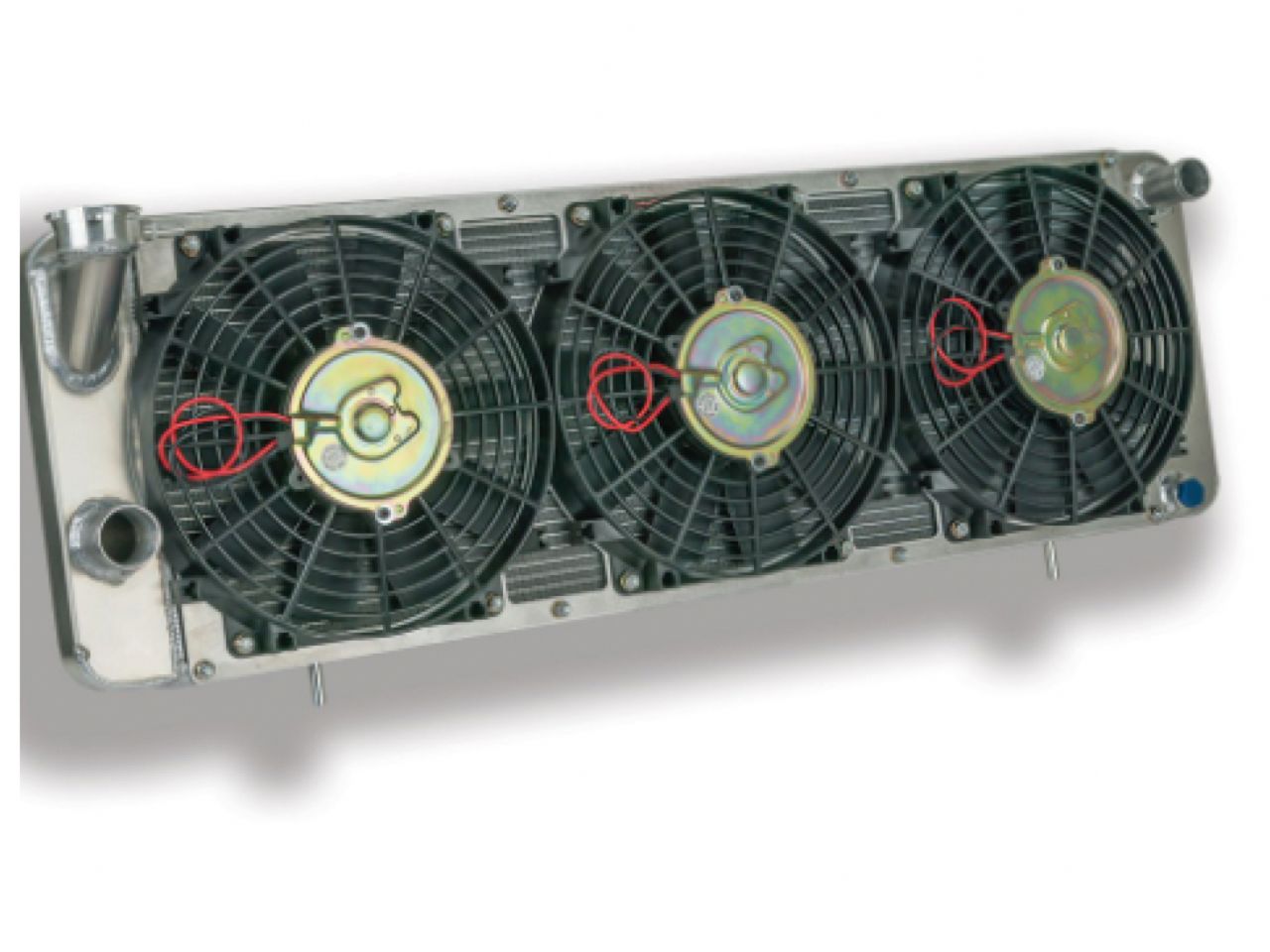

This direct-fit radiator is engineered to bolt into a 1984-2001 Jeep Cherokee XJ. No cutting or drilling is required for installation, and the radiator will mount using the factory location and equipment. Three electric fans come mounted to the radiator. The fans moves 2,400 cfm of airflow and includes a Variable Speed Controller, making this a complete unit, ready to install. Radiator includes 22-24 lbs. cap and train petcock.
Key features and benefits of the Flex-A-Lite® Extruded Tube Core Radiators include:

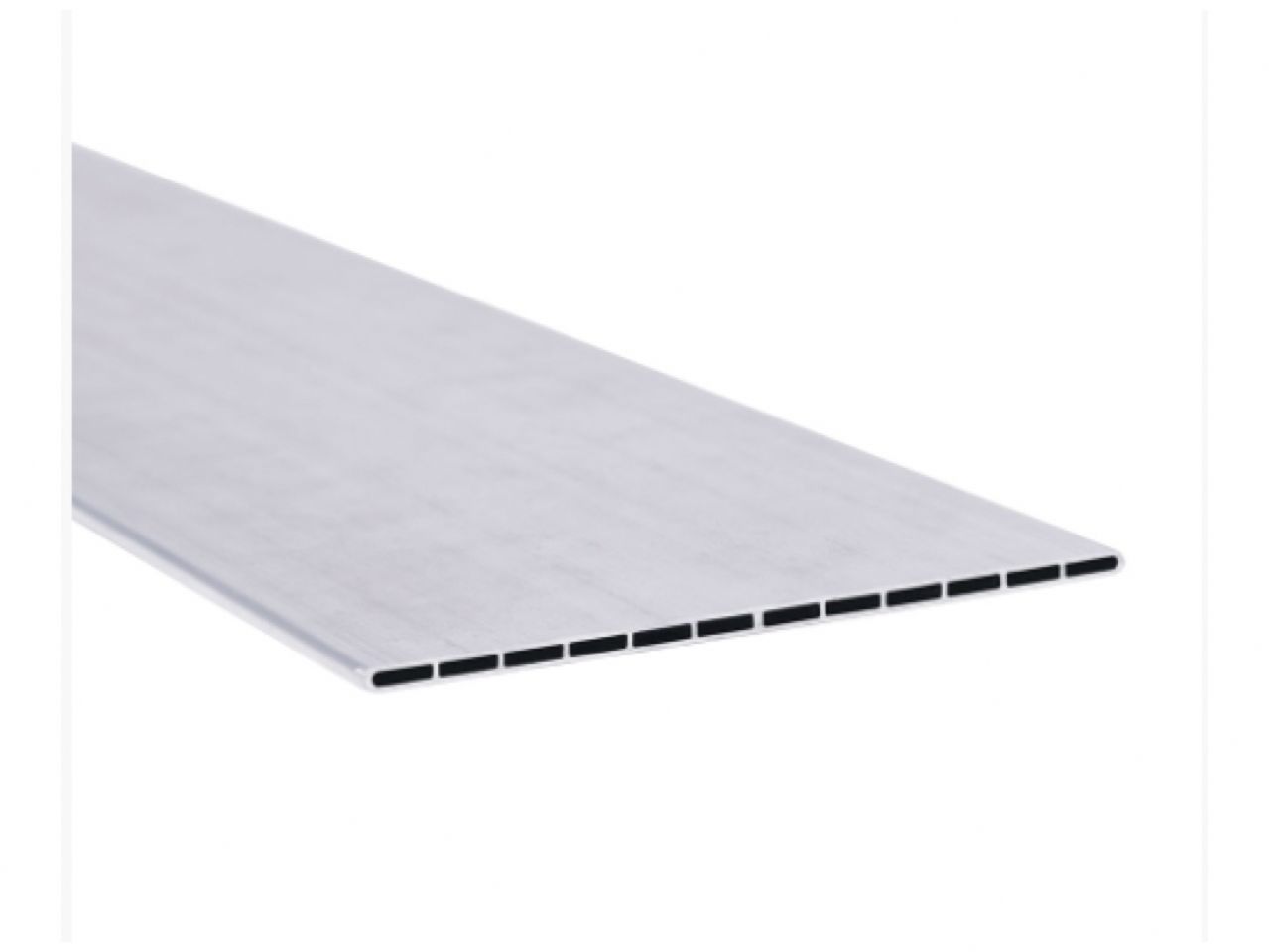

- Increased contact area between the coolant and aluminum tubes for better heat rejection and cooling
- A flat surface on which to braze the cooling fins, maximizing the contact between the tubes and fins for increased heat rejection and better cooling

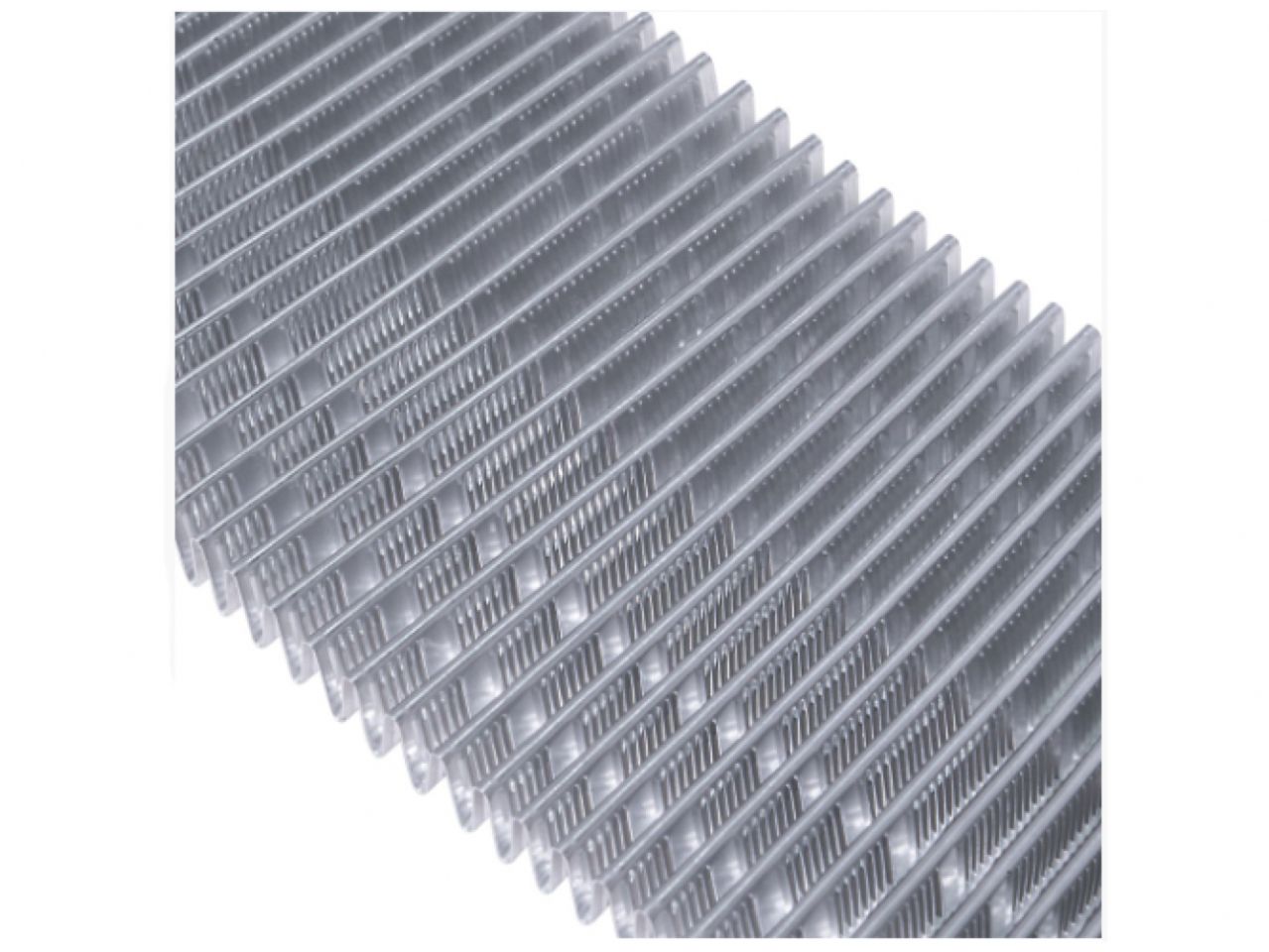

- The cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
- Wind-tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
- The Flex-A-Lite® Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
The Flex-A-Lite® Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection, an area prone to cracking and leaking in other brands of aluminum radiators.
Additional Information
Width (inches): 36
Depth (inches): 4.73
Depth (rounded up): 5 in.
Inlet Side: Passenger Side
Air Flow (cfm): 2,400
Fan Diameter (inches): Triple 10
Number of Blades: 10
Amperage Draw: 19.5
Fuse Rating (amp): 40
Year: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Make: CHEVROLET, GMC
Model: Sierra 1500
Engine: No
Displacement CID: No
Liters: No
Fitment Notes: No
