Flexalite Extruded Core Radiator & Electric Fan 1987-2006 Jeep Wrangler YJ & TJ
Flex-A-Lite® Extruded Core Technology is the future of performance aluminum radiators, replacing multi-core radiators with a new advanced design. Flex-A-Lite® Extruded Core Radiators provide significantly better cooling with a stronger, more durable and lighter design.

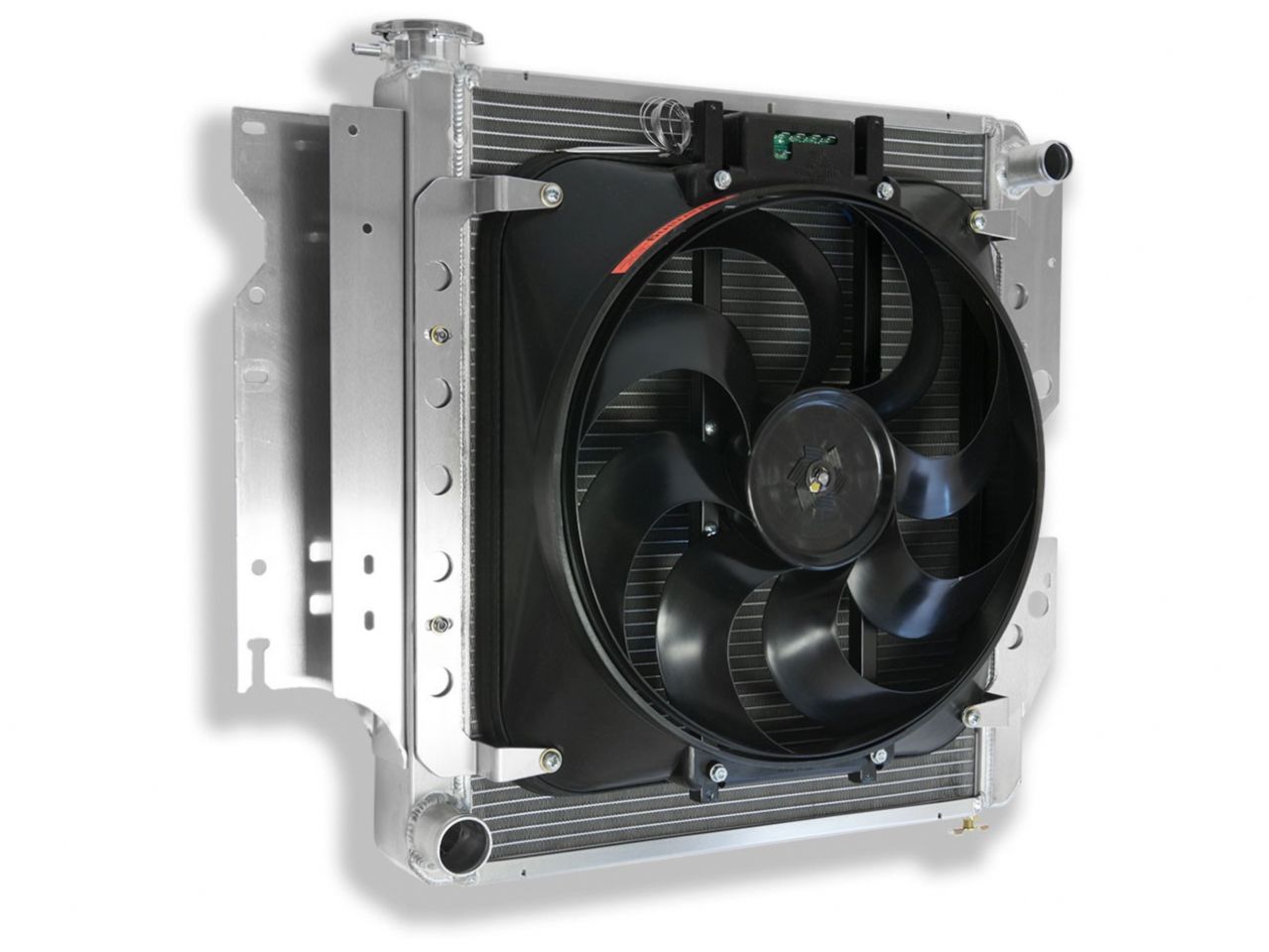

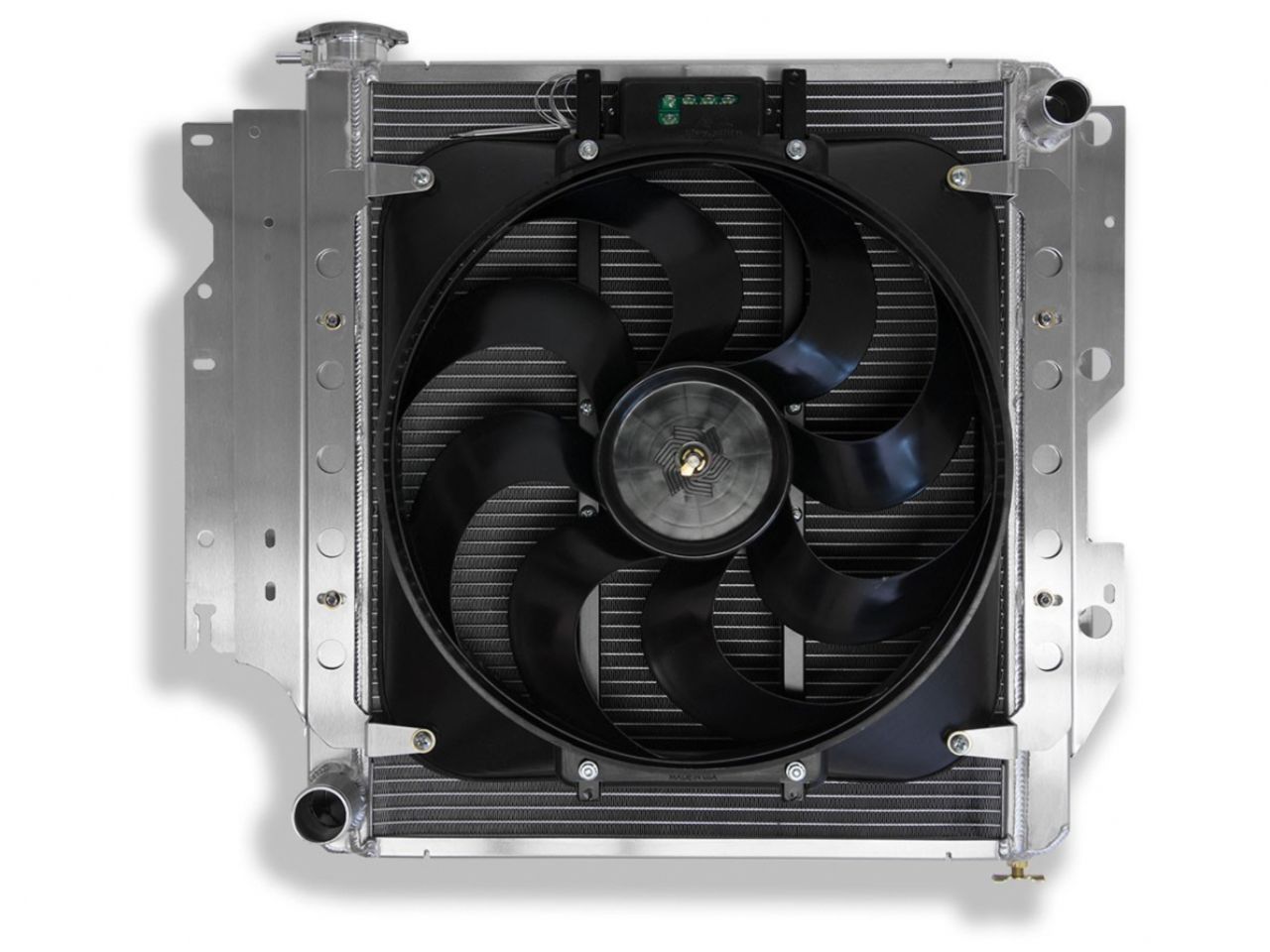

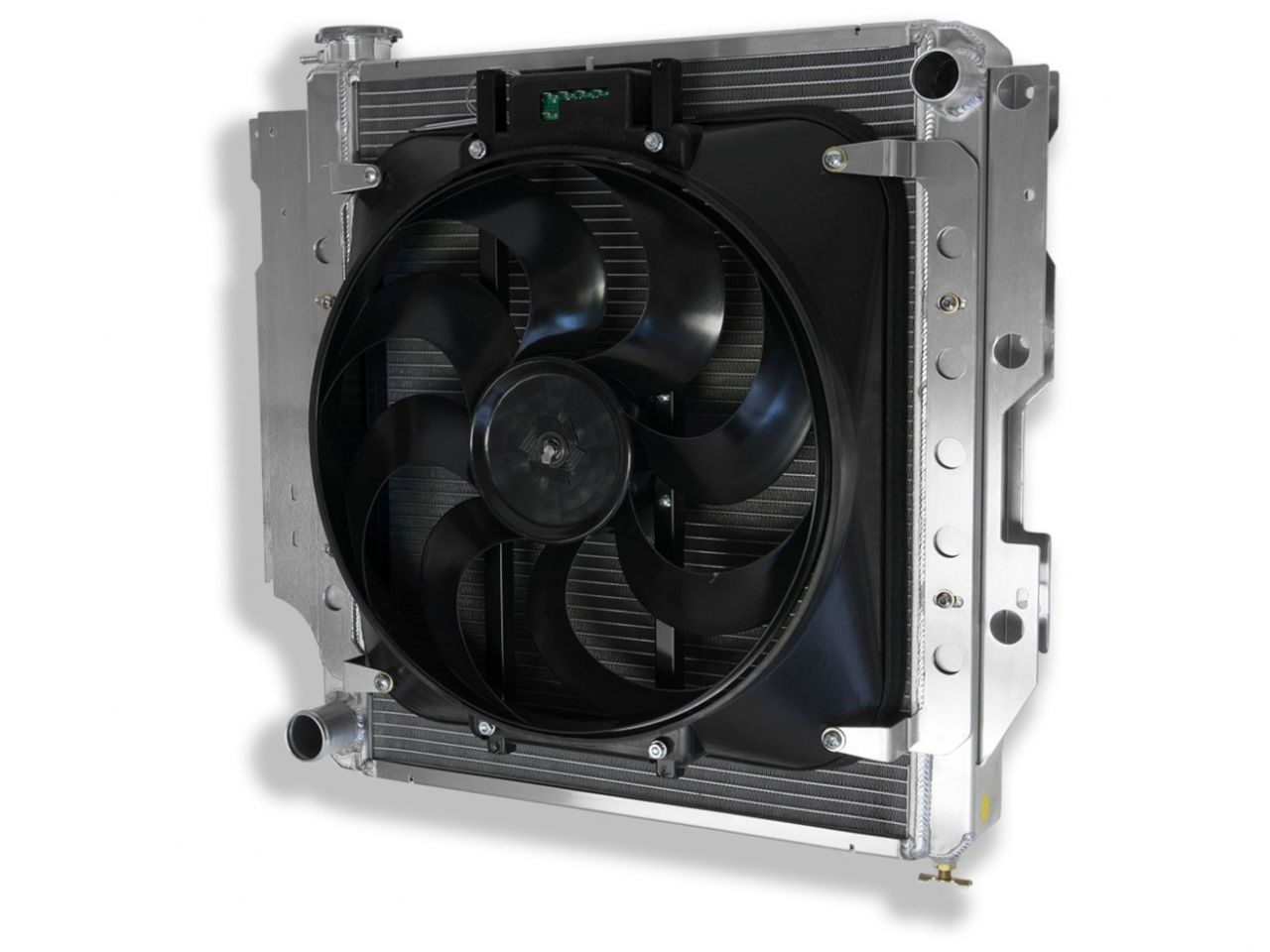

This direct-fit radiator is engineered to bolt into a 1987-2006 Jeep Wrangler YJ and TJ. No cutting or drilling is required for installation, and the radiator will mount using the factory location and equipment. A fully-shrouded Black Magic S-Blade electric fan comes mounted to the radiator. The fan moves 3,000 cfm of airflow and includes an Adjustable Thermostatic Controller, making this a complete unit, ready to install. Radiator includes 22-24 lbs. cap and train petcock.
Features:
- Increased contact area between the coolant and aluminum tubes for better heat rejection and cooling
- A flat surface on which to braze the cooling fins, maximizing the contact between the tubes and fins for increased heat rejection and better cooling

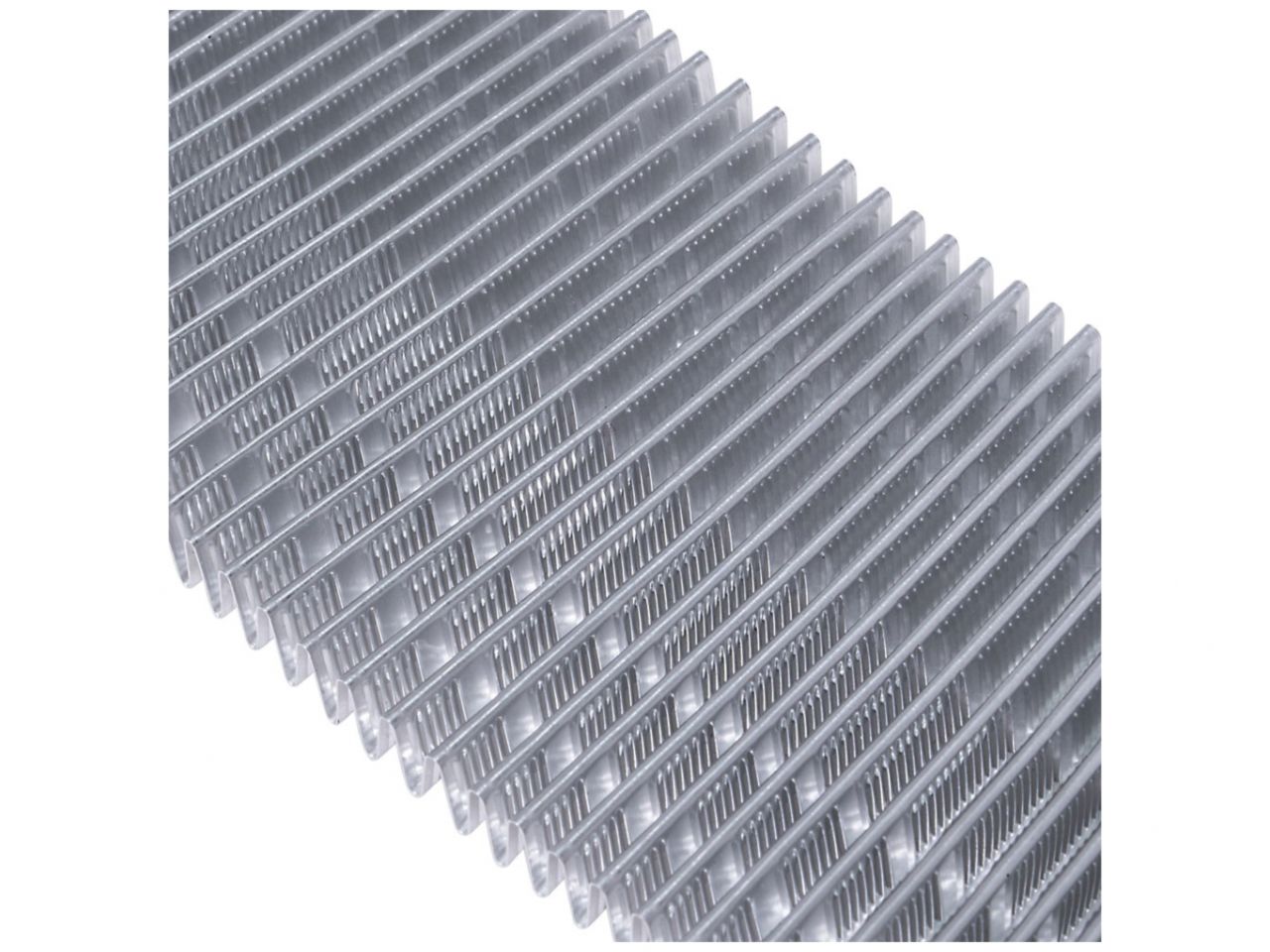

- The cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
- Wind-tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
- The Flex-A-Lite® Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
- The Flex-A-Lite® Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection, an area prone to cracking and leaking in other brands of aluminum radiators.
Specifications
Height (inches): 21.5
Width (inches): 20.58
Depth (inches): 6.47
Depth (rounded up): 7 in.
Inlet Side: Passenger Side
Air Flow (cfm): 3,000
Fan Diameter (inches): 15
Number of Blades: 8
Amperage Draw: 18
Fuse Rating (amp): 40
Year: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Make: Chevrolet, GMC
Model: Sierra 1500
