Richmond Excel Gears

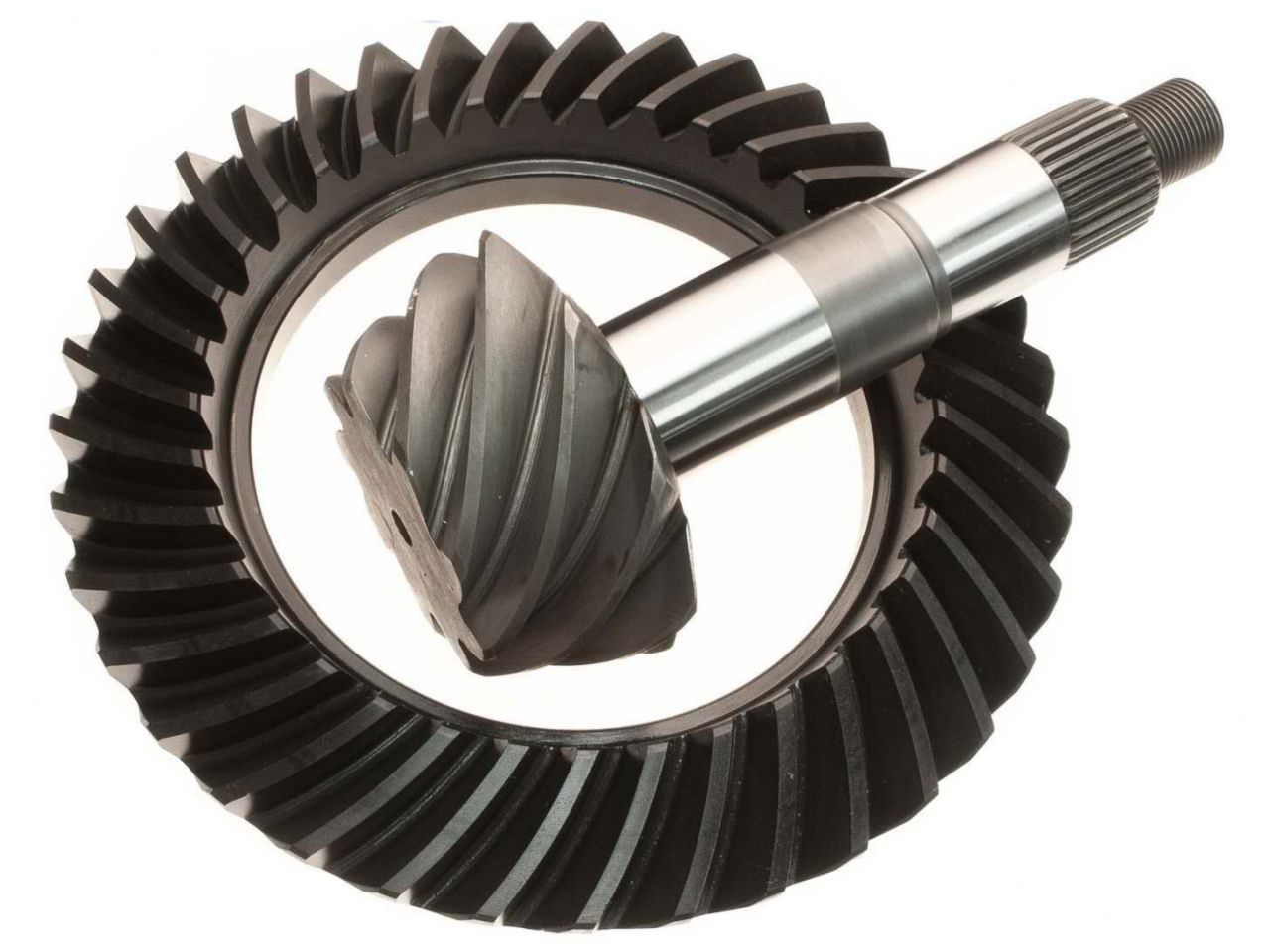

4.10 Ratio Differential Ring and Pinion for 8.875 (Inch) (12 Bolt)

Application notes:

• For GM 8.875" (12 Bolt)
• 4.10 Ratio
• 3.73 Ratio Carrier and Higher

Specifications

Cover Bolt Quantity : 12
Differential Carrier Break : 3.73 and Higher
Differential Case Design Type : GM 8.875 Truck
Pinion Gear Tooth Quantity : 10
Pinion Shaft Diameter : 1.438 (Inch)
Pinion Spline Count : 30
Ring & Pinion Gear Ratio : 4.10
Ring Gear Bolt Quantity : 12
Ring Gear Diameter : 8.875 (Inch)
Ring Gear Material : 8620 Steel
Ring Gear Rotation : Standard
Ring Gear Tooth Quantity : 41
Taxonomy : Differential LD, Ring and Pinion, GM 8.875 Truck
Title : Differential Ring and Pinion
