Richmond Excel Gears

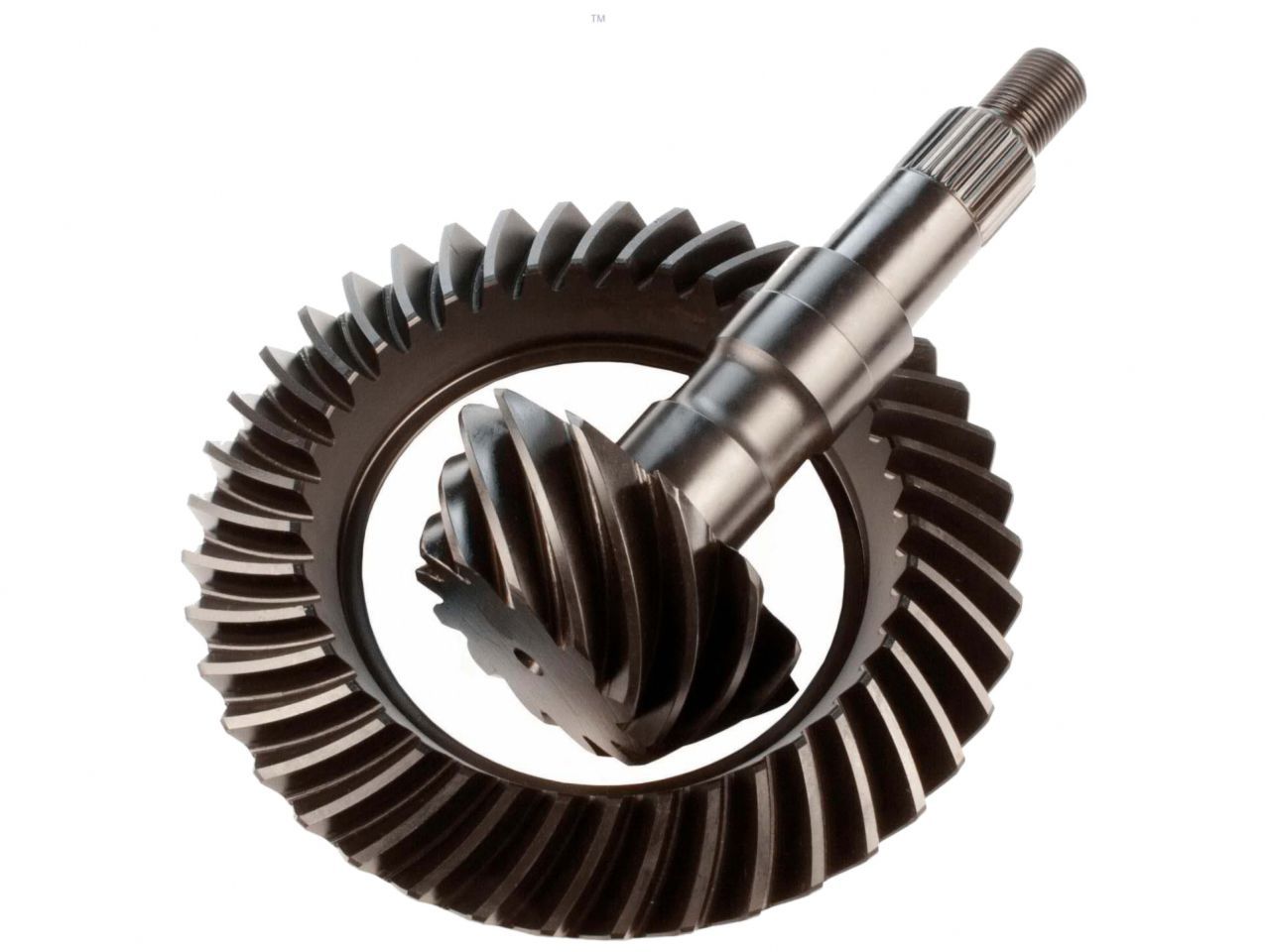

3.42 Ratio Differential Ring and Pinion for 8.5 (Inch) (10 Bolt)

Application notes:

• For GM 8.5"/8.625" (10 Bolt)
• 3.42 Ratio
• 2.73 Ratio Carrier and Higher

Specifications

Cover Bolt Quantity : 10
Differential Carrier Break : 2.73 and Higher
Differential Case Design Type : GM 8.5, GM 8.625
Pinion Gear Tooth Quantity : 12
Pinion Shaft Diameter : 1.626 (Inch)
Pinion Spline Count : 30
Ring & Pinion Gear Ratio : 3.42
Ring Gear Bolt Quantity : 10
Ring Gear Diameter : 8.5 (Inch)
Ring Gear Material : 8620 Steel
Ring Gear Rotation : Standard
Ring Gear Tooth Quantity : 41
Taxonomy : Differential LD, Ring and Pinion, GM 8.5/GM 8.625
Title : Differential Ring and Pinion
