Richmond Excel Gear

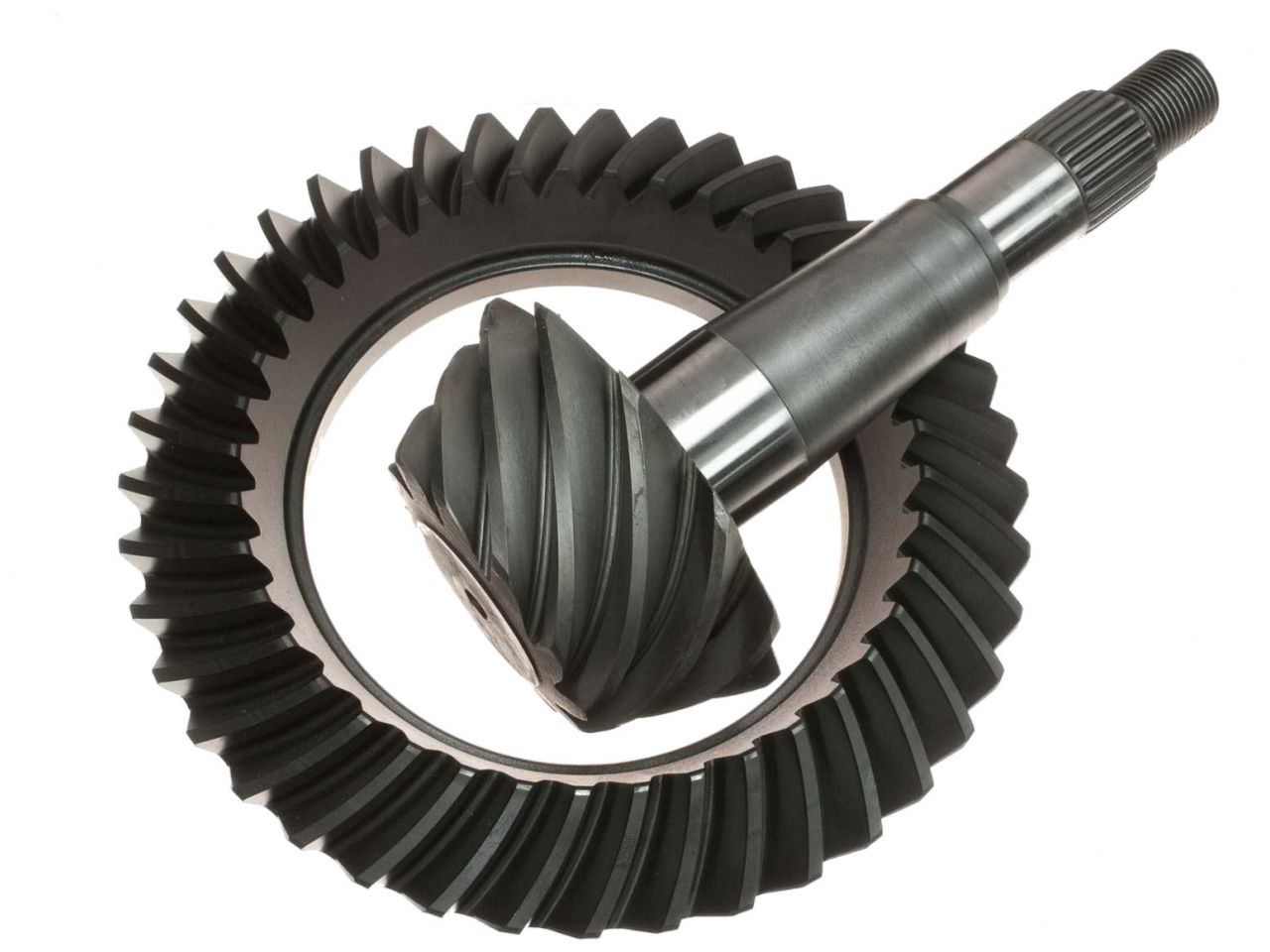

3.55 Ratio Differential Ring and Pinion for 8.25 (Inch) (10 Bolt)

Application notes:

• For Chrysler 8.25", 8.375" (C213R/E)
• 3.55 Ratio
• 2.71 Ratio Carrier and Higher
• Dual Drilled for 3/8" and 10mm

Specifications

Cover Bolt Quantity : 10
Differential Carrier Break : 2.71 and Higher
Differential Case Design Type : Chrysler 8.25, Chrysler 8.375
Pinion Gear Tooth Quantity : 11
Pinion Shaft Diameter : 1.626 (Inch)
Pinion Spline Count : 27
Ring & Pinion Gear Ratio : 3.55
Ring Gear Bolt Quantity : 10
Ring Gear Diameter : 8.25 (Inch)
Ring Gear Material : 8620 Steel
Ring Gear Rotation : Standard
Ring Gear Tooth Quantity : 39
Taxonomy : Differential LD, Ring and Pinion, Chrysler 8.25
Title : Differential Ring and Pinion
