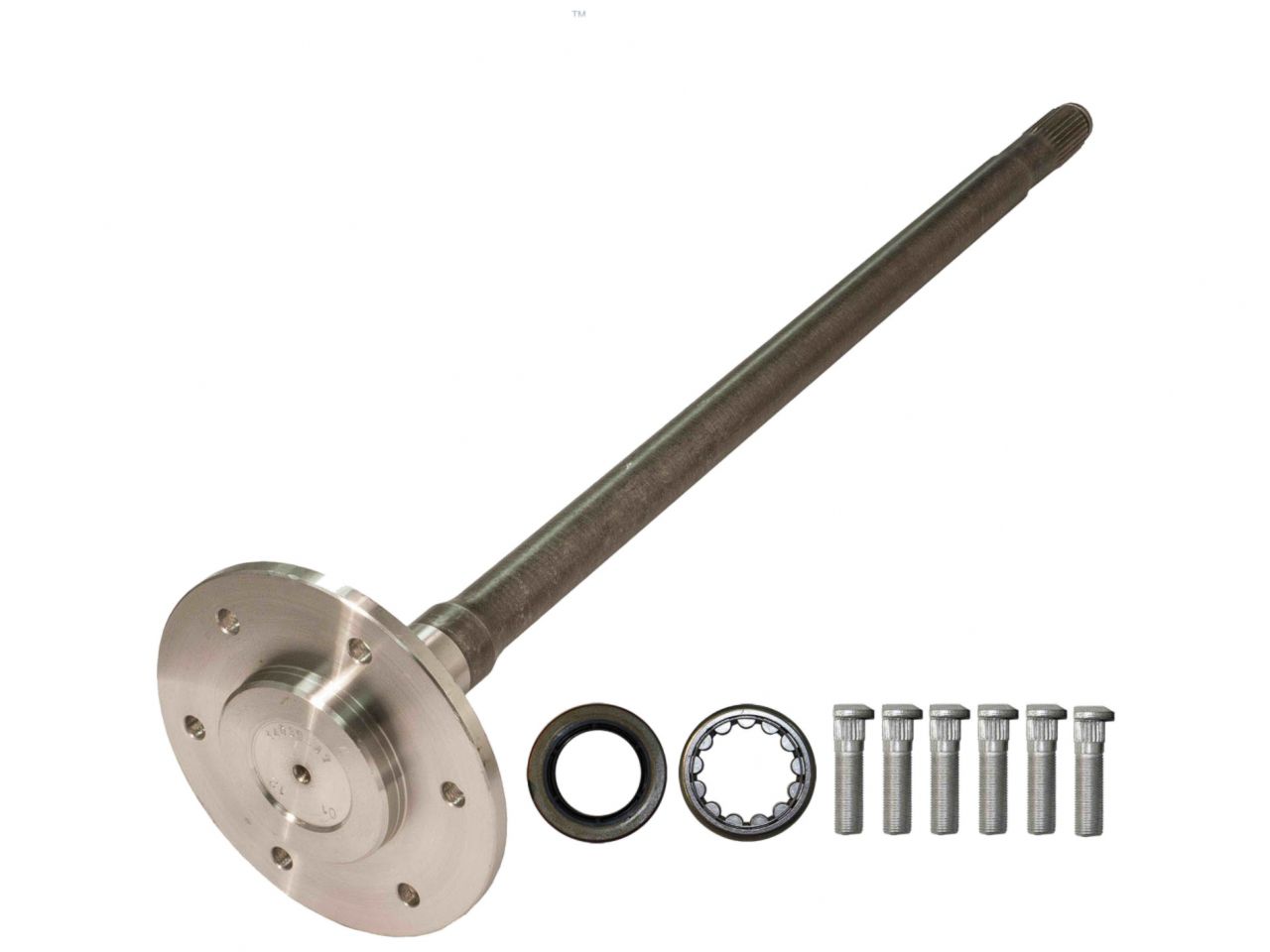

Richmond Excel Axle Kit

Axle Shaft Assembly

Application notes:

• For GM 8.5" (10 Bolt)
• 31.313" Overall Length
• 6 x 5.5 Lug Pattern
• 28 Spline
• Includes Bearing, Seal And Studs

Specifications

Axle Length : 31.5 (Inch)
Axle Material : 1541 Manganese
Differential Case Design Type : GM 8.5
Inboard Spline Quantity : 28
Taxonomy : Differential LD, Axle Shafts, GM 8.5
Title : Axle Shaft
Wheel Bolt Pattern Size : 6 x 5.5 (Inch)
