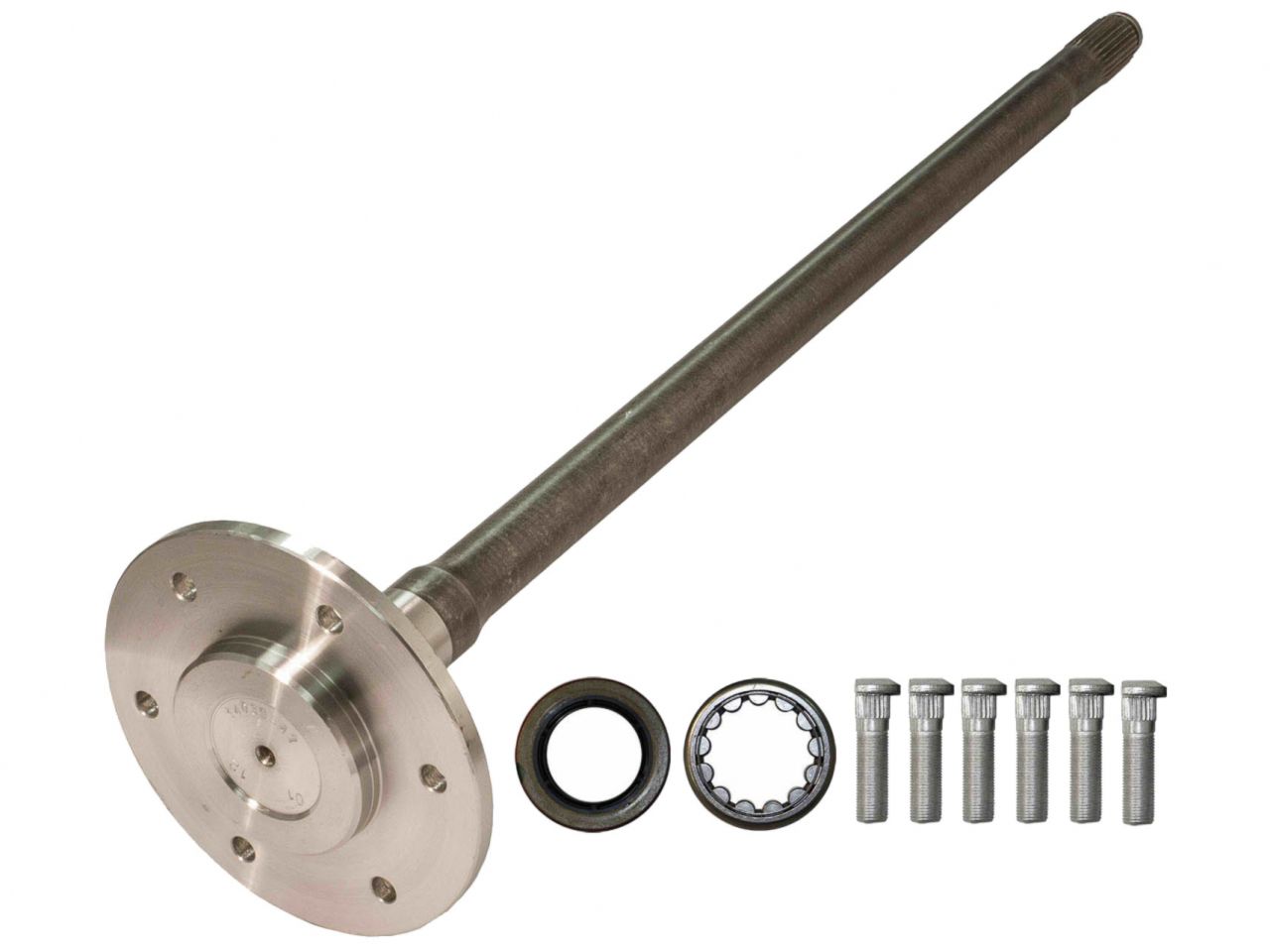

Richmond Excel Axle Kit

Axle Shaft Assembly

Application notes:

• For GM 8.5"/8.625" (10 Bolt)
• 33" Overall Length
• 6 x 5.5 Lug Pattern
• 30 Spline
• 2.79" Bearing OD
• Stud 1.69" Long, .625" Diameter
• Includes Bearing, Seal And Studs

Specifications

Axle Length : 33 (Inch)
Axle Material : 1541 Manganese
Differential Case Design Type : GM 8.5, GM 8.625
Inboard Spline Quantity : 30
Taxonomy : Differential LD, Axle Shafts, GM 8.5/GM 8.625
Title : Axle Shaft
Wheel Bolt Pattern Size : 6 x 5.5 (Inch)
