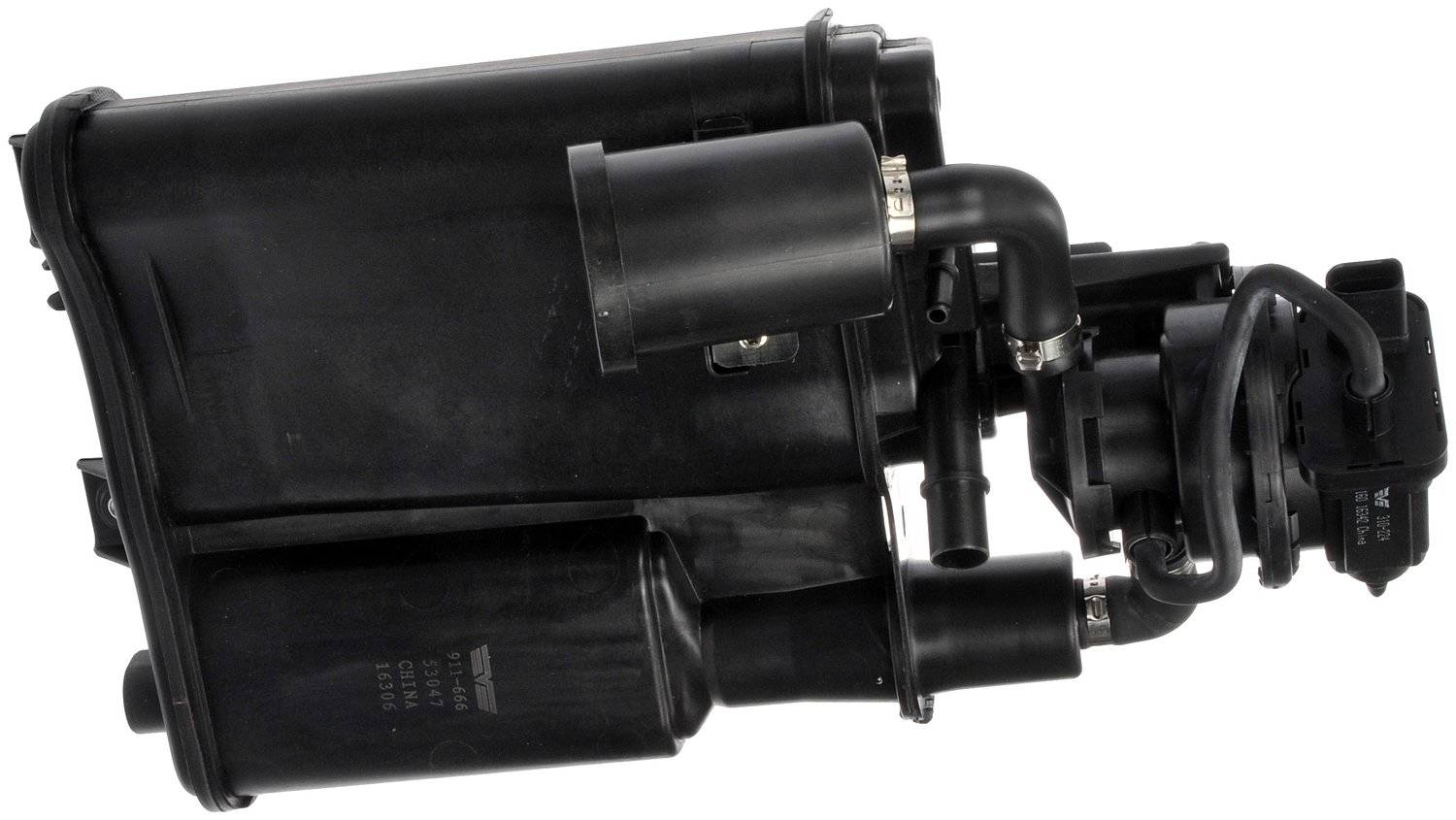

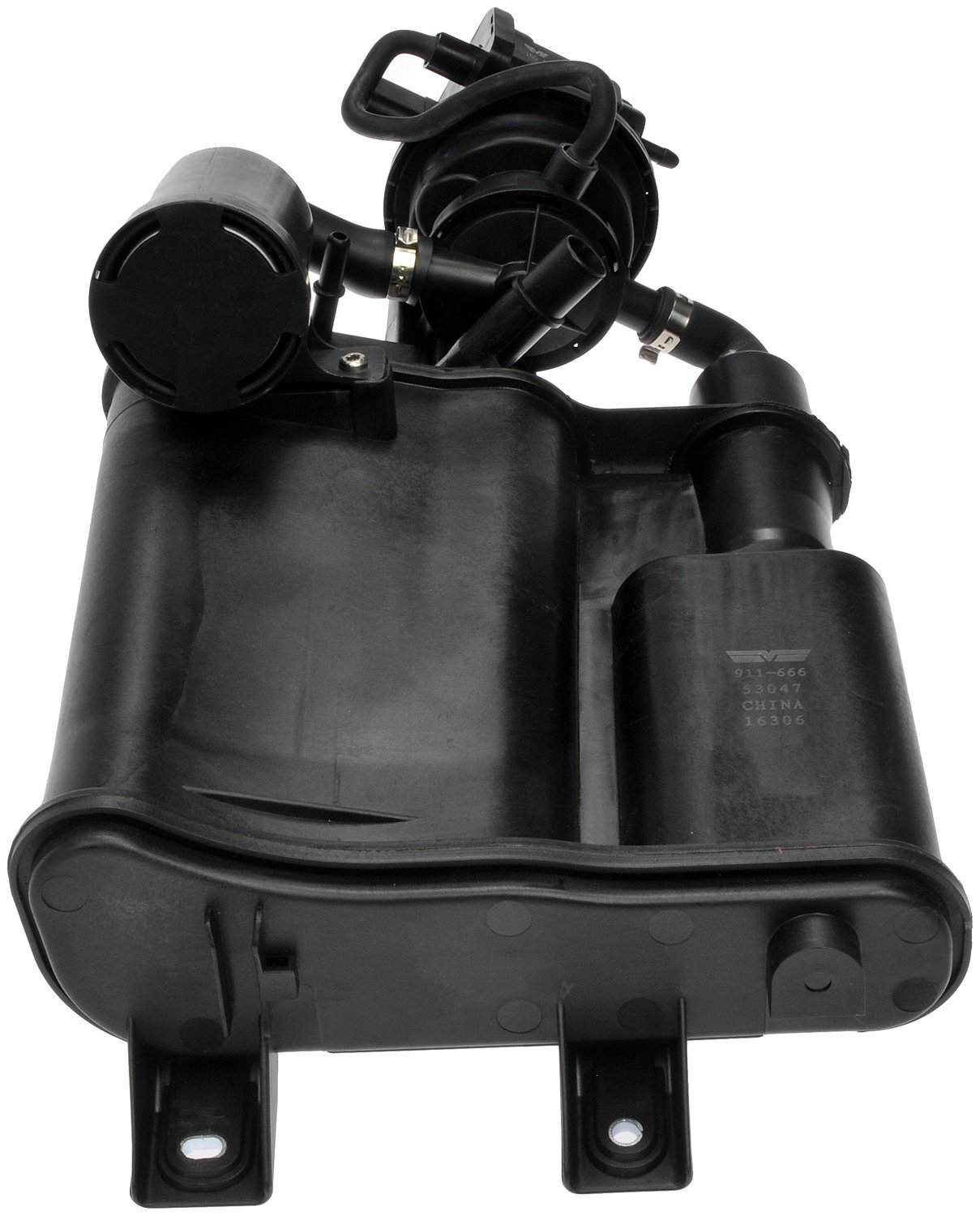

Dorman Evaporative Emissions Charcoal Canister

Dorman's Vapor Canister is engineered from robust materials. As part of the Evap system, it effectively stores fuel vapors from the gas tank and sends them to the engine for combustion. Replacement helps control hydrocarbon emissions from escaping into the environment.

• Direct replacement for a proper fit
• A necessary replacement item for passing inspection in certain states
• Replacement clears the "check engine" light
• Rigorous on-vehicle and bench testing have been undertaken to ensure trouble-free performance

Product Specifications

Color/Finish: Black
Connector Gender: Female
Connector Material: Plastic
Connector Quantity: 1
Connector Shape: Rectangle
Filter Element Included: Yes
Filter Element Material: Charcoal
Hose Inside Diameter (in): 0
Housing Material: Plastic
Length: 19.25 In.
Mounting Hardware Included: No
Package Contents: 1 Vapor Canister, 1 Leak Detection Pump
Package Quantity: 1
Packaging Type: Box
Port Outside Diameter: 0.25 In.; 0.313 In.; 0.72 In.
Port Quantity: 3
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Blade

Application Summary: Volkswagen CC 2017-12, Volkswagen Passat 2011-06, Volkswagen Passat CC 2012-09

Vehicle Fitments:
