Radium Engineering 2017+ Honda Civic Type-R Port Injection Kit

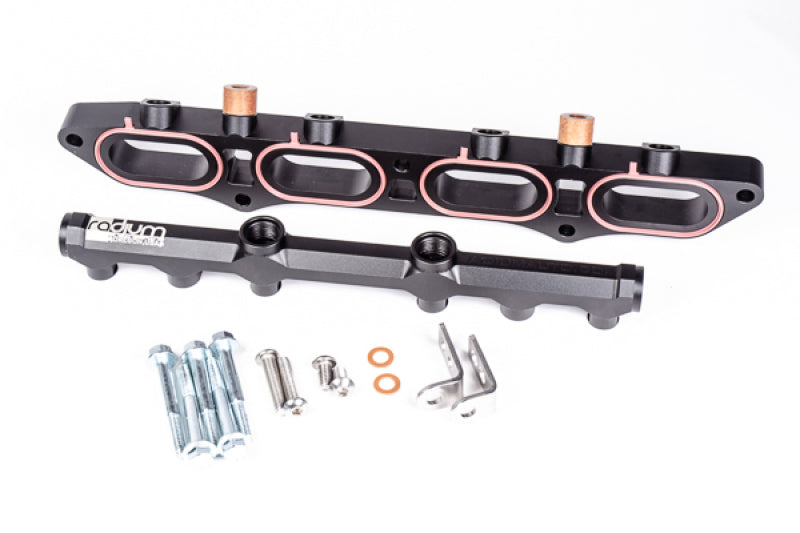

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower modified K20C1 engines, commonly found in the FK8 Civic Type-R. This does NOT replace the OEM direct injection system. The kit includes the PIK adapter plate, custom fuel rail, fuel rail mounting hardware, and OEM Honda gaskets, as shown in the below picture. It is compatible with all fuel types including popular alcohol mixtures such as E85.
The fuel rail features a large 0.63" internal diameter bore. It is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. All 4 ports are machined with an 8AN ORB (3/4-16 female) threads. Note that the 2 top fuel rail ports will need to be plugged with 14-0150 unless the plastic OEM wiring harness carrier is modified (see below). For a list of all 8AN ORB adapter fittings
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2018 | Honda | Civic | Coupe, SE |
2017 - 2020 | Honda | Civic | EX, Touring, DX, Sport, Si, LX, Sport Touring, Type R, Turbo Plus, EX-L |
2017 - 2018 | Honda | Civic | EX-T, LX-P |
2018 - 2020 | Honda | Civic | i-Style |
2019 - 2020 | Honda | Civic | Sport Plus |
2017 | Honda | Civic | Turbo |
