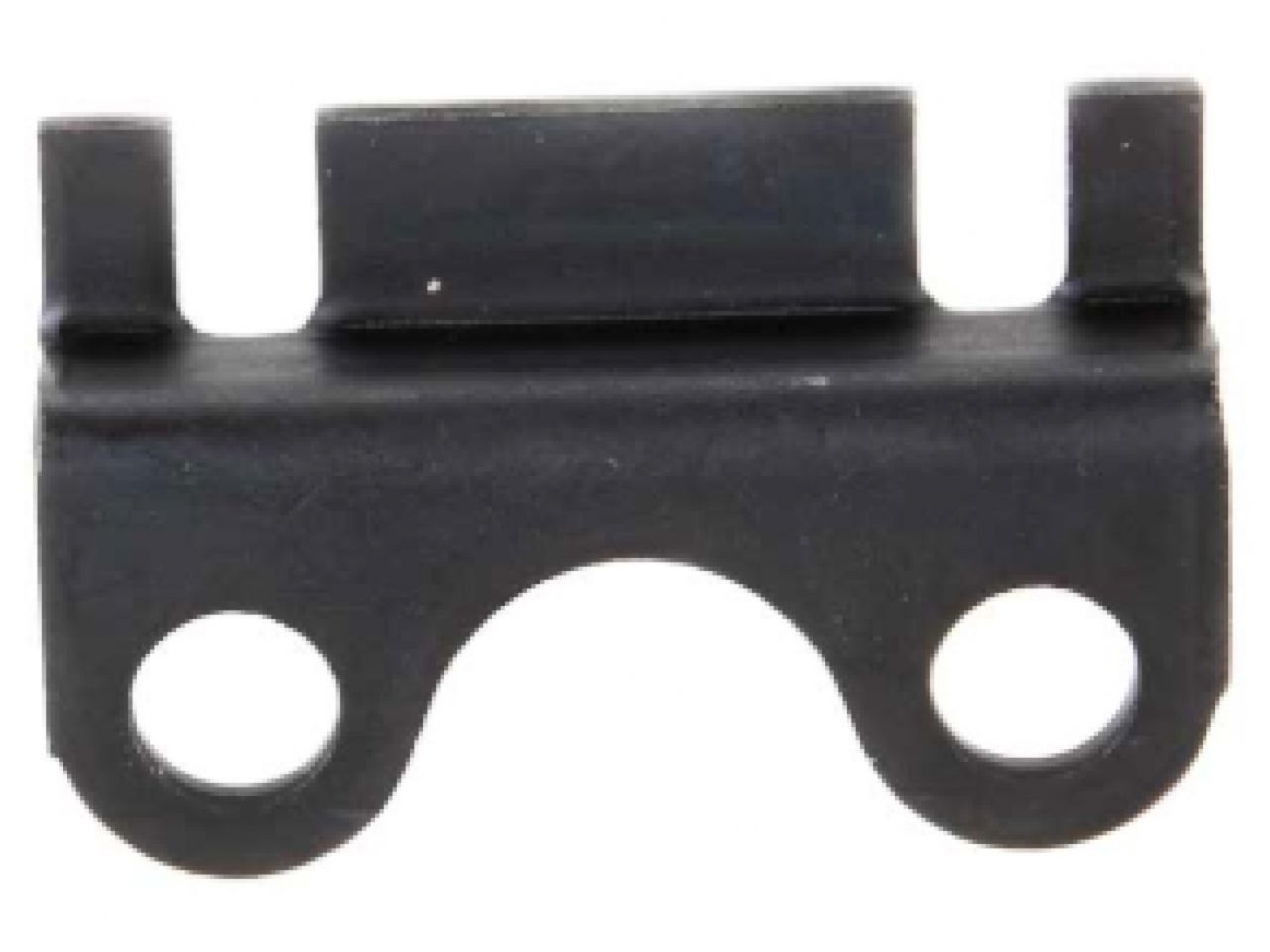

Melling Engine Push Rod Guide Plate

Melling lists several GM and Ford guide plate applications as a part of the Melling select program. Melling
select guide plates are manufactured from high quality heat treated steel to reduce flexing. Each guide plate
is black oxide coated to prevent rusting. Melling select guide plates must be used with screw in rocker arm
studs.

Product Attributes:

Color: Black
Grade Type: Performance
Length: 1.687 in
Length: 42.85 mm
Material: Steel
Mounting Hole Diameter: .455 in
Mounting Hole Diameter: 11.57 mm
Mounting Hole Quantity: 2
Pushrod Slot Width: 0.33 in
Pushrod Slot Width: 8.35 mm
Thickness: .129 in
Thickness: 3.28 mm
Width: 2.624 in
Width: 66.65 mm
