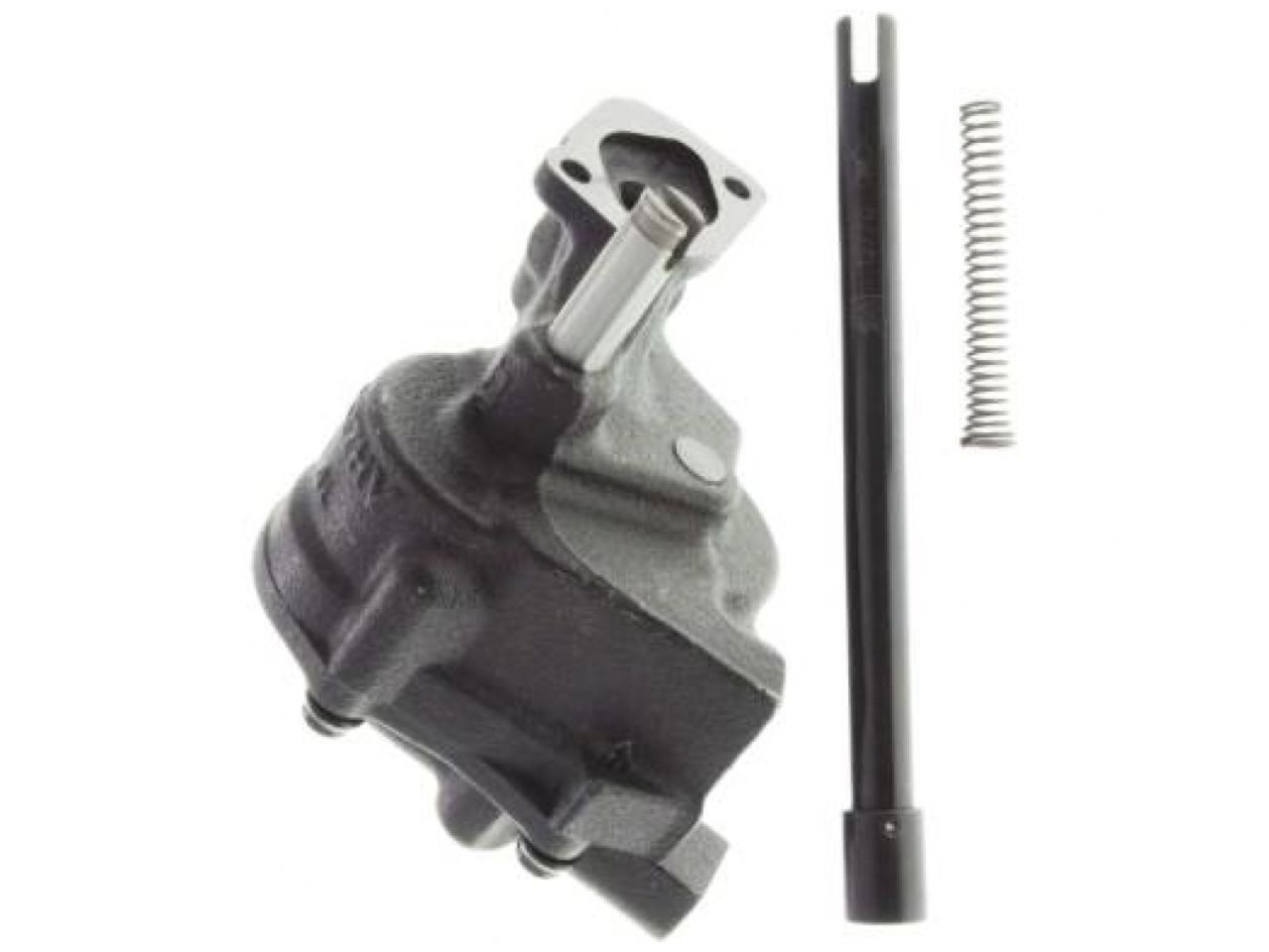

Melling Engine Oil Pump

Melling high performance anti-cavitation oil pumps provide dependable performance every time in every
application under the toughest RPM conditions. The Melling high performance anti-cavitation oil pump
features a doweled cast iron housing and cover with additional machined anti-cavitation grooves, extended
drive and idler shafts for additional support at increased RPM’s, screw in relief spring plug, a CNC machined
cover and housing that is manganese phosphate coated, self locking socket head bolts includes wrench,
billet steel gears, and a chrome moly drive shaft with steel guide. Includes lower pressure spring to reduce
pressure. Every Melling high performance oil pump is individually tested for pressure and flow under actual
engine operating conditions. Melling high performance anti-cavitation oil pumps are for racing applications
only and are not recommended for street use.

Product Attributes:

Gasket Or Seal Included: No
Grade Type: Performance
Housing Material: Cast Iron
Mounting Hole Quantity: 2
Oil Pump Type: Gear
Pick Up Tube Diameter: 0.75 in
