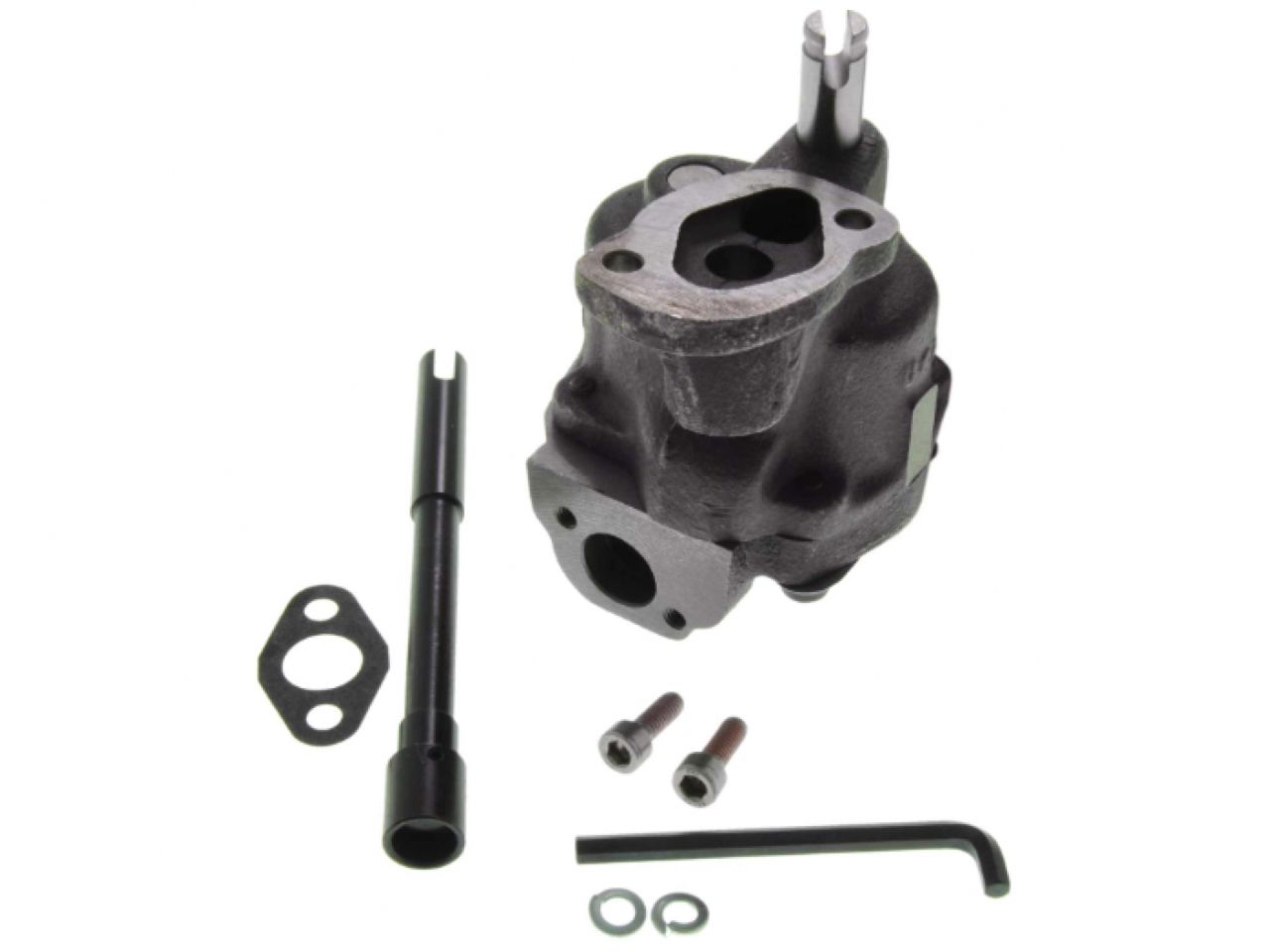

Melling Engine Oil Pump

Melling high performance oil pumps provide dependable performance every time in every application under
the toughest RPM conditions. The Melling high performance cast iron oil pump series features a doweled
housing and cover, extended drive and idler shafts for additional support at increased RPM’s, a screw in
relief spring plug, CNC machined cover and housing that is manganese phosphate coated, standard volume
and high volume patented billet Shark Tooth gears, and a chrome moly drive shaft with steel guide.
Includes lower pressure spring and self locking socket head bolts with wrench for use with bolt on screen
pumps. Every Melling high performance oil pump is individually tested for pressure and flow under actual
engine operating conditions. Melling high performance Shark Tooth oil pumps are recommended for all
applications where a high performance oil pump is needed.

Product Attributes:

Gasket Or Seal Included: Yes
Grade Type: Performance
Housing Material: Cast Iron
Mounting Hole Quantity: 2
Oil Pump Type: Gear
Pick Up Tube Diameter: 0.75 in
