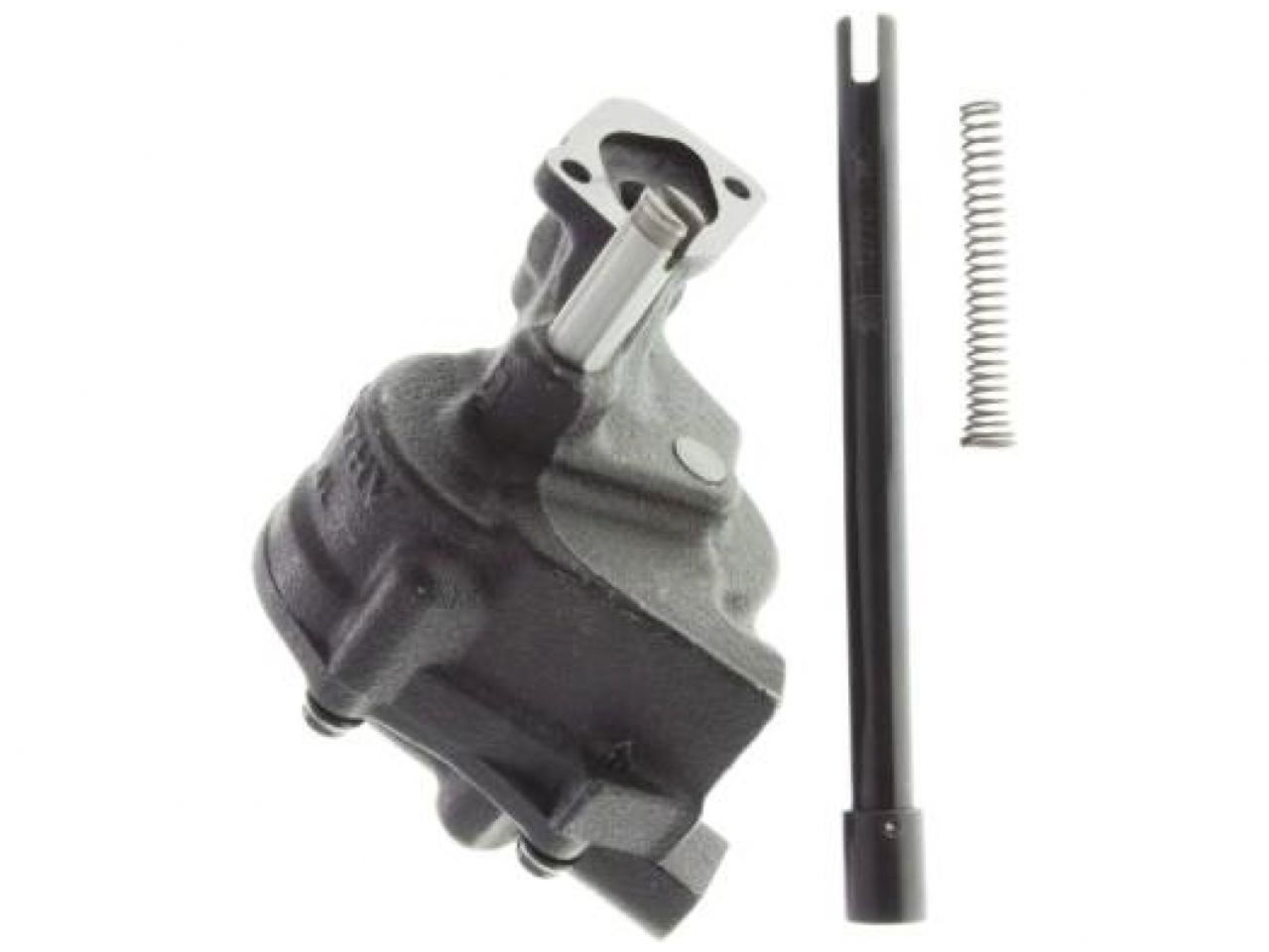

Melling Engine Oil Pump

Melling high performance oil pumps provide dependable performance every time in every application under
the toughest RPM conditions. High volume performance upgrade for the 10770. Increase in volume of 25%
over stock oil pump. The drive shaft has been manufactured from chrome-moly steel. The drive and idler
shafts have been extended to allow for additional support in the cover. Additional support eliminates
dynamic shaft deflection at increased RPM levels. The cover is doweled to the pump housing to assure
alignment of the shaft bores. The relief valve has a screw-in plug instead of a pin. The housing and cover
are CNC machined and phosphate coated. An additional spring, the original stock replacement is supplied
which will reduce bypass pressure if needed. Includes 12770 chrome moly intermediate shaft with steel
guide. Built with billet steel gears. Every Melling high performance oil pump is individually tested for
pressure and flow under actual engine operating conditions.

Product Attributes:

Gasket Or Seal Included: No
Grade Type: Performance
Housing Material: Cast Iron
Mounting Hole Quantity: 2
Oil Pump Type: Gear
Pick Up Tube Diameter: 0.75 in
