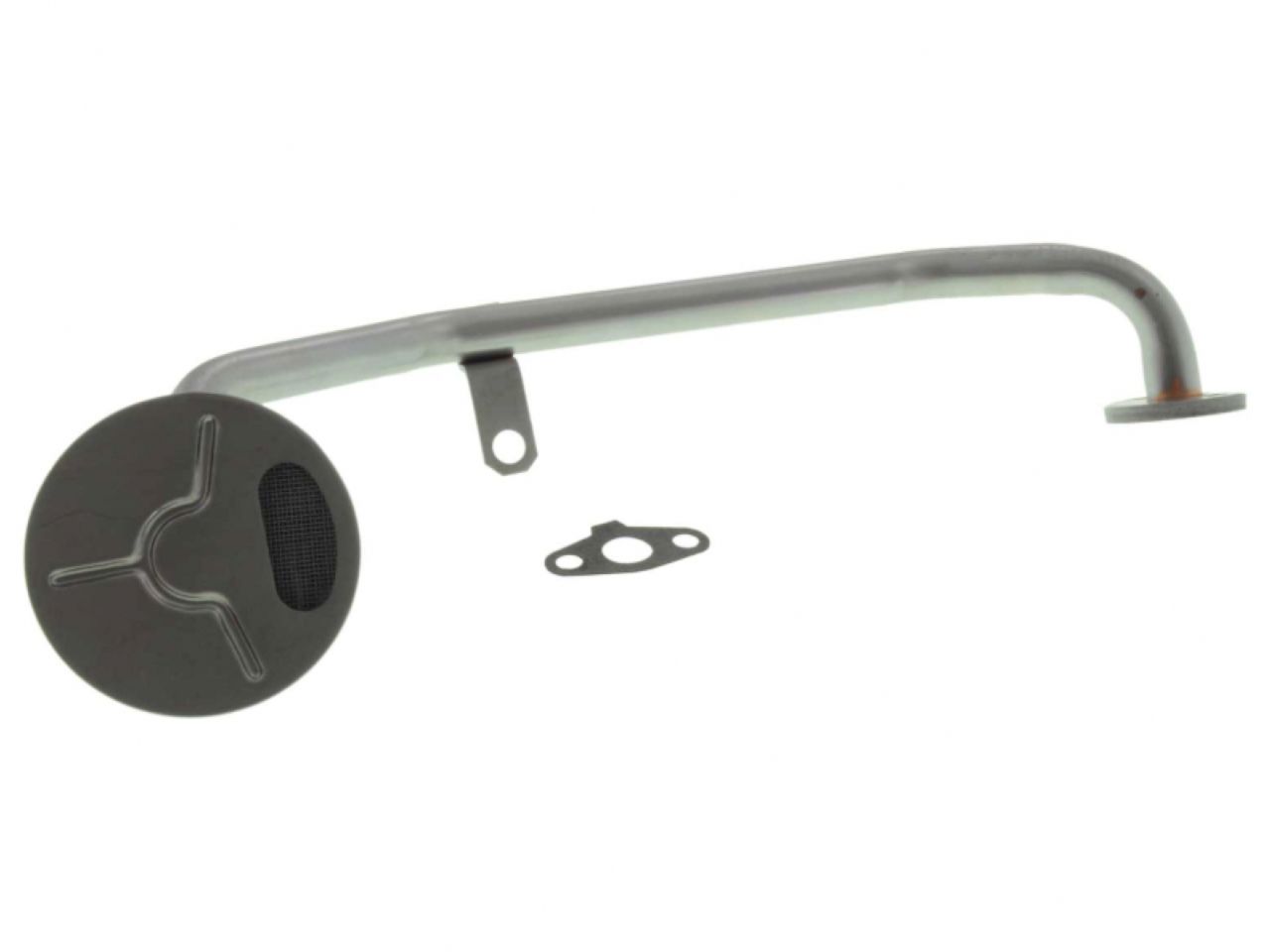

Melling Engine Oil Pump Pickup Tube and Screen

A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil
pump from materials that find their way into the engine oil supply system. Contaminates enter your oil
system via engine wear, extended time between oil changes and other internal engine sources. These
contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine
damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a
part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen
included.

Product Attributes:

Flange Mount Hole Quantity: 2
Flanged End: Yes
Gasket Or Seal Included: Yes
Mounting Hardware Included: No
Screen Material: Galvanized Steel
Tube Inside Diameter: 0.60 in
Tube Inside Diameter: 15.24 mm
Tube Material: Galvanized Steel
Tube Shape: Straight
