Flexalite Engine Oil Cooler, 11" X 14" X 1-1/2", 40 Row, 7/8-14 UNF, 2 X 6.5"

Efficiency, modern design, maximum performance - the new Flex-A-Lite line of engine-oil coolers bring performance cooling to demanding engine applications.

The new Flex-A-Lite engine oil coolers provide up to 4 times the heat rejection compared to typical low-cost coolers. In harsh conditions, engine-coolant alone isn't enough to protect the engine oil and internal components from premature wear or failure. The new Flex-A-Lite engine oil coolers use turbulized fins inserted into the internal cooling plates and louvered fins for heat transfer to the air. The thick, 13/4-inch core minimizes oil-pressure drop through the cooler while maximizing heat transfer.

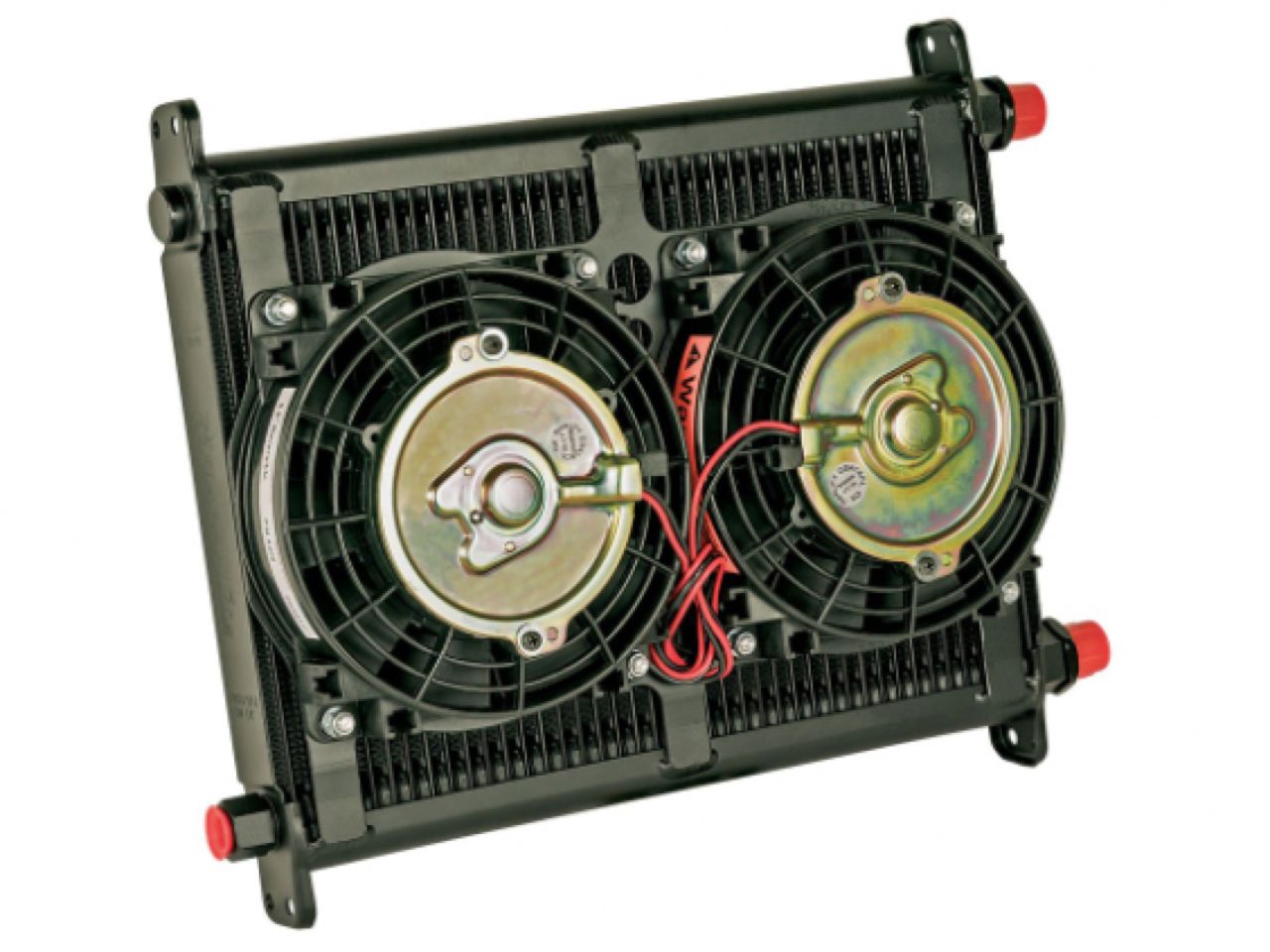

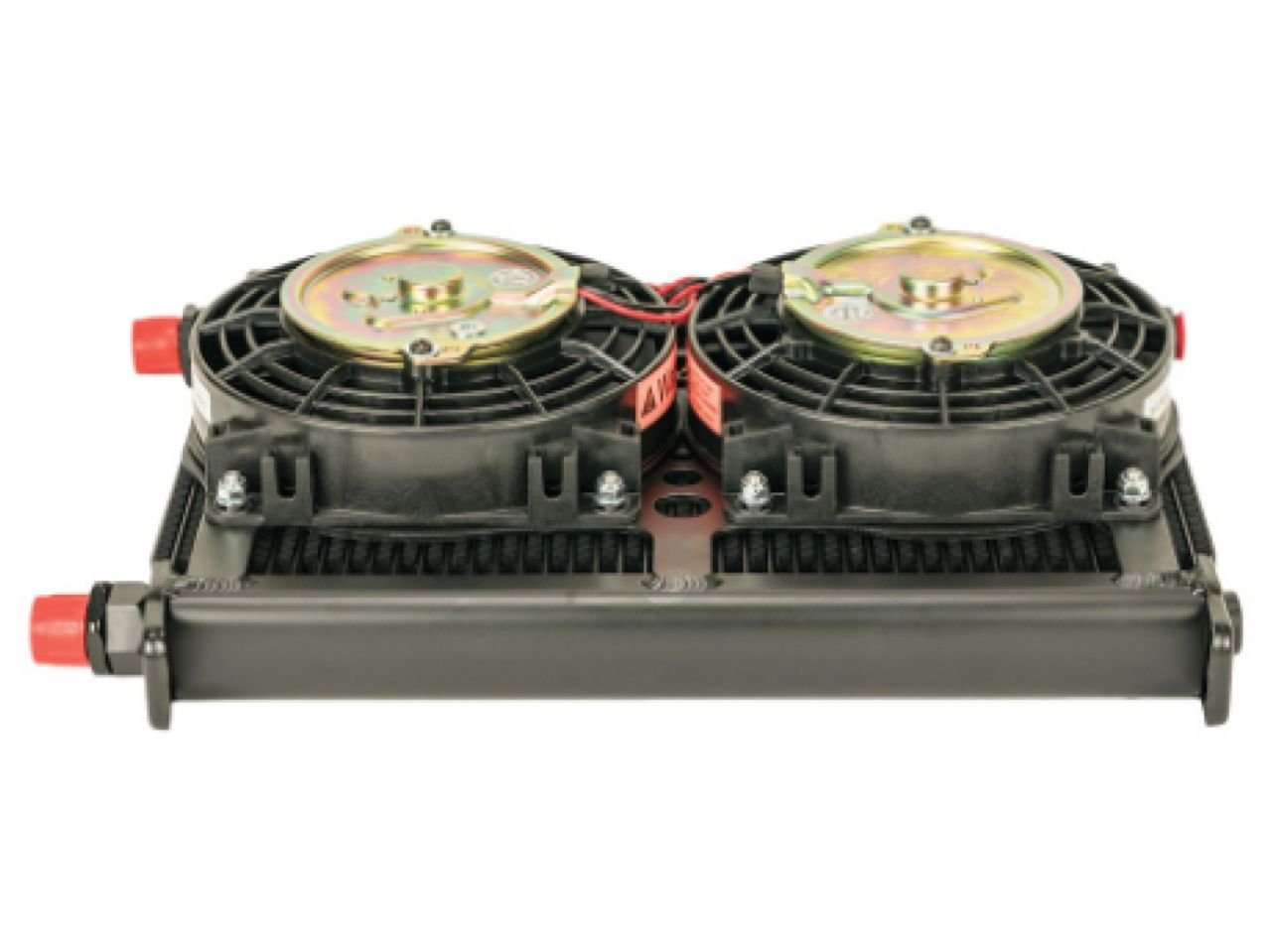

This Flex-A-Lite stacked-plate, 40-row engine-oil cooler is designed for remote mounting and comes two 6.5-inch electric fans mounted. It measures 11 x 14 x 4 1/4 inches and includes -8, -10 and -12 interchangeable AN fittings with O-rings.

Additional Information

Height (inches): 14
Width (inches): 11
Depth (inches): 4 1/4
Depth (rounded up): 5 in.
Air Flow (cfm): 600
Fan Diameter (inches): TWO 6-INCH FANS
Number of Blades: No
Amperage Draw: No
Fuse Rating (amp): No
Year: No
Make: No
Model: No
Engine No
Liters No
Displacement CID: No
Fitment Notes: No
