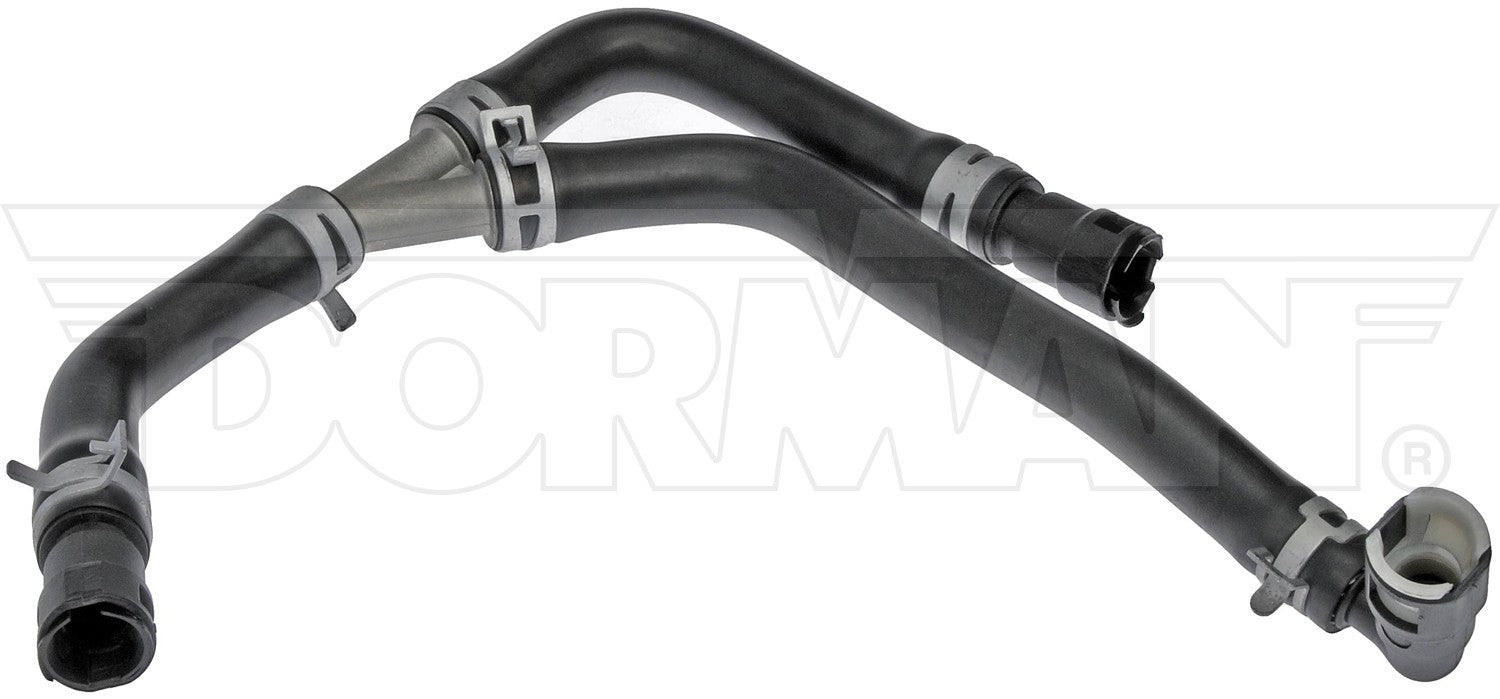

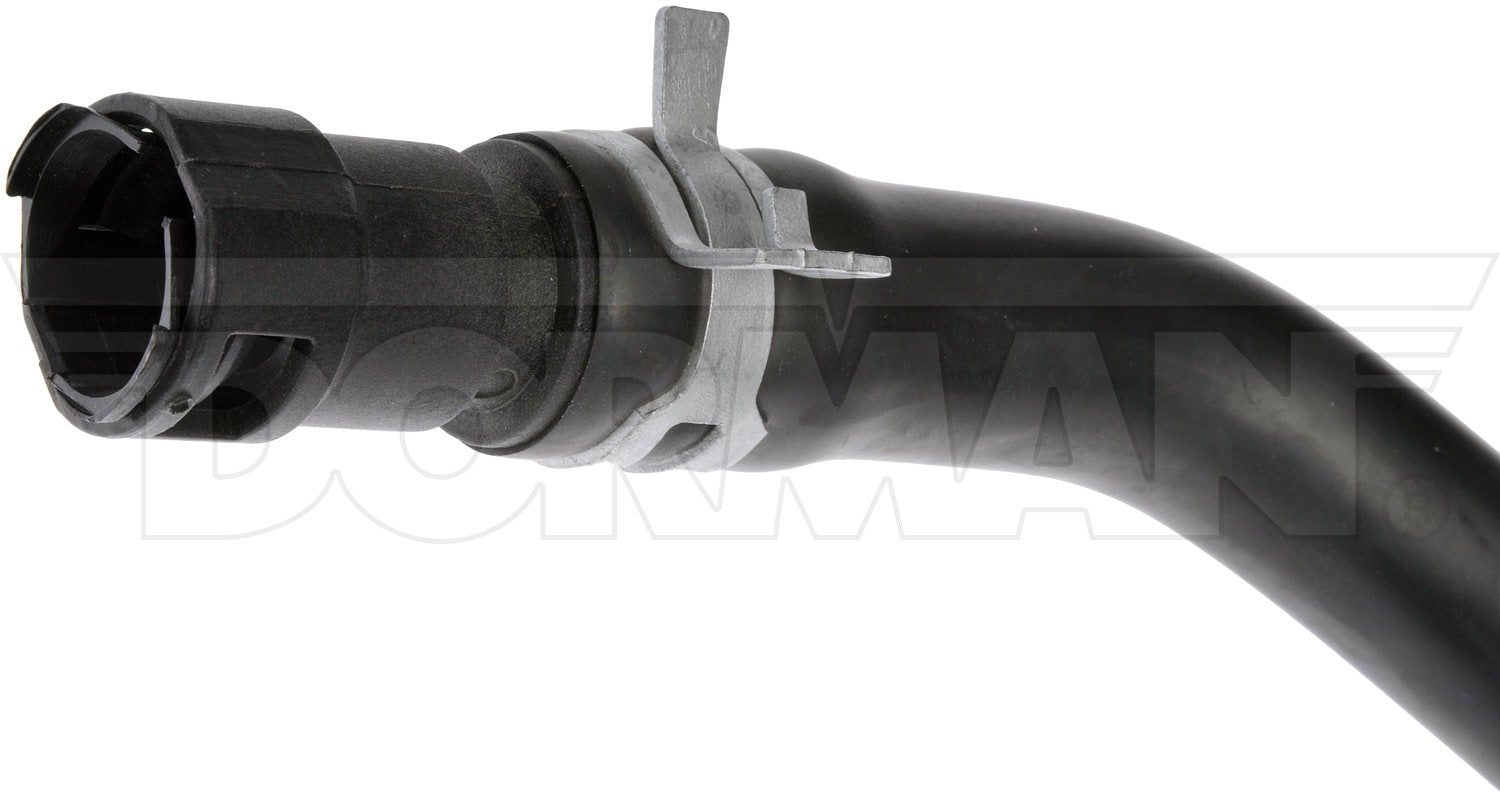

Dorman Engine Heater Hose Assembly

Application Summary: Ford Expedition 2010-09, Lincoln Navigator 2010-09

Quality engineered to resist corrosion and coolant leaks, the Dorman HVAC Heater Hose Assembly is designed to limit the possibility of overheating and subsequent engine damage. Original HVAC heater hose assemblies typically require replacement due to cracks in the original Y-connector plastic construction. Our OE FIX repair solution addresses this common failure mode by upgrading the Y-connector material to aluminum for increased durability and a longer service life. Plus, Dorman Heater Hose Assemblies are application-specific, and ensure the easiest, cost-savings alternative to replacing the entire assembly

" Save time and money by replacing the failed original hose, instead of the entire heater hose assembly

" Includes necessary clamps for a complete repair

" Replacement of failed hose seals the cooling system, restoring drivability

" Rigorous quality control measures have been undertaken to ensure this part conforms to product standards

Product Specifications

Branch Quantity: 3

Color/Finish: Natural/No Finish

Contains Spring: No

Coolant Hose Heat Shield Included: No Heat Shield Required

Coolant Hose Length: 13 In.

Coolant Hose Material: Aluminum and Rubber

Coolant Hose Protective Sleeve Included: Not Required

Coolant Hose Type: Single I.D. (Inside Diameter)

End 1 Attachment Type: Quick Connect

End 2 Attachment Type: Quick Connect

End 3 Attachment Type: Quick Connect

Grade Type: Standard

Hose End (1) Inside Diameter (In): 0.63 In.

Hose End (1) Outside Diameter (In): 0.95 In.

Hose End (2) Inside Diameter (In): 0.63 In.

Hose End (2) Outside Diameter (In): 0.95 In.

Hose End (3) Inside Diameter (In): 0.63 In.

Hose End (3) Outside Diameter (In): 0.95 In.

Hose Shape: Molded Assembly

Maximum Working Pressure (psi): 100 PSI

Package Contents: Heater Hose Assembly

Package Quantity: 1

Packaging Type: Bag

Thermostatically Controlled: No

With Clamps: Not Required

Vehicle Fitments:
