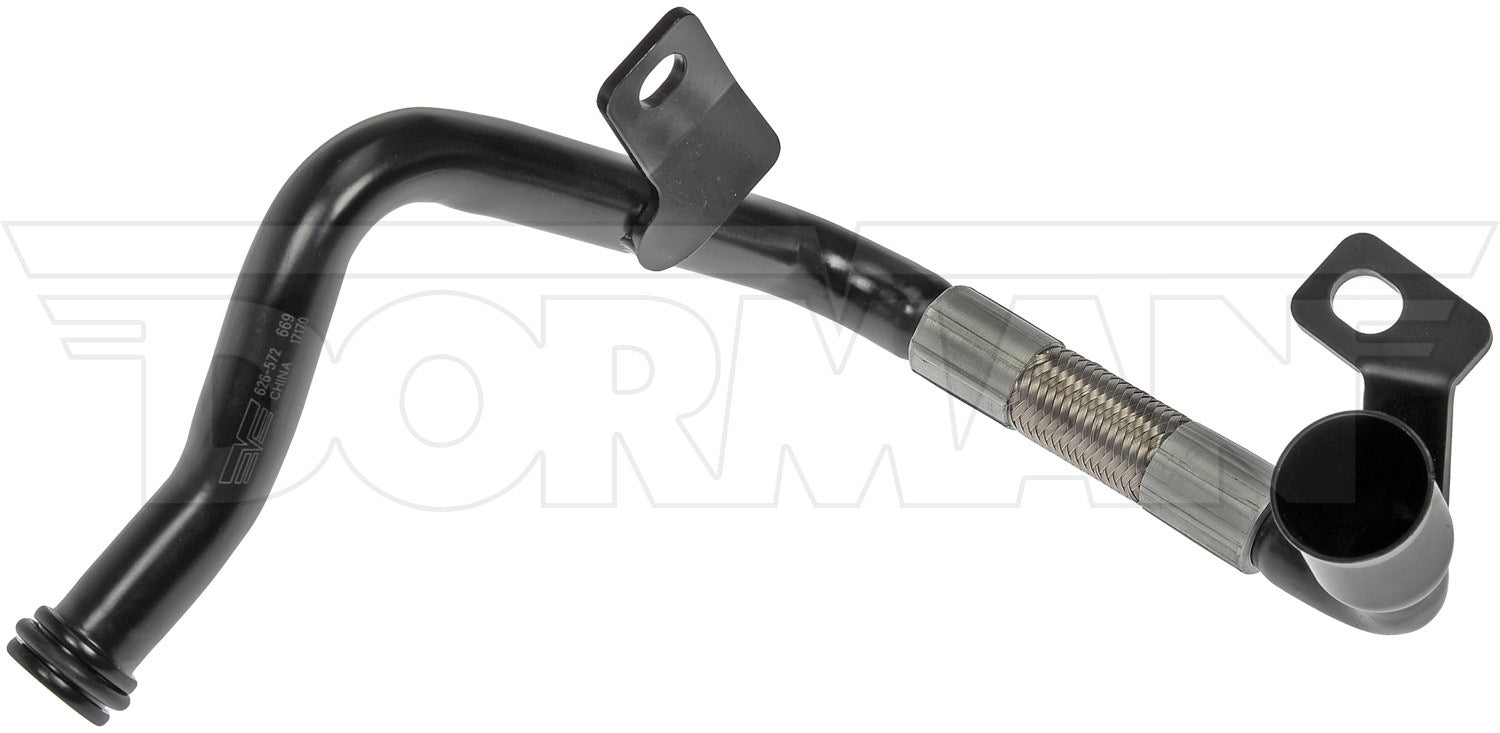

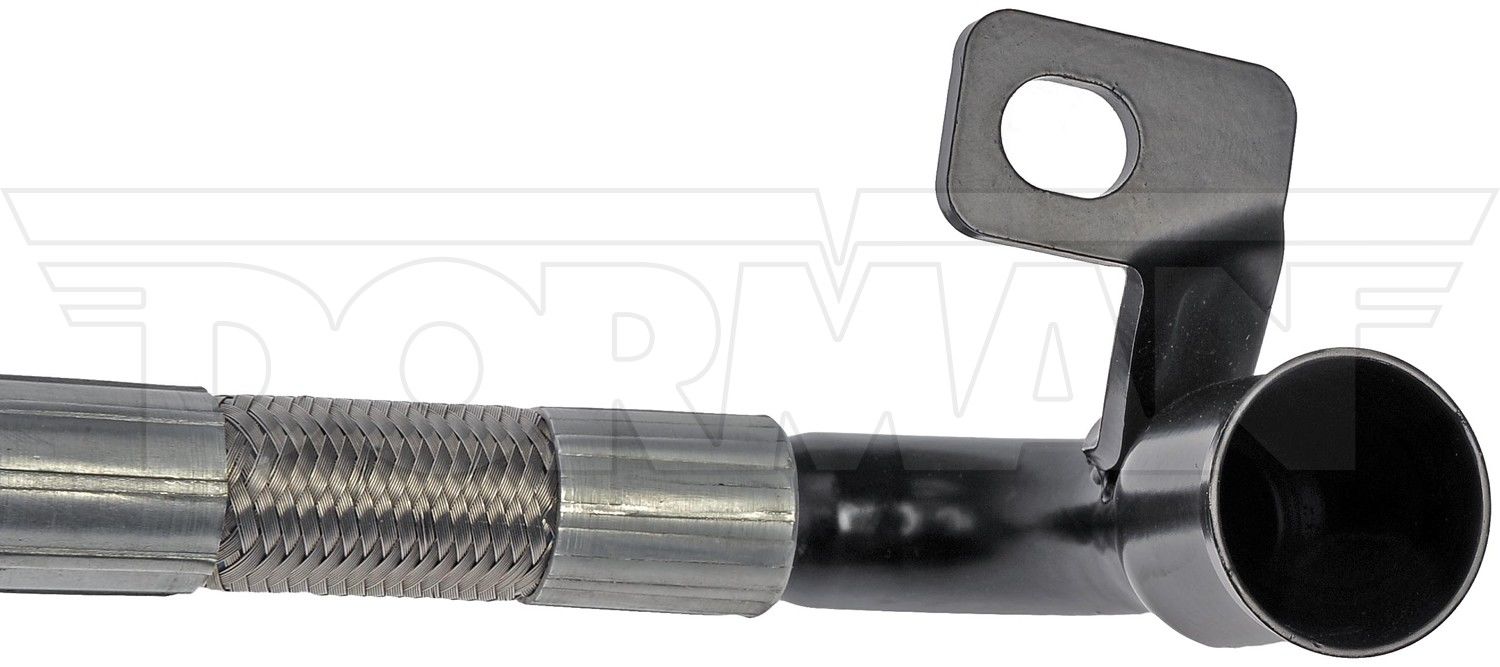

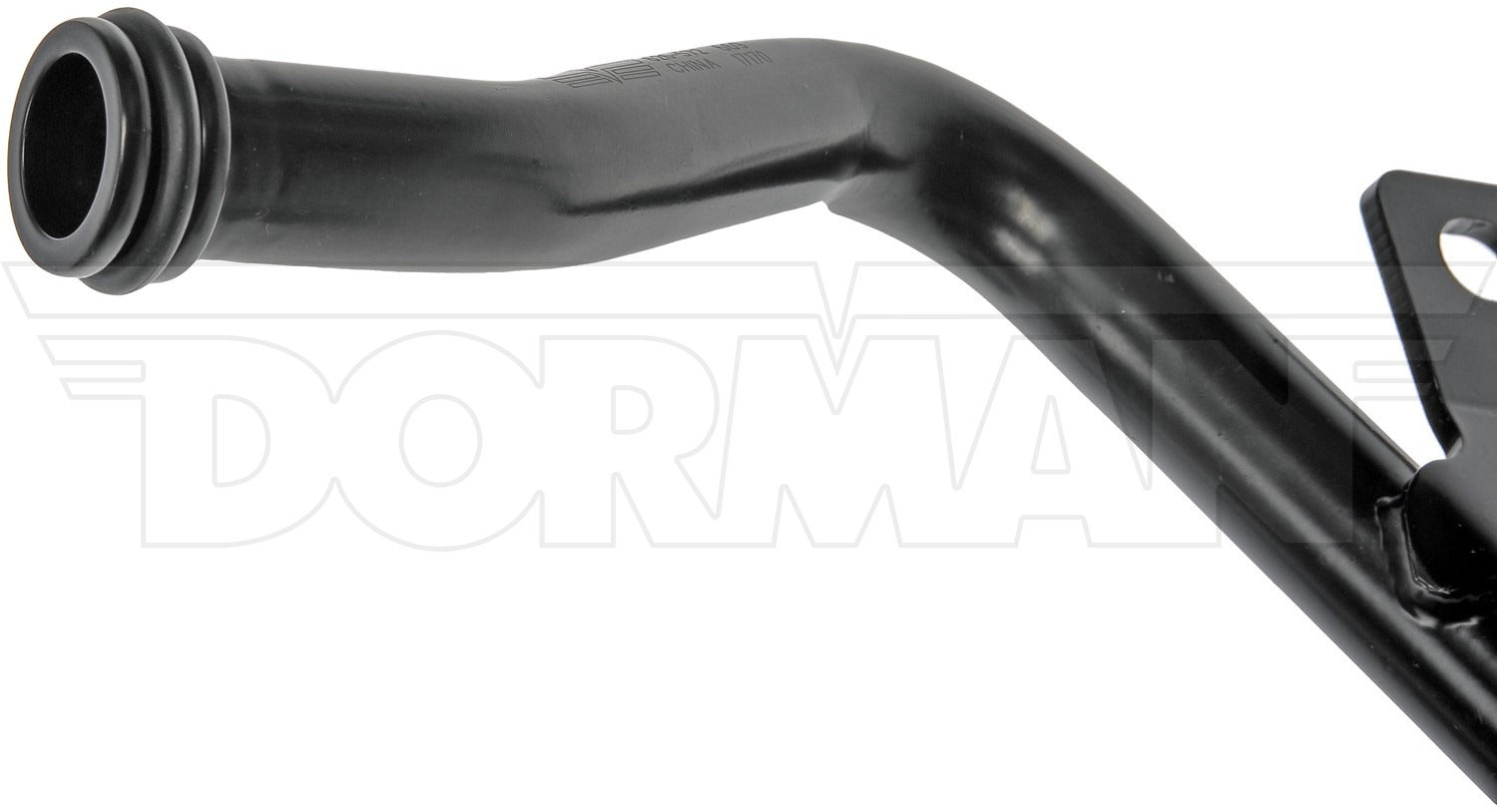

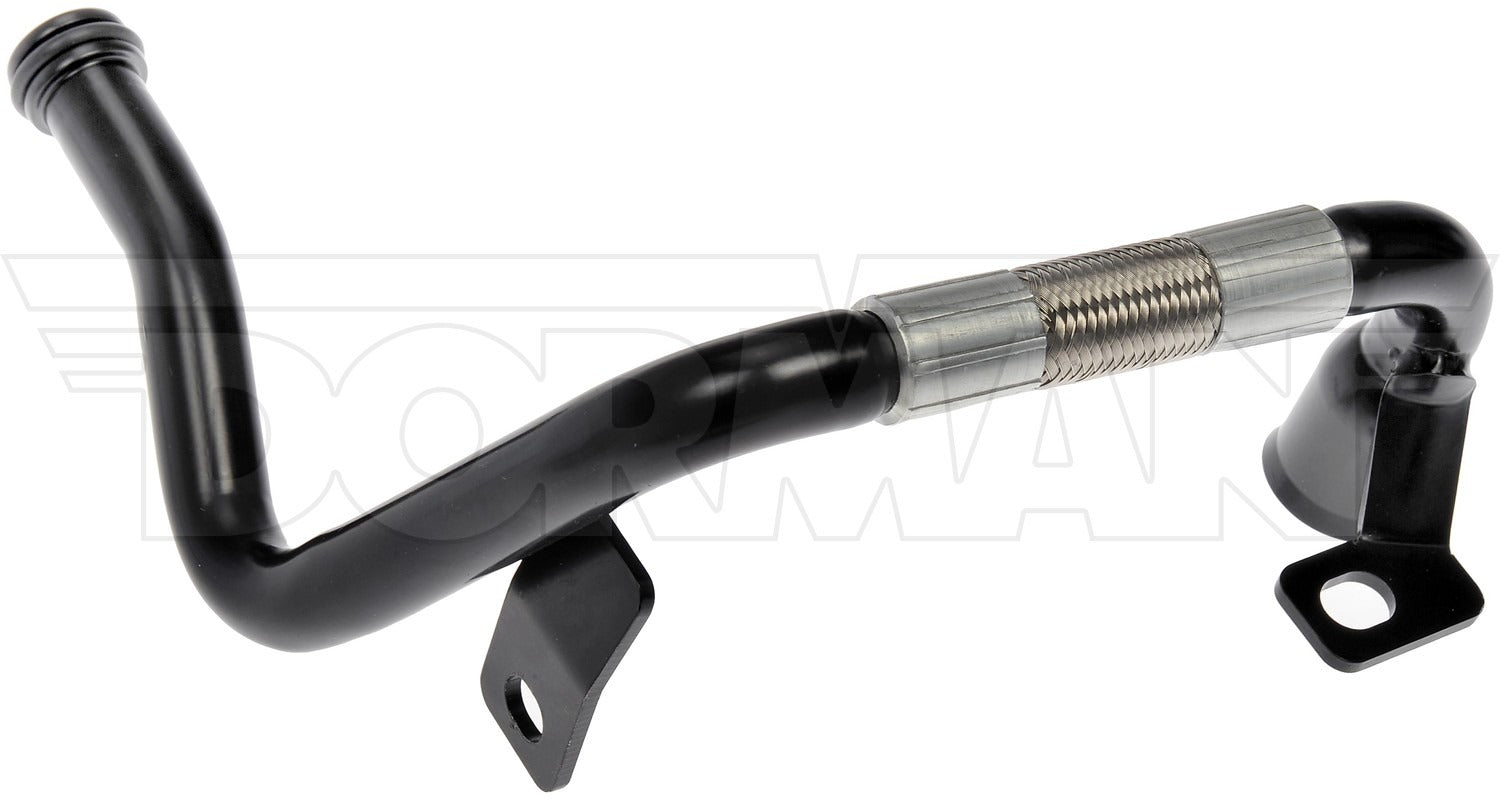

Dorman Engine Heater Hose Assembly

Dorman-improved to address vulnerabilities in the original material, our Engine Coolant Pipes are durably designed for a longer, reliable service life. The Coolant Pipe effectively transports water from the radiator to the engine block, helping to ensure proper operation of the cooling system.

• Helps prevent overheating and potential engine damage
• Direct replacement for a proper fit
• Durable against harsh under hood conditions
• Pressure testing have been conducted on this part to ensure trouble-free performance

Product Specifications

Color/Finish: Black
Coolant Hose Heat Shield Included: No Heat Shield Required
Coolant Hose Length: 12 In.
Coolant Hose Material: Steel
Coolant Hose Protective Sleeve Included: No Protective Sleeve Required
Coolant Hose Type: Dual I.D. (Inside Diameter)
End 1 Type: Flange
End 2 Type: Pipe
Gasket Or Seal Required: Yes
Hose End (1) Inside Diameter (In): 0.97 In.
Hose End (1) Outside Diameter (In): 1.07 In.
Hose End (2) Inside Diameter (In): 0.65 In.
Hose End (2) Outside Diameter (In): 0.93 In.
Maximum Working Pressure (psi): 100 PSI
Mount Bracket Hole Diameter: 0.43 In
Mount Bracket Quantity: 2
Mounting Bracket Included: Yes
Package Contents: 1 Coolant Tube
Package Quantity: 1
Packaging Type: Bag
Shape: Irregular

Application Summary: Dodge 2013-09, Ram 2017-10

Vehicle Fitments:
