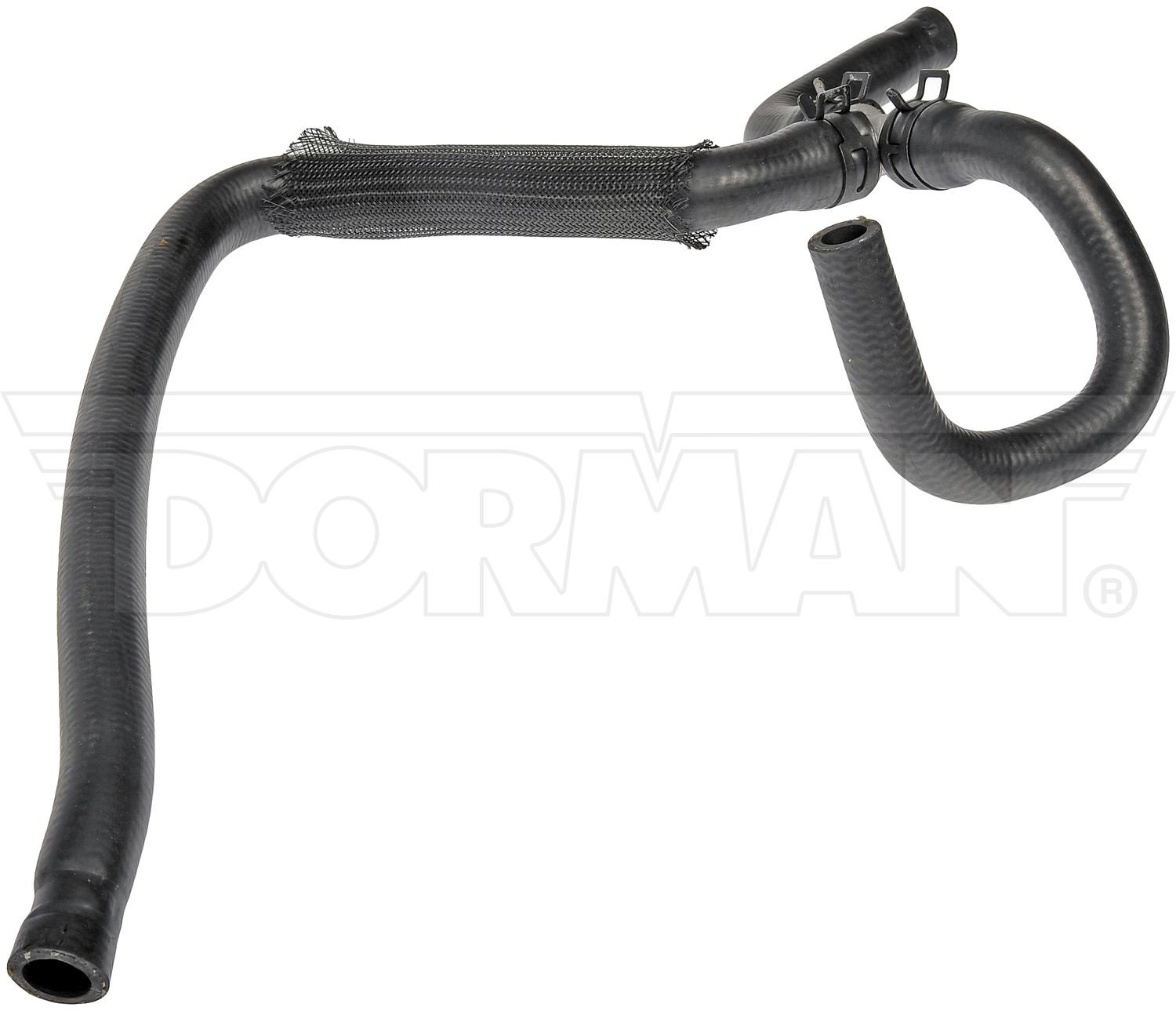

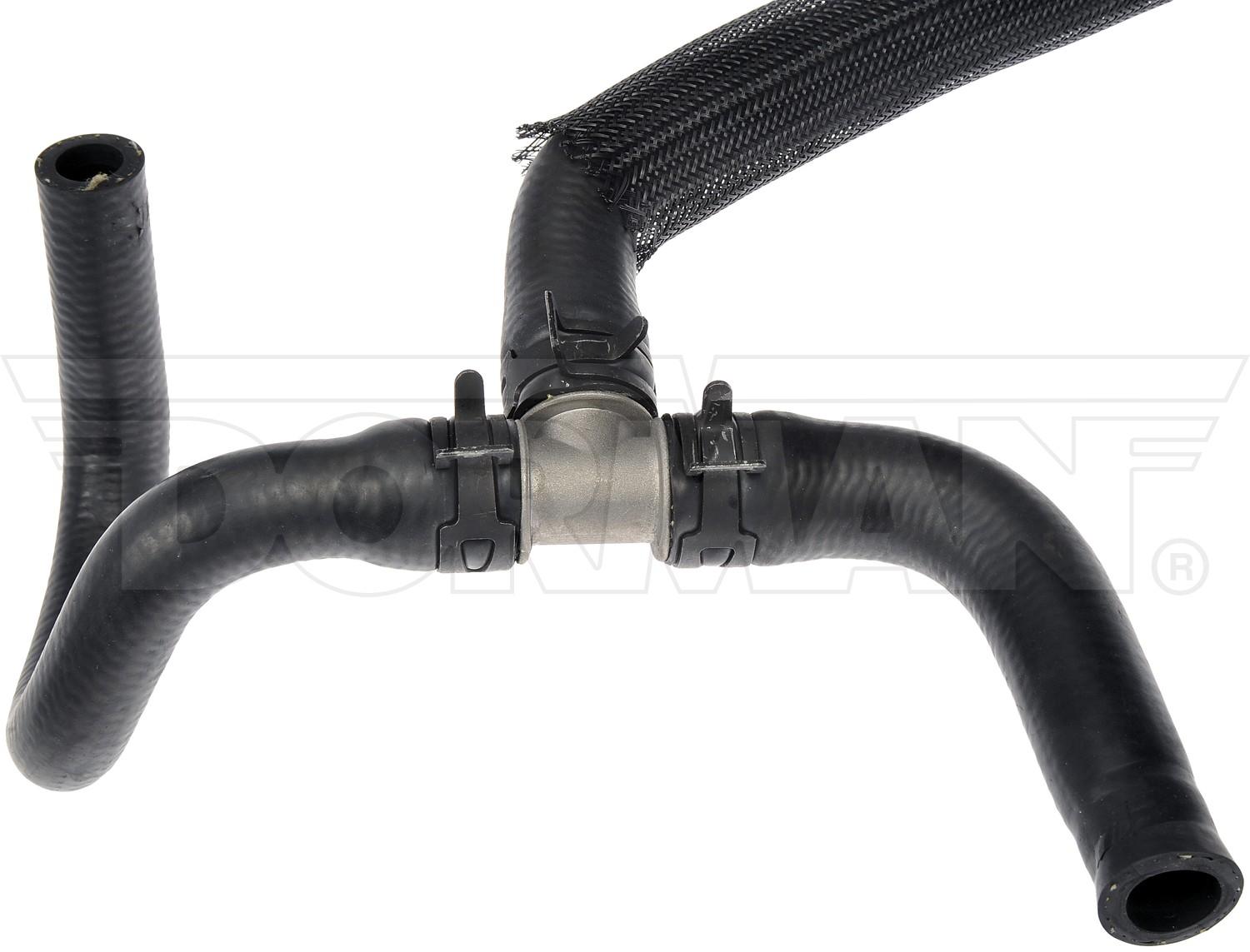

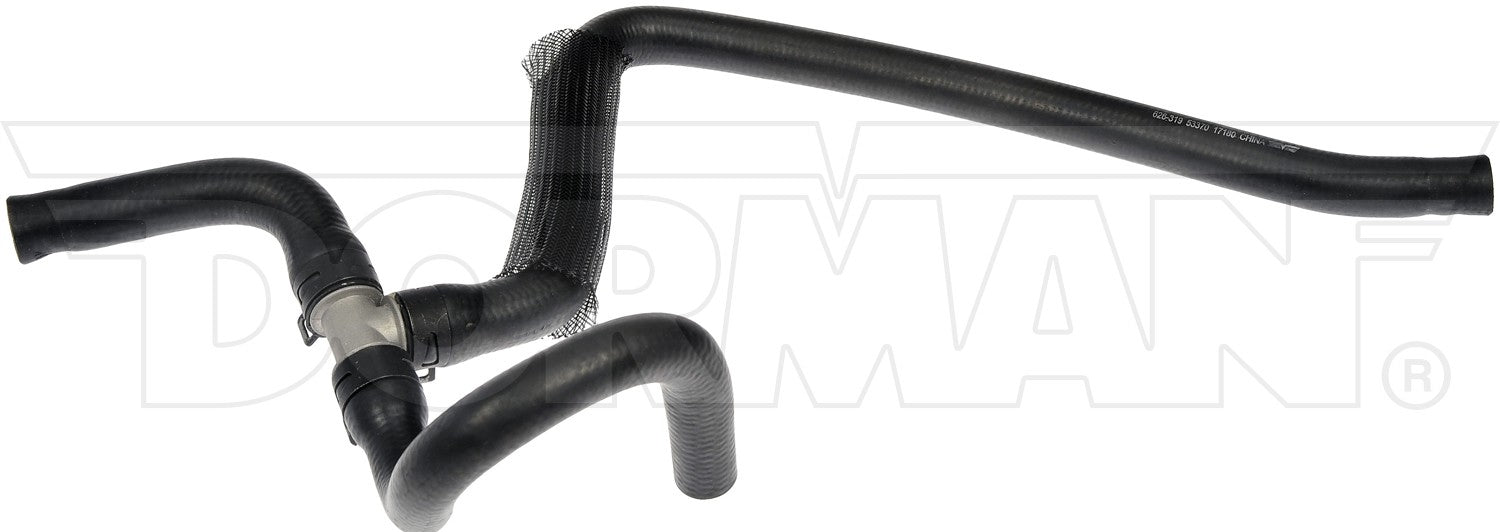

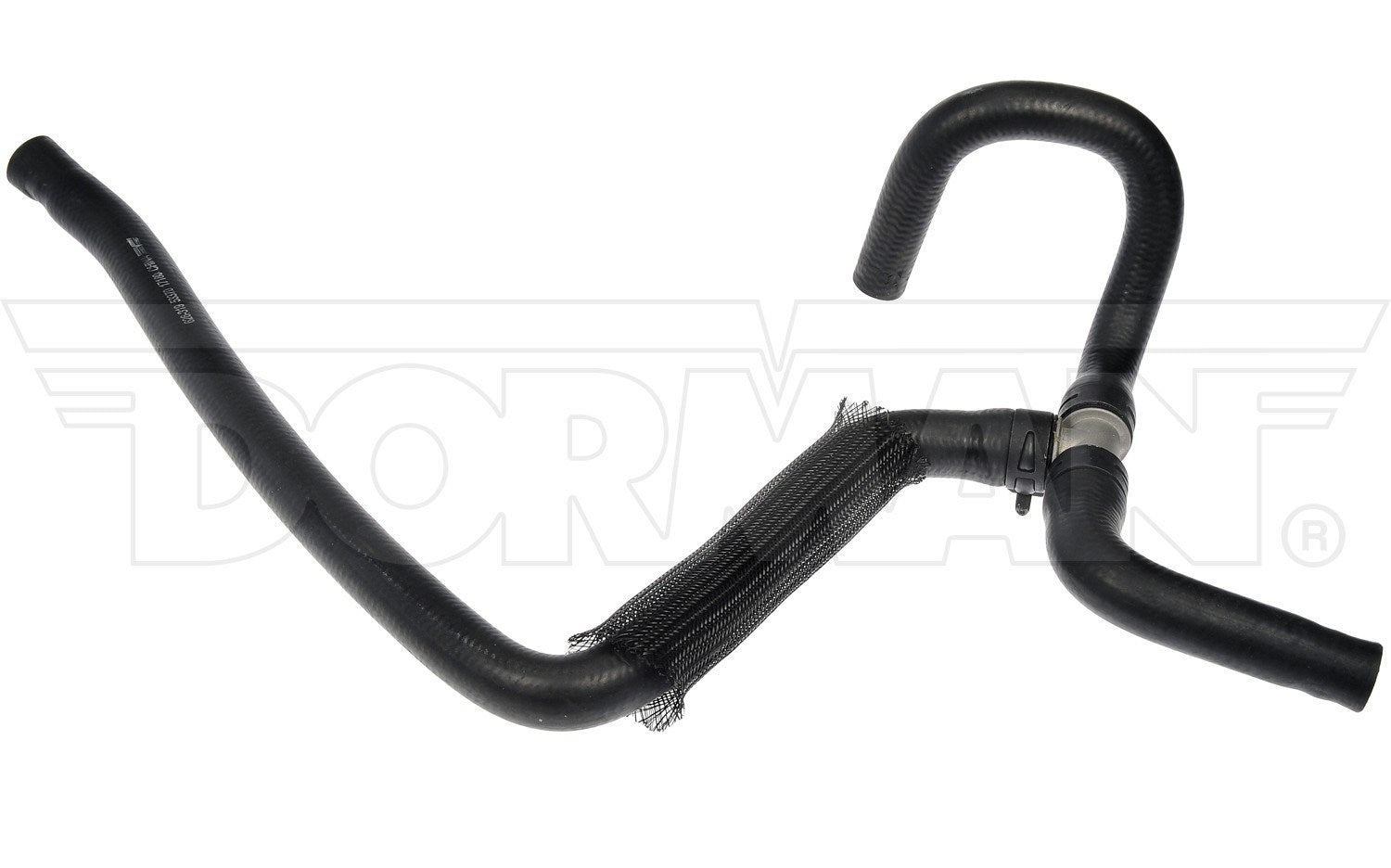

Dorman Engine Heater Hose Assembly

Application Summary: Chrysler 300 2017-05, Dodge Challenger 2017-08, Dodge Charger 2017-06, Dodge Magnum 2008-05

Quality engineered to resist corrosion and coolant leaks, the Dorman HVAC Heater Hose Assembly is designed to limit the possibility of overheating and subsequent engine damage. Original HVAC heater hose assemblies typically require replacement due to cracks in the original Y-connector plastic construction. Our OE FIX repair solution addresses this common failure mode by upgrading the Y-connector material to aluminum for increased durability and a longer service life. Plus, Dorman Heater Hose Assemblies are application-specific, and ensure the easiest, cost-savings alternative to replacing the entire assembly.

• Save time and money by replacing the failed original hose, instead of the entire heater hose assembly
• Includes necessary clamps for a complete repair
• Replacement of failed hose seals the cooling system, restoring drivability
• Rigorous quality control measures have been undertaken to ensure this part conforms to product standards

Product Specifications
Branch Quantity: 3Branch Quantity: 3
Color/Finish: Natural
Contains Spring: No
Coolant Hose Heat Shield Included: No
Coolant Hose Length: 25 In.
Coolant Hose Material: Rubber
Coolant Hose Protective Sleeve Included: Not Required
Coolant Hose Type: Single I.D. (Inside Diameter)
End 1 Attachment Type: Hose
End 2 Attachment Type: Hose
End 3 Attachment Type: Hose
Grade Type: Regular
Hose End (1) Inside Diameter (In): 0.70 In.
Hose End (1) Outside Diameter (In): 1 In.
Hose End (2) Inside Diameter (In): 0.71 In.
Hose End (2) Outside Diameter (In): 1 In.
Hose End (3) Inside Diameter (In): 0.6 In.
Hose End (3) Outside Diameter (In): 0.9 In.
Hose Shape: Molded Assembly
Maximum Working Pressure (psi): 100 PSI
Package Contents: 1 Heater Hose Assembly
Package Quantity: 1
Packaging Type: Bag
Thermostatically Controlled: No
With Clamps: Yes

Vehicle Fitments:
