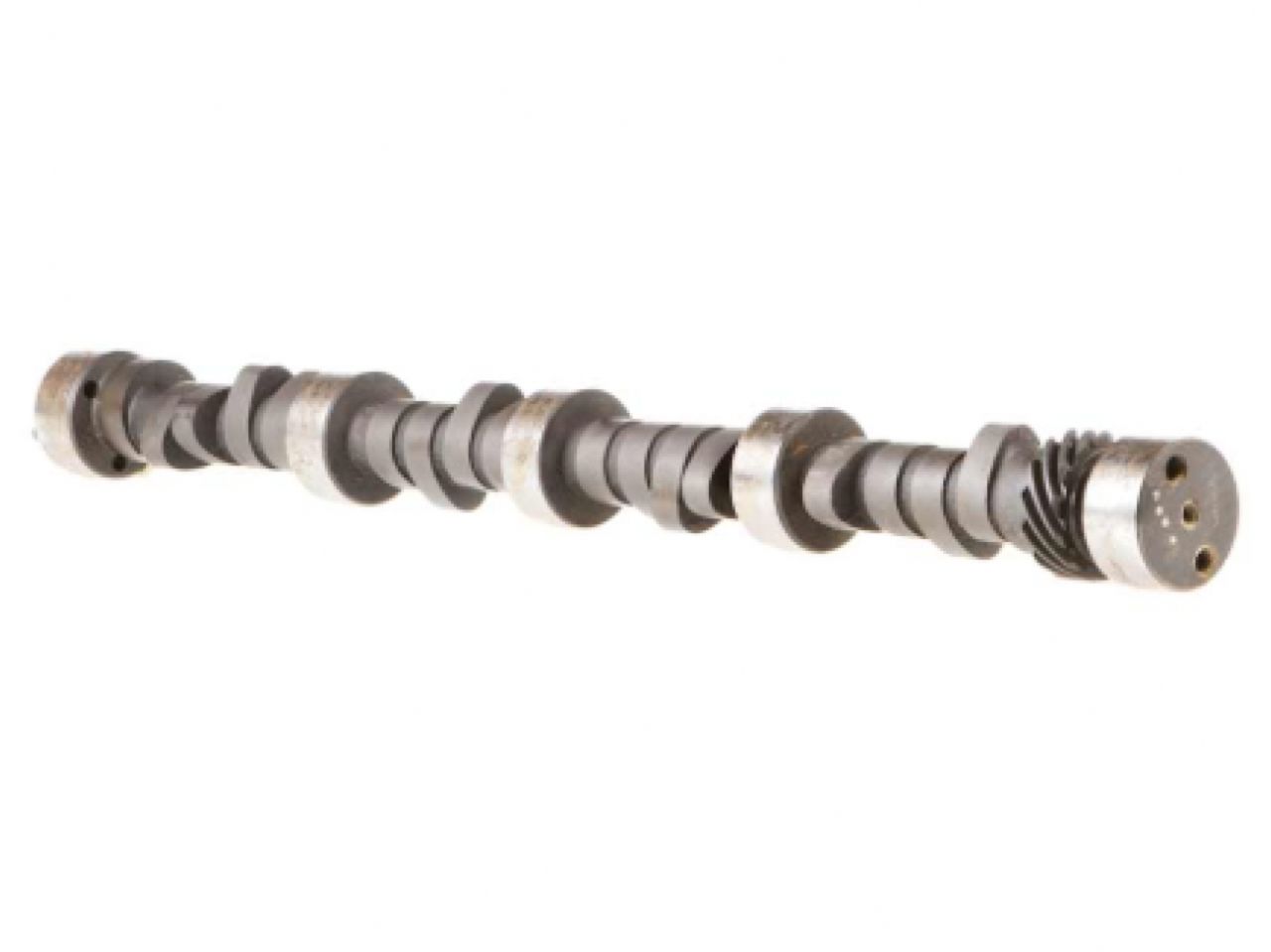

Melling Engine Camshaft

Class IV camshaft (245°-UP). Rough idle quality. Mid to high rpm torque and horsepower. For serious racing.
Need proper selection of rear axle ration and improvements in carburation and exhaust system. For use
with manual transmission or automatic with very high stall converter. Will not have enough vacuum for
power accessories. Melling offers a full line of high performance camshafts for domestic cars, light trucks,
import vehicles, marine and high performance engines. Melling offers specific high performance camshaft
choices for street, RV, strip and circle track racing applications. Melling camshafts supply the performance to
suit your horsepower and torque requirements wherever and whenever you want it. Melling high
performance camshafts are developed, engineered, tested and manufactured with the highest standards of
quality and materials.

Product Attributes:

Advertised Exhaust Duration: 318 deg
Advertised Intake Duration: 309 deg
Basic Operating RPM Range: 5000 RPM
Cam Type: Mechanical Flat Tappet
Computer Controlled Compatible: No
Exhaust Duration at .050 inch Lift: 273 deg
Exhaust Valve Lash: .024 in
Exhaust Valve Lift: 0.536 in
Exhaust Valve Lift with Factory Rocker Arm Ratio: 1.70 in
Intake Duration at .050 Inch Lift: 262 deg
Intake Valve Lash: .022 in
Intake Valve Lift: 0.512 in
Intake Valve Lift with Factory Rocker Arm Ratio: 1.70 in
Lifter Type: Solid
Lobe Separation: 112 deg
