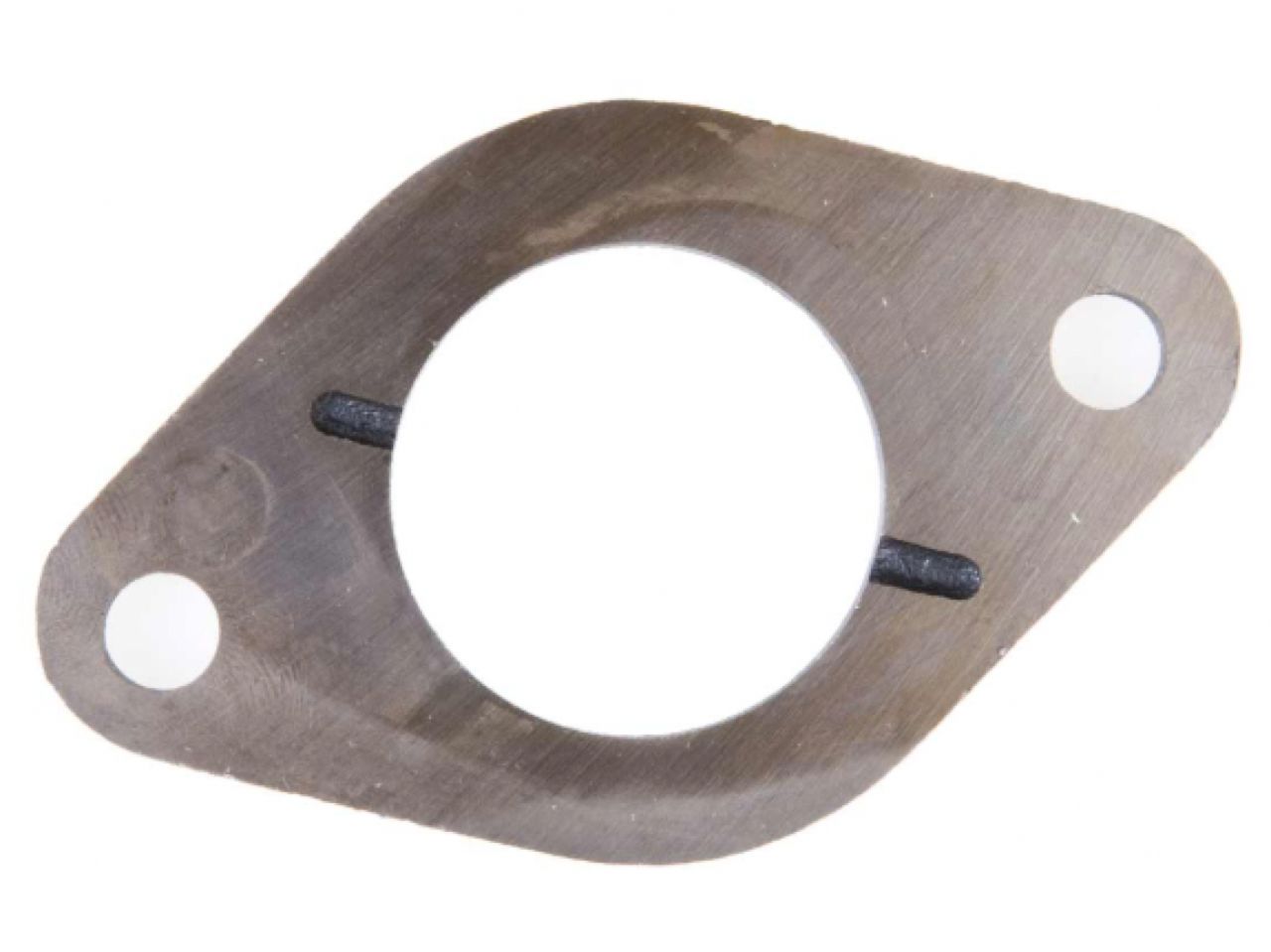

Melling Engine Camshaft Thrust Plate

Worn thrust buttons and thrust plates allow for cam walk and component misalignment. Melling camshaft
thrust button / plate applications protect your engine investment by returning your timing back to the
desired specifications. Always replace with new Melling buttons and plates whenever a camshaft application
calls for a thrust button / plate component.

Product Attributes

• Inside Diameter: 1.435 in
• Inside Diameter: 36.449 mm
• Material: Cast Iron
• Mounting Hole Diameter: 0.34 in
• Mounting Hole Diameter: 8.636 mm
• Mounting Hole Quantity: 2
• Outside Diameter: 2.2 in
• Outside Diameter: 55.88 mm
• Thickness: 0.161 in
• Thickness: 4.089 mm
