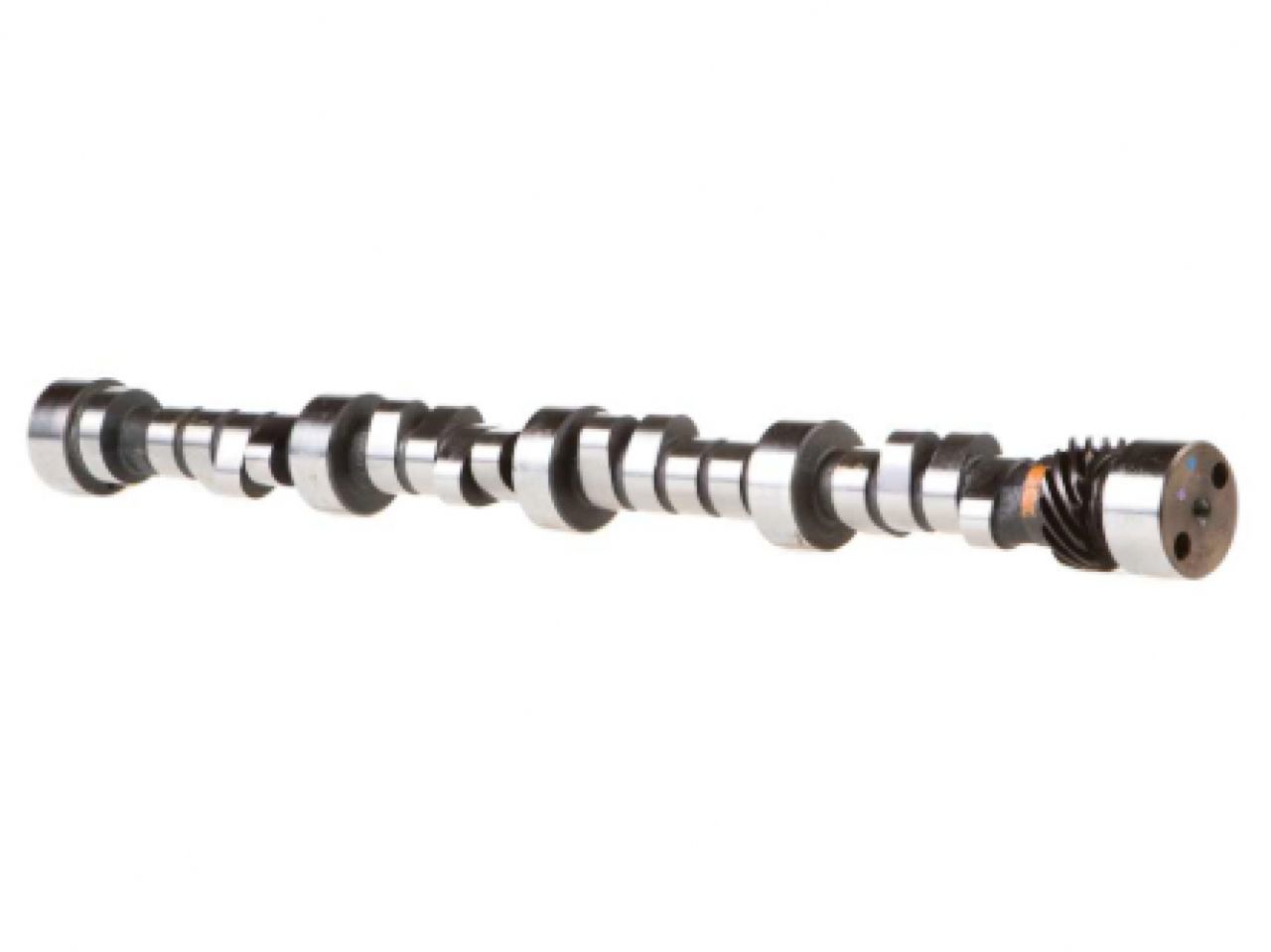

Melling Engine Camshaft

Class I camshaft (200°-215°). Good idle quality. Low rpm torque and mid range performance. Will work
with stock or slightly modified engine. Manual or auto transmission. Melling offers a full line of high
performance camshafts for domestic cars, light trucks, import vehicles, marine and high performance
engines. Melling offers specific high performance camshaft choices for street, RV, strip and circle track
racing applications. Melling camshafts supply the performance to suit your horsepower and torque
requirements wherever and whenever you want it. Melling high performance camshafts are developed,
engineered, tested and manufactured with the highest standards of quality and materials.

Product Attributes:

Advertised Exhaust Duration: 310 deg
Advertised Intake Duration: 284 deg
Basic Operating RPM Range: 2800 RPM
Cam Type: Hydraulic Roller
Computer Controlled Compatible: No
Exhaust Duration at .050 inch Lift: 230 deg
Exhaust Valve Lift: 0.480 in
Exhaust Valve Lift with Factory Rocker Arm Ratio: 1.50 in
Intake Duration at .050 Inch Lift: 215 deg
Intake Valve Lift: 0.470 in
Intake Valve Lift with Factory Rocker Arm Ratio: 1.50 in
Lifter Type: Hydraulic Roller
Lobe Separation: 110 deg
