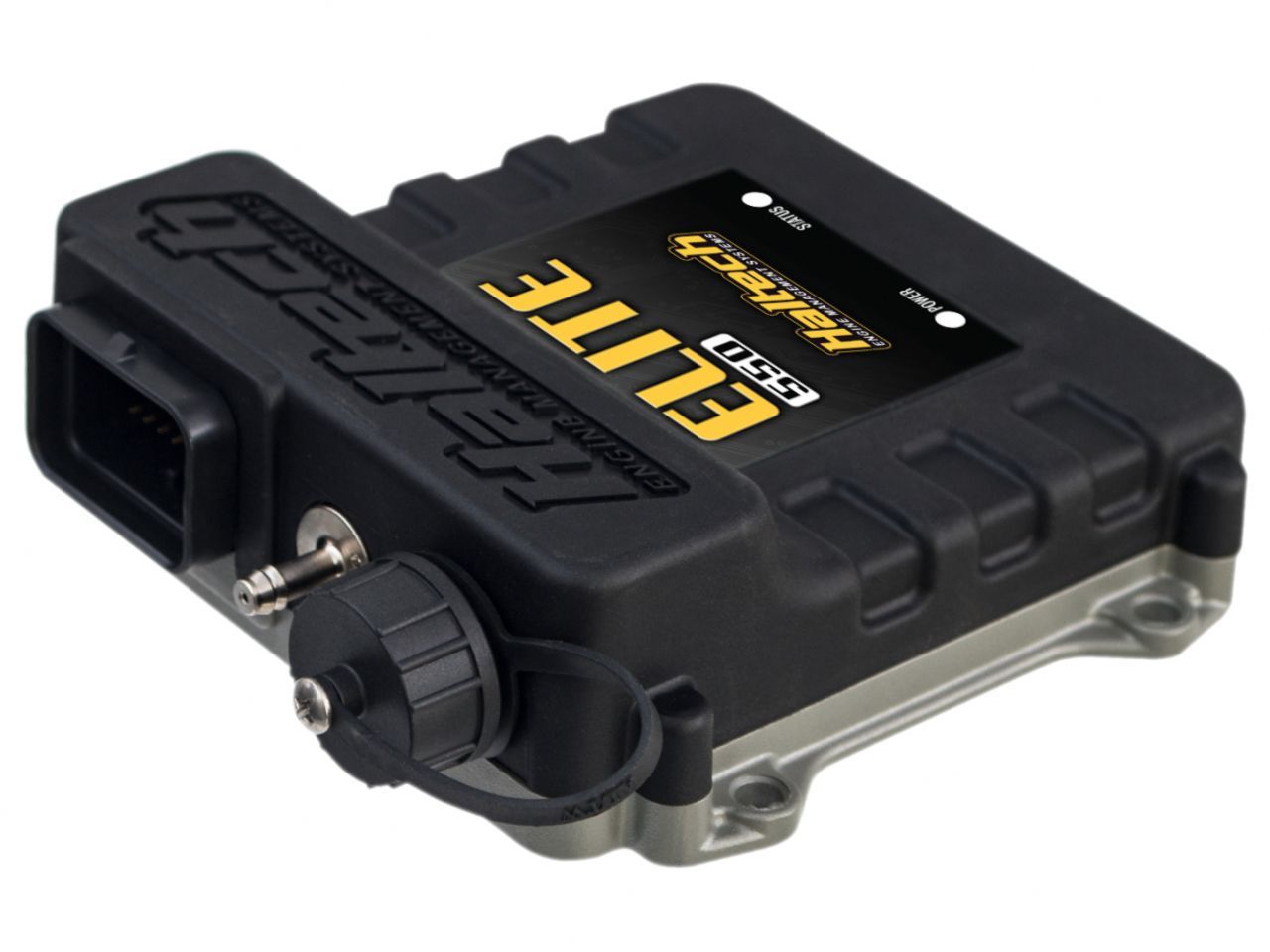

• Haltech Electronics HT-150400 Item Image

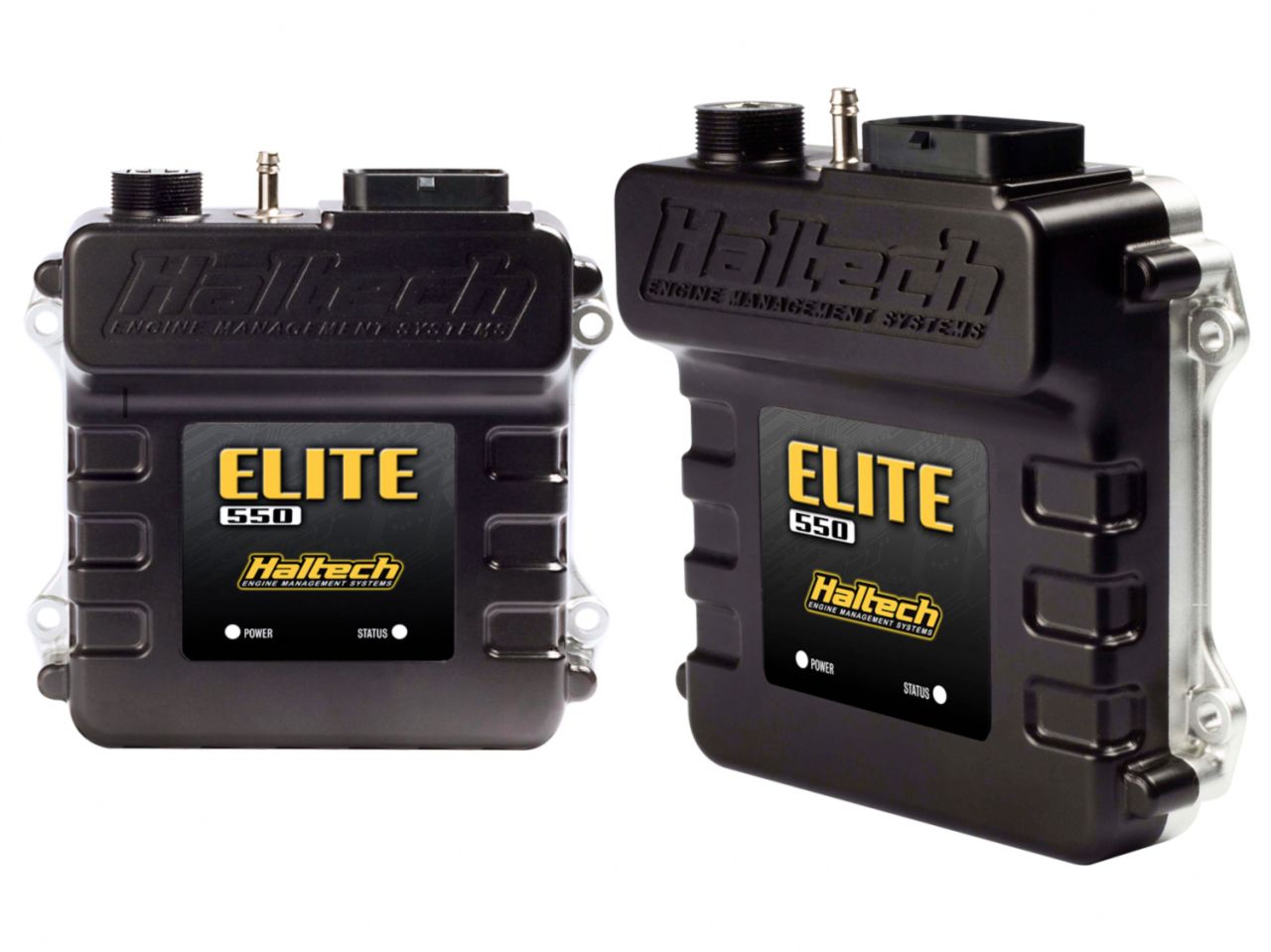

  • Haltech Elite 550 ECUOutputs: Up to 4 injector and 4 ignition.Suits: Universal

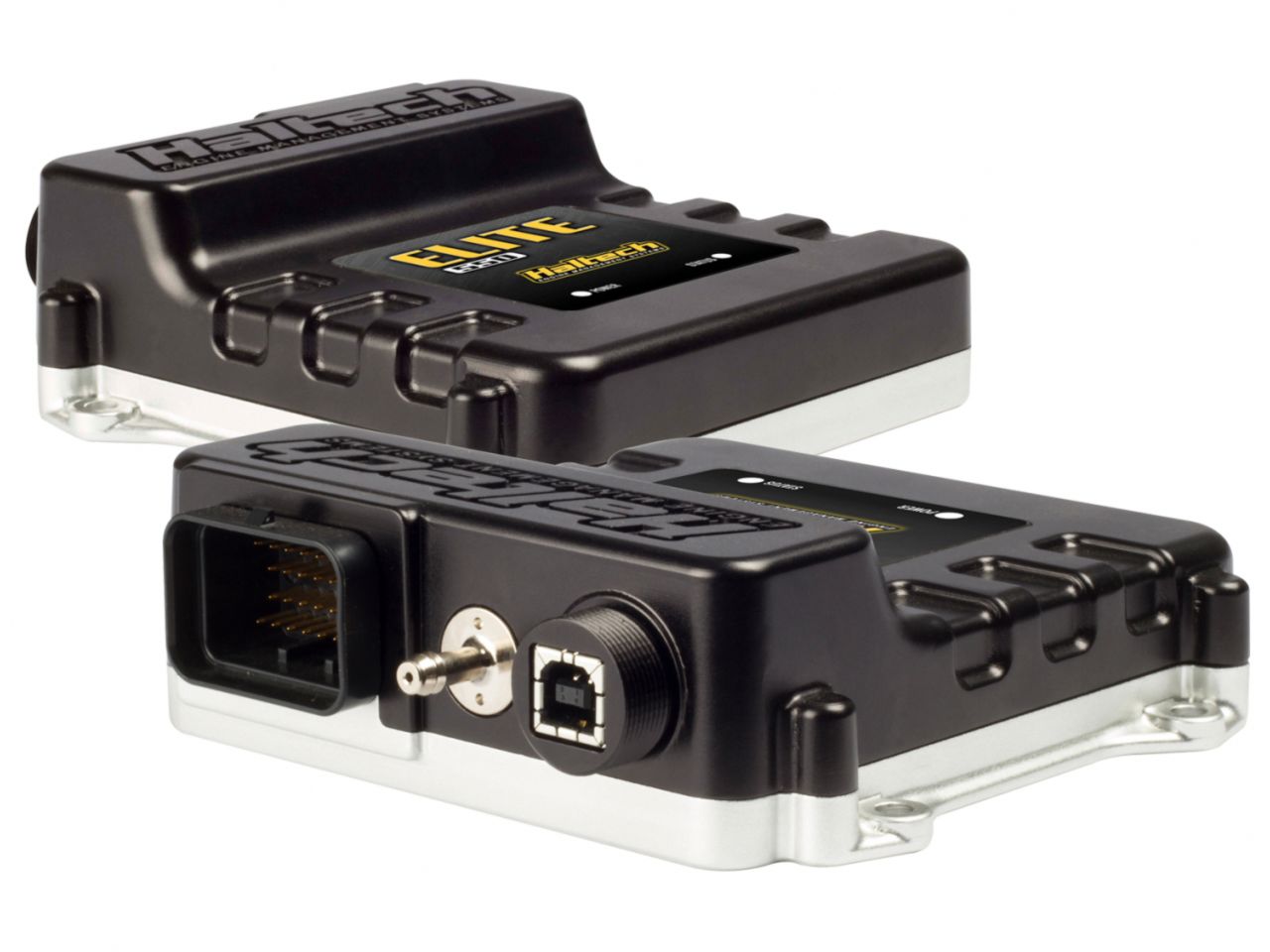

  • Haltech Elite 550 ECUOutputs: Up to 4 injector and 4 ignition.Suits: Universal
1 3
Haltech Authorized Dealer

Haltech Elite 550 ECUOutputs: Up to 4 injector and 4 ignition.Suits: Universal

Haltech Elite 550 ECUOutputs: Up to 4 injector and 4 ignition.Suits: Universal

$1,095.00
$1,095.00
Sale Sold out

Out of stock

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Shipping weight
1.4 lb

Billable shipping weight; may include dimensional weight.
The Elite 550 is a simple yet powerful ECU ideal for basic 4 to 8 cylinder or 1-2 rotor engine applications. Suitable for either naturally aspirated or forced induction engines the Elite 550 gives you full control over fuel delivery, ignition timing and boost levels. This robust, competitively priced ECU features an environmentally sealed, waterproof case, 4 fuel and 4 ignition channels and a 3 BAR internal MAP sensor. Alongside the Elite 550 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.
  • Supports 1 to 8 Cylinder engines
  • 1 to 2 Rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Sequential, semi sequential, batch or multipoint injection patterns
  • Distributor ignition systems, multi-coil systems or Haltech Multiplex CDI systems
  • Connect to a wide range of display dashes and expansion devices via CAN.
  • Waterproof case (IP67) (with USB cover fitted)
  • 34 position AMP connector
  • 4 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
  • 4 x Ignition Outputs
  • 2 x Dedicated Engine Position inputs with extensive trigger type support
  • 1 x Digital Pulsed Input
  • 5 x Digital Pulsed Outputs
  • 1 x Analogue Voltage Input
  • 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
  • Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
  • Up to 33 channels of Input & Output (I/O) expansion (via CAN)
  • USB Laptop Communication (Windows)
  • ESP Calibration Software - Intuitive and easy to use

Features:

ECU FUNCTIONS
  • Low Impedance Injector control with Programmable Injector Peak and Hold Currents
  • Closed Loop O2 Control - for precise tuning (With optional external CAN O2 Wideband Controller Kit).
  • Closed Loop Idle Speed Control - requires 1 or 2 user defined outputs (BAC type)
  • Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
  • CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
  • 2 Injection Stages for use with Rotary Engines
  • ECU comes fully enabled, no additional charges for advanced features.
ADVANCED TUNING
  • Tuning Table Resolution up to 32 x 16
  • Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
  • tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility - Dual mapping is a thing of the past.
  • Per Cylinder Tuning Correction - 3D
  • Wideband O2 - Connect up to 2 Channels via CAN expansion devices
  • Thermocouples/EGT (Exhaust Gas Temperature) - Connect up to 12 Channels via external CAN expansion devices
  • Boost Control -Intelligent 3D Open loop, with flexible user definable axis and 6 fully user definable corrections
  • modes - example boost by gear, road speed etc.

Learn the easiest Rubik's Cube solution which is available in many languages. You'll just have to memorize a cople tricks.

View full details

Vehicle fitment
