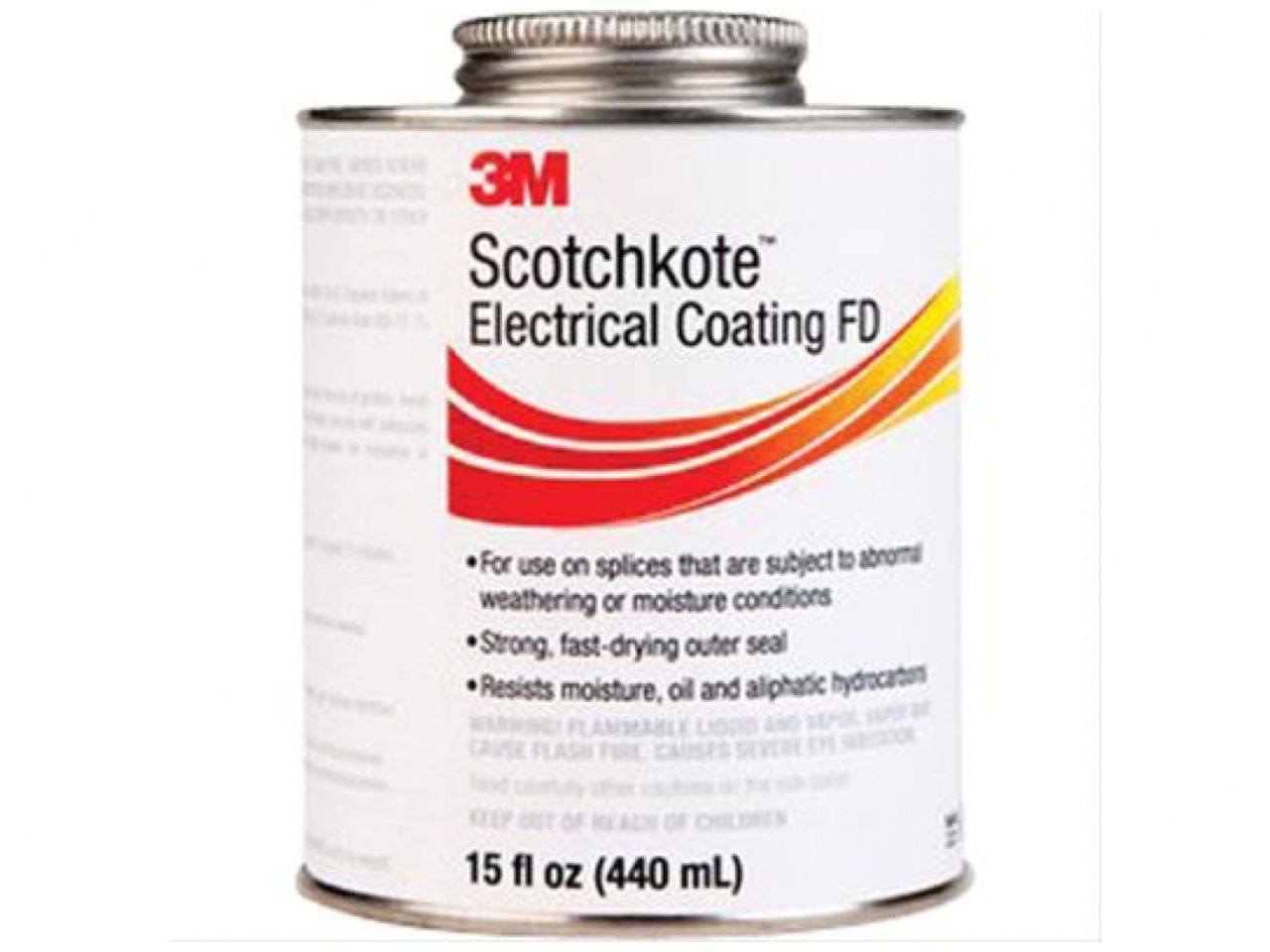

3M Electrical Coating FD 15 OZ Can
3M™ Scotchkote™ FD Electrical Coatings are designed to be used with Scotch® Vinyl Electrical Tapes. After taping splices with Scotch® Vinyl Electrical Tape, apply Electrical Coating FD (Fast Drying) evenly over splice, extending a short distance onto the cable insulation. Be sure the surface is clean, dry and free from oil or grease before applying coating.
Scotchkote™ FD Electrical Coatings details:
* Designed for use as an outer seal on a vinyl tape splice
* Fast-drying
* Dielectric Strength: Dry: 450 volts/mil, 24 hrs. in water: 200 volts/mil
* Suitable for use for direct burial and moisture protection
* Helps protect from moisture and corrosion
* 15-oz can with self-contained applicator
* RoHS 2011/65/EU Compliant
* Tack Free Time: 12 minutes at 72 degrees F
* Remains flexible
* Good Adhesion to: Wood, Metal, Rubber, Plastic
These Electrical Coatings are intended for use as an outer seal on vinyl-tape applications which are subjected to excessive amounts of water or oil. They are designed to improve the weather resistance of the taped joint of splice. These products are suitable for direct burial, direct water immersion or above ground applications.
Amateur Radio operations often require outdoor splices. Whether above or below ground, 3M™ Scotchkote™ FD Electrical Coatings from DX Engineering will protect your connections from weather and other liquid intrusion.
- Rubberized Coating Type:Electrical insulating
- Volume:15 oz.
- Quantity:Sold individually.
- Notes:This product must be shipped by ground shipping.
