Dorman Electric Vacuum Pump

Dorman's Vacuum Pumps are 100% new, not remanufactured. Since they are new, they do not contain any used components that could lead to premature failure. Most premature failures occur with the bearing. A bearing failure will prevent the pump from producing vacuum. Depending on the vehicle, this may result in a loss of vent or temperature control inside the cabin, impaired or partial loss of braking or 4WD.

• Direct replacement for ease of installation
• Vehicle try-on testing has been conducted on this part to ensure trouble-free performance
• Mechanical and electric vacuum pumps available
• No core return hassles

Specifications

Gasket or Seal Included: No
Housing Material: Plastic

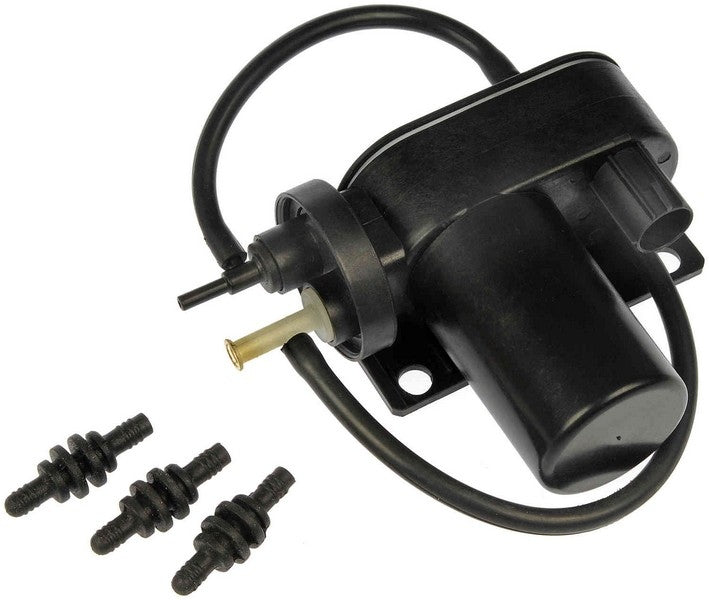

Package Contents: Pump Assembly, 3 Rubber Grommets
Package Quantity: 1
Packaging Type: Box
Pulley Included: No
Vacuum Pump Connector: Barbed
Vacuum Pump Drive System: Electric Motor Drive
Vacuum Pump Inlet: 1/4 In.
Vacuum Pump Outlet: 1/8 In.
Vacuum Relief Valve: No

Application Summary

Dodge 2004-03, Ford 2007-99

Vehicle Fitments:
