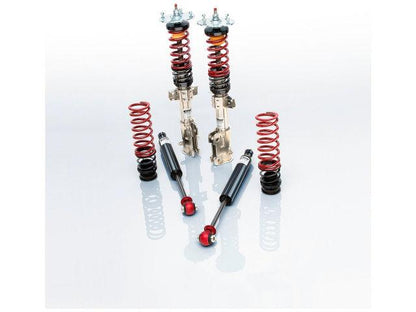

Eibach Multi Pro R1 Coilover Kit FR-S BRZ
Eibach Multi Pro R1 Coilover Kit - Scion FR-S / Subaru BRZ
THE ULTIMATE IN TUNABLE SUSPENSION PERFORMANCE
For the ultimate in tunable suspension performance, Eibach has developed the MULTI-PRO-R1 coilovers, specially tuned spring/damper units that allow you to extract the last ounce of cornering power from your late model performance car. The Coilover design lets you precisely tune the corner weights for optimum handling balance, and the wide range of the damping adjustability lets you tune for the comfort, ultimate grip, or anything in between. These suspension kits are perfect for the club racers or drivers who demand the high performance handling and optimal ride quality for which Eibach is famous.
Features:
- Single Adjustable Rebound and Compression Damping-
- Lowering 0.0" - 2.0"
- Includes Upper Camber Plate with Camber/Caster Adjustments
- Monotube Design for Maximum Street and Track Performance
- Spring Rates can be Tuned with a Wide Range of Eibach Motorsport ERS Springs (available separately)
- 100% Designed and Built at Eibach U.S.A.
- One-Year Warranty
Technical Information:
FRONT:
OE rate: 28 N/mm (160 lbs/in)
R1 Main spring rate: 48 N/mm (275 lbs/in)
R1 Helper rate: 0 N/mm (0 lbs/in)
Bump-stop: New Eibach bump-stop
Damper: 304 Stainless steel mono-tube with 46mm damping piston.
Adjustment: Ride height adjustable. Lowering from 0.0" to 2.0"
Aluminum Camber/Caster Plate w/Uniball: Camber Adjustment Range: 2 deg
Caster Adjustment Range: 1 deg
Rebound Adjustment: 6 clicks via top shaft
Approximate installation time: 2.5 hr
REAR:
OE rate: 34 N/mm (197 lbs/in)
R1 Main spring rate: 48 N/mm (350 lbs/in)
R1 Helper rate: 0 N/mm (0 lbs/in)
Bump-stop: New Eibach bump-stop
Damper: 304 Stainless steel mono-tube 46mm damping piston with powder coated piggy back reservoir.
Adjustment: Ride height adjustable. Lowering from 0.0" to 1.6"
Aluminum Top Mount: Replaces O.E. w/supplied
Rebound Adjustment: 6 clicks via top shaft
Optional Toe Alignment Kit: 5.67655K
Approximate installation time: 1.5 hr
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2013 - 2017 | Subaru | BRZ | Premium, Sport-tech, Limited, Base |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Special Edition, Base |
Eibach Multi Pro R1 Coilover Kit FR-S BRZ
Sale price$2,313.36 USD
Regular price$2,856.00 USD
