Eibach Springs

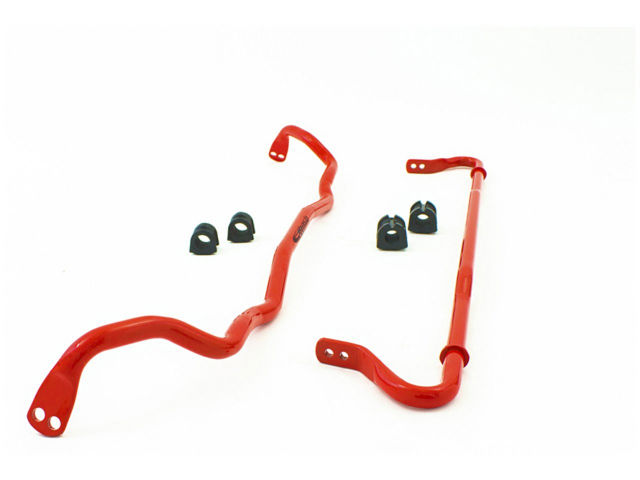

Eibach Anti-Roll Front & Rear Sway Bar Kit 2012+ Civic All

Eibach Anti-Roll Front & Rear Sway Bar Kit 2012+ Civic All

sku: 0FPKB | mpn: 4087.320
$396.67
$396.67 $396.67
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Manufactured from cold-formed, tubular high-strength aircraft-grade steel for precision performance, and finished with a long-lasting red powder coat finish, the ANTI-ROLL-KIT comes complete with all necessary mounting hardware and instructions for easy bolt-on installation.


TECHNICAL INFORMATION

FRONT:

OE bar: 18 mm (0.71 in) solid
OE measured bar rate: 9.8 N/mm (56 lbs/in)
OE bar weight: 2.9 kg (6.4 lbs)

Eibach bar: 24mm (0.95 in) solid, adjustable
Eibach measured bar rate: 2 position adjustable
P1 = 26 N/mm (148 lbs/in) +264 %
P2 = 30 N/mm (171 lbs/in) +305 %
Eibach bar weight: 5.0 kg (11 lbs)
Bushings: New urethane bushings with grease grooves.
End Link: OE

REAR: OE bar: 15 mm (0.59 in) solid
OE measured bar rate: 8.8 N/mm (50 lbs/in)
OE bar weight: 1.7 kg (3.75 lbs)

Eibach bar: 19 mm (0.75 in) solid, adjustable
Eibach measured bar rate: 2 position adjustable
P1 = 36 N/mm (205 lbs/in) +409%
P2 = 45 N/mm (257 lbs/in) +514%

Eibach bar weight: 2.8 kg (6.3 lbs)
Bushings: New urethane bushings with grease grooves
End Link: OE
