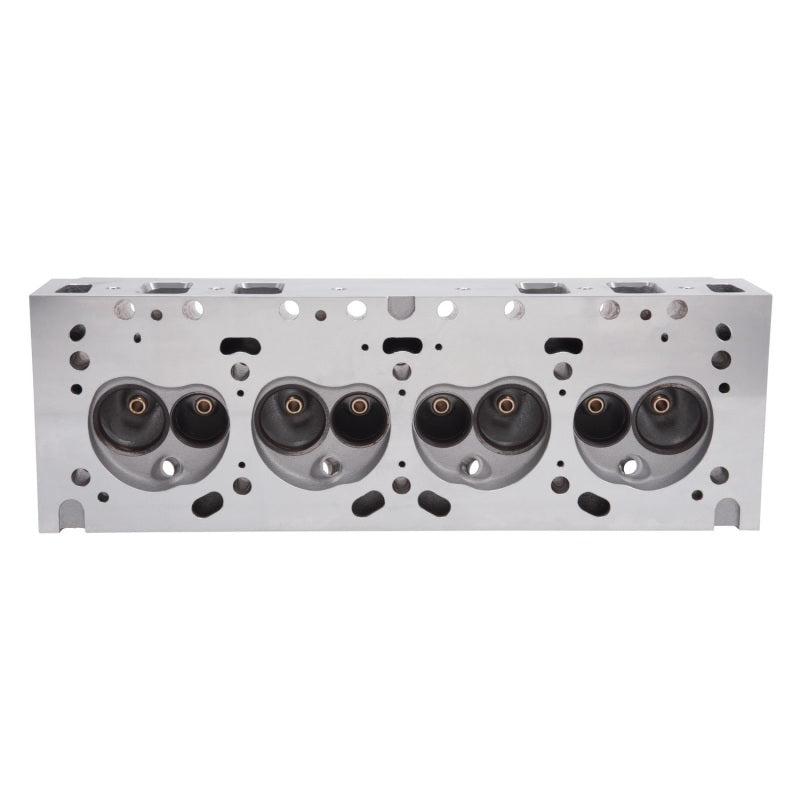

Edelbrock Single Performer RPM Olds Head Bare 60529
Edelbrock Single Performer RPM Olds Head Bare 60529
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyEDE Performer RPM Cyl Head
Engine Cylinder Head
Oldsmobile:Big-Block:400 (6.6L)/425 (7.0L)/455 (7.5L)
Cylinder Head Specifications: Combustion chamber volume: 77cc; Intake runner volume: 188cc; Exhaust runner volume: 106cc; Intake valve diameter: 2.072"; Exhaust valve diameter: 1.68"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 3/8"; Valve angle: 6°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Head bolt holes drilled for stock 7/16" bolts, but can be easily modified for 1/2" bolts or studs by drilling the 1/2" counter bore. Aftermarket 7/16"-stud rocker arms and 3/8" hardened pushrods required. Will fit 350-403 Olds with Edelbrock manifold #7111 only (port matching required). Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). Designed for high-performance non-emission 1965-76 Olds 400, 425 and 455 c.i.d. V8's. eart shaped chamber for a more efficient burn, outstanding horsepower and torque. Valvetrain has been upgraded from the factory pedestal-mount system to a 7/16" screw-in stud and 3/8" pushrod-slot guideplate for increased valvetrain stability. 60517 is not port matched or bowl blended and is NHRA-accepted for Super Stock (except 1968-1969 W-30) only. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). Head bolt holes drilled for stock 7/16" bolts, but can be easily modified for 1/2" bolts or studs by drilling the 1/2" counter bore. Aftermarket 7/16"-stud rocker arms and 3/8" hardened pushrods required. Replacement valve part numbers are for sets of 8.
Edelbrock Single Performer RPM Olds Head Bare
