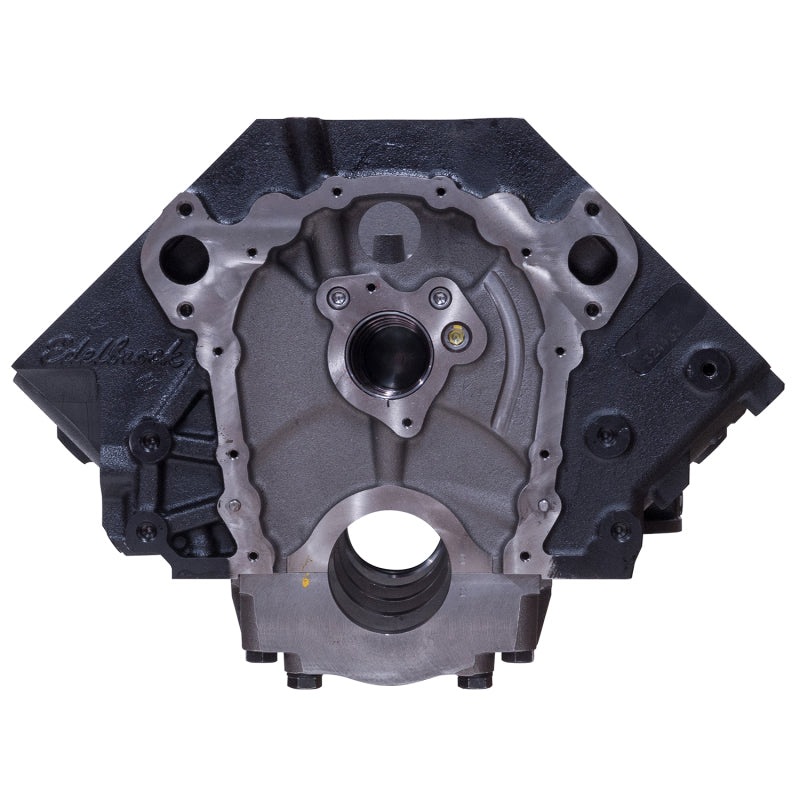

Edelbrock Engine Block GM BBC Siamese 4.50in Bore 9.80in Deck Height Cast Iron 2pc Rear Main 450000
Edelbrock Engine Block GM BBC Siamese 4.50in Bore 9.80in Deck Height Cast Iron 2pc Rear Main 450000
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyEDE Engine Block
Engine Block
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Edelbrock Part # 450000 Big-Block Chevy Cast Iron Engine Block is cast and machined in the U.S.A. and made to last. Being that Edelbrock engine blocks are cast and machined in the U.S.A. allows us to precision machine them to our very own specifications. Engine block part # 450000 is the perfect starting point for any Big-Block Chevy high performance engine build especially when used with an Edelbrock Total Power Package. When it comes to starting with the right base for your engine build... make sure to choose the one made right here in the U.S.A. Edelbrock part # 450000 Big-Block Chevy Cast Iron Engine Block is manufactured to the following specifications: " Block Type: Big-Block Chevy " Block Material: Cast Iron " Cylinder Wall: Siamese " Supplied Bore Size: 4.500" " Supplied Stroke Clearance: 4.500" " Max Recommended Bore: 4.600" " Max Recommended Stroke: 4.500" " Max Recommended C.I.: 598 " Deck Height: 9.800" " Cam Bearing Bore ID: 2.120" " Camshaft Position: Standard BBC " Head Bolt Pattern: Standard BBC " Inside Head Stud Bosses: Yes " Lifter Bores: Standard BBC " Main Bearing Size: Standard BBC " Main Bearing Bore: 2.9375" " Main Caps: 4 Bolt Splayed " Oil System: Main Priority " Oil Cooler Holes: Integral to Block " Rear Main Seal: 2-Piece " Hydraulic Roller Provisions: Accepts- Gen V, VI Link Bar " Stud and Bolt Holes: Blind Tapped " Tapped Holes: Standard Thread & Pitch " Timing Chain/Gears: Standard BBC Gen IV, V, VI " Timing Cover: Accepts- Mark IV 10 Bolt " Fuel Pump Boss: Yes " Starter: Standard Location " Clutch Linkage Boss: Yes
Engine Block Gm Bbc Siamese 4.50" Bore 9.80" Deck Height Cast Iron 2Pc Rear Main.
