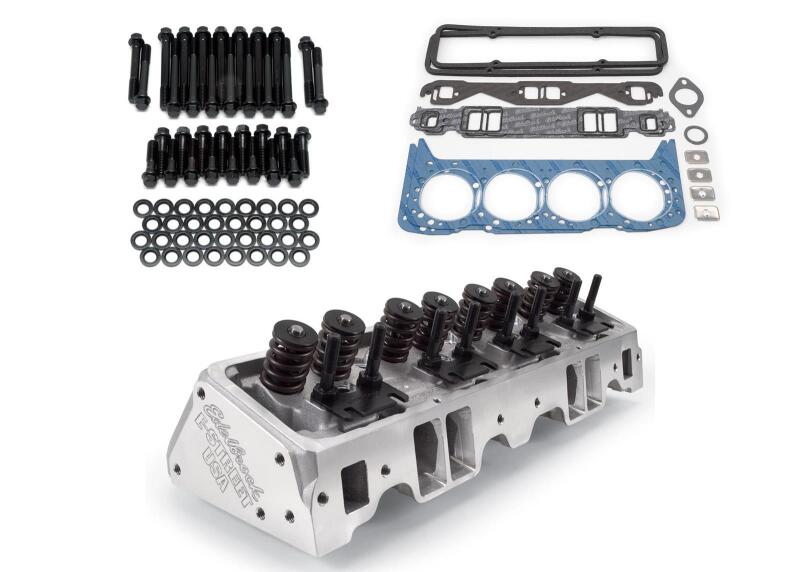

Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit 2240

EDE E-Street Cylinder Head

Engine Cylinder Head

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Cylinder Head Specifications: Combustion chamber volume: 70cc / 64cc; Intake runner volume: 185cc; Exhaust runner volume: 60cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.460"; Valve spring maximum lift: .550"; Rocker stud: 3/8" with guide plate; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 23°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles. | This Edelbrock cylinder head kit part #2240 is designed to include everything needed to successfully install a set of Edelbrock heads without having to hunt down the correct components. This will save the customer time and money and will give peace of mind knowing the correct items were chosen by our own Edelbrock Technical Staff.

Edelbrock Complete Small Block Chevy E-Street Cylinder Heads with Install kit | CYL HEAD SBC E-STREET WITH INSTALLATION KIT COMPLETE
