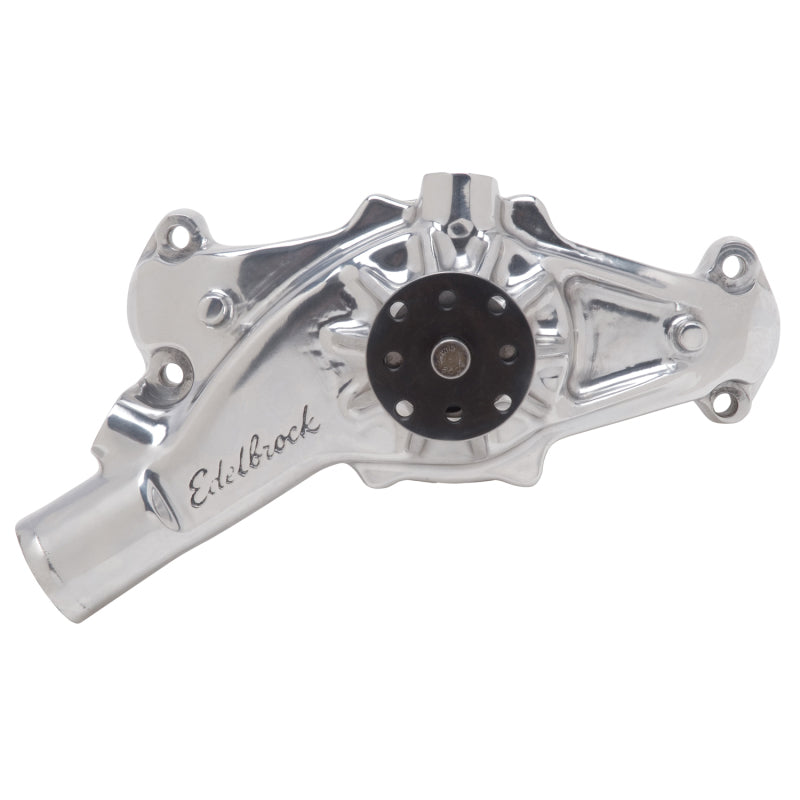

Edelbrock Water Pump, High Performance, Chevrolet, Universal 396-502 c.i.d V8

• Dimension from block surface to hub: 5-3/4"
• Inlet Diameter: 2"
• Pilot Shaft: 5/8"

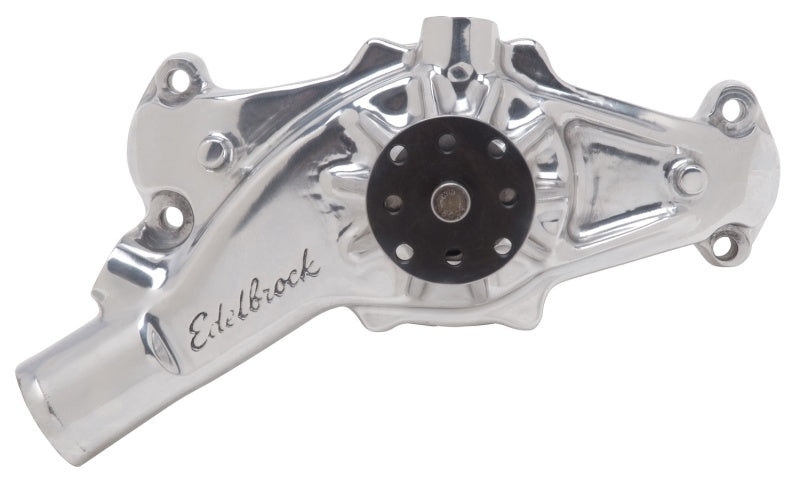

Victor Series Aluminum Water Pump

• 1965-Later Big Block Chevy 396-502ci
• Short-Style Pump
• Ideal for aftermarket Serpentine Belt Pulleys
• Reverse Rotation (Serpentine Drive)
• Polished Finish

Using state-of-the-art racing technology, Edelbrock has designed these ''super cooling'' Victor Series aluminum water pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high-performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and CNC-machined cast iron impeller produce the maximum flow rate possible. Edelbrock Victor Series Water Pump Features include: aircraft industry clearances; heavy-duty 3/4'' integral ball/roller bearings and billet steel hubs. All Edelbrock Chevrolet water pumps that may be used in race applications have a unique O-ring that provides a far superior seal than conventional gaskets. This exclusive O-ring minimizes clearance and maximizes flow for racing and heavy-duty applications. All Victor Series high-performance aluminum water pumps are extremely durable as well as efficient.
