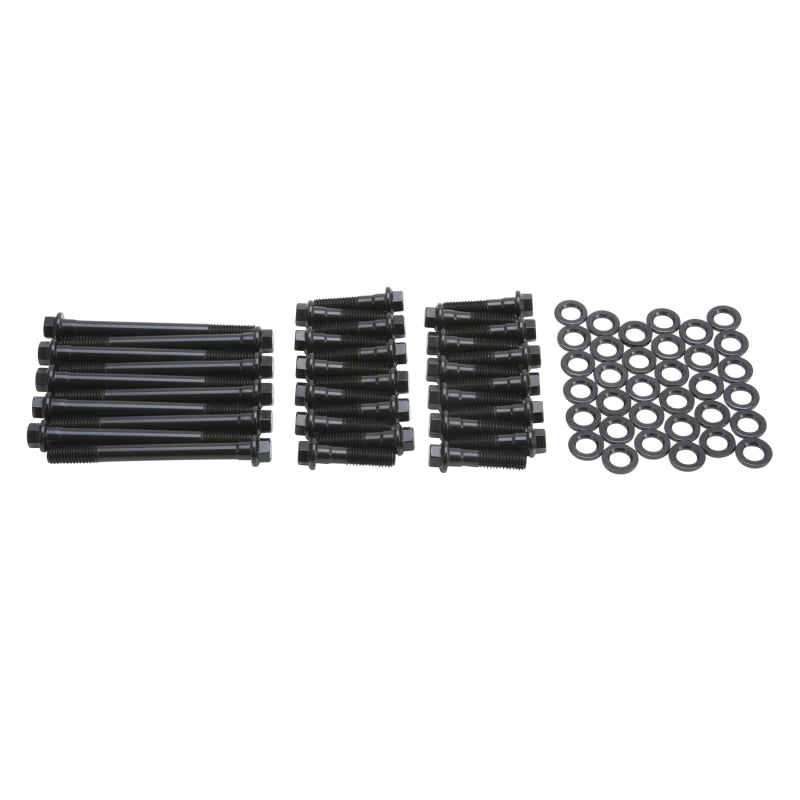

Edelbrock Big Block Chrysler Victor Head Bolt Kit for 77919/77929 Cylinder Head

• Application: Universal
• GTIN: 00085347085927
• Emissions Code: N/A
• Head Drive Type: Hex
• Length: 4.500 in
• Material: Chromoly

Installation Notes:

• The Edelbrock #8592 is made specifically for big block Chrysler with Victor series cylinder heads
• Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. Torque to 70 ft./lbs. in three steps (40, 55, 70) following the factory tightening sequence. Apply a continuous 1/8? bead of automotive RTV silicone sealer to end sealing surfaces on block and along bottom of intake ports on cylinder head. Also, apply a thin bead of sealer around intake ports on cylinder head and gasket. Position intake gasket thin valley cover in place and tighten bolts down. Then, place intake manifold in position and torque manifold bolts to 25 ft. lbs. Rocker shaft hold-down studs, nuts and washers, for 2 places marked (S) in each head, are supplied in this kit. Double nut both studs and screw them in until they reach the bottom. Install rocker shaft, factory concave washer and hard washer supplied with this kit. Apply 30W oil to fine threads and under nuts and washers and torque nuts to 25 ft./lbs. A head bolt re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling).
