Edelbrock

Edelbrock Head Bolt Kit For Edel Perf D-port Pontiac Cyl Head

SKU: 0E5C7 | MPN:  8561
Usually Ships in 10-14 Days
Sale price$189.08 USD

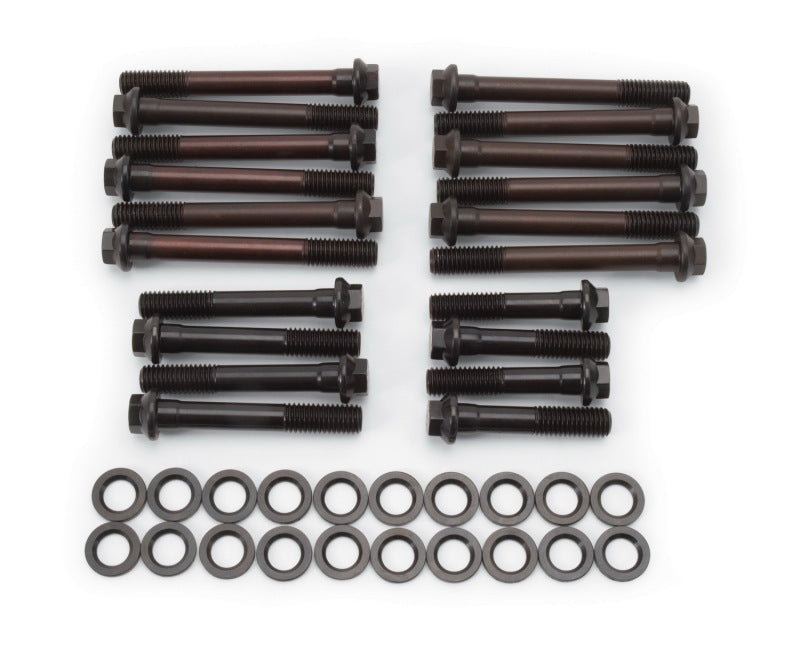

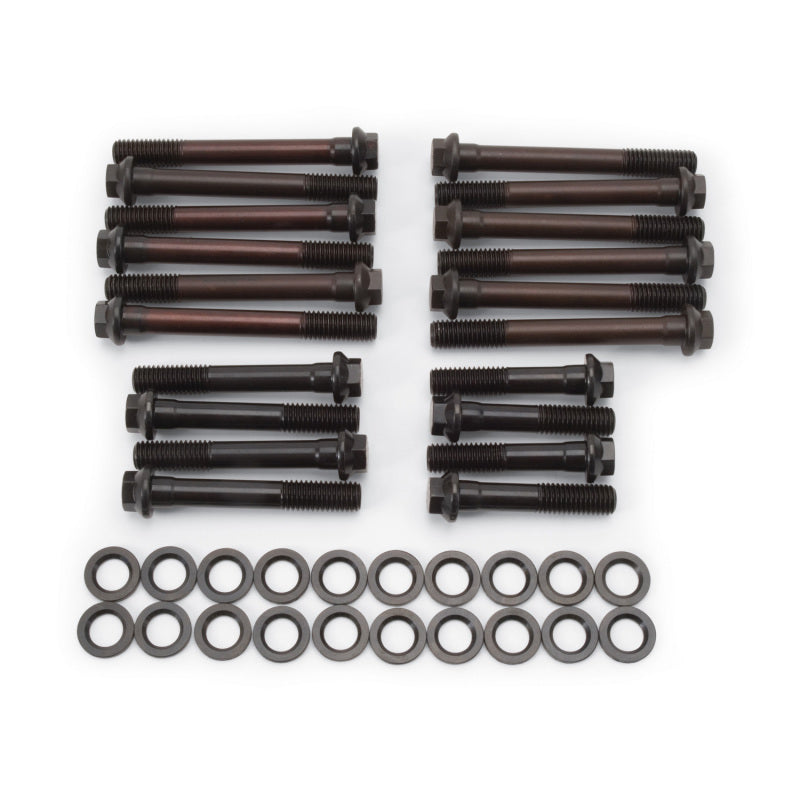

The Edelbrock #8561 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.

SPECS

Application Universal
Installation Notes
  • The Edelbrock #8561 is made specifically for Pontiac V8
  • Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. For 389-455 engines, use Edelbrock #7381, Fel-Pro #1016 or equivalent head gaskets.
  • NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. This gasket set includes all necessary gaskets for cylinder head installation, including cylinder head, intake, exhaust, water neck and valve cover gaskets.
  • Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation.
  • Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads, washers, and underside of bolt heads with motor oil for accurate torque readings.
  • Torque upper row of bolts to 105 ft. /lbs., torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends.
  • A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling).
Head Drive Type Hex
Length 4.250 in
Material
