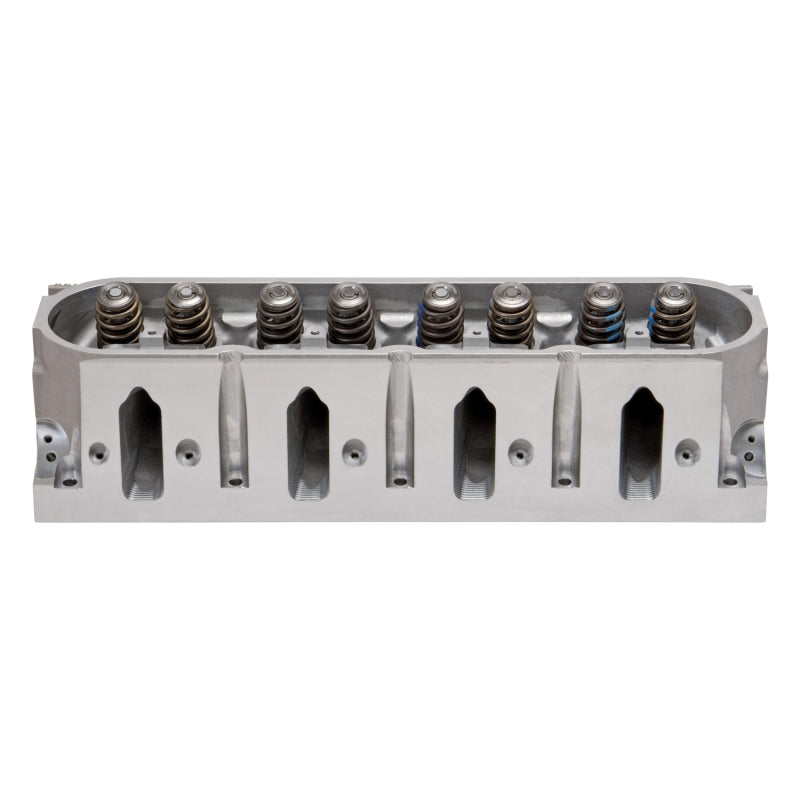

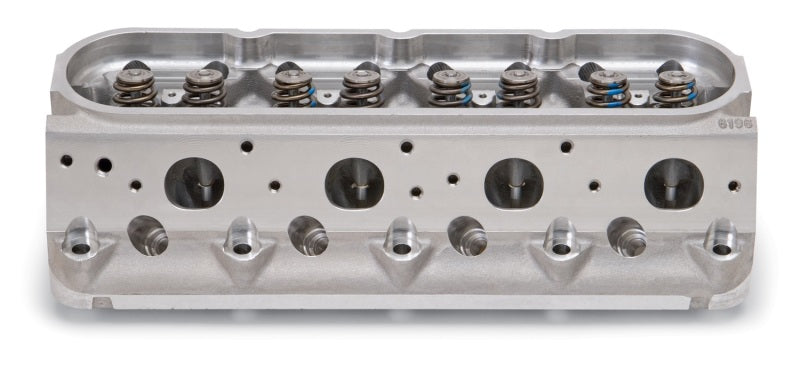

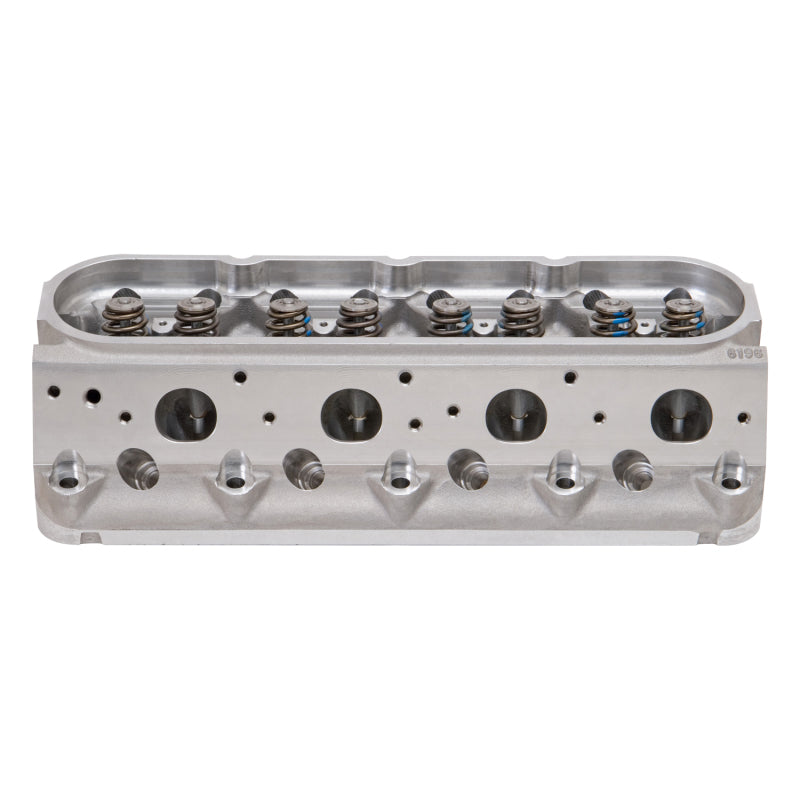

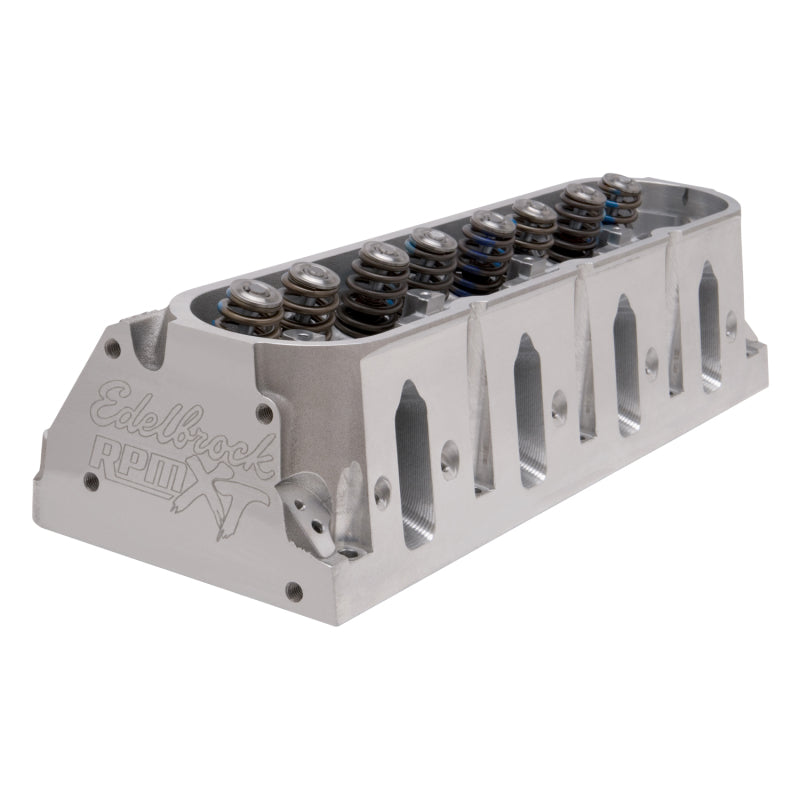

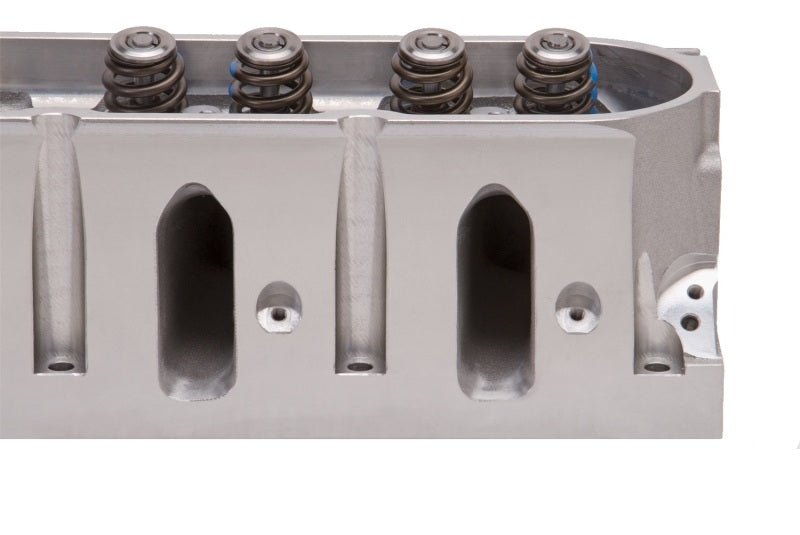

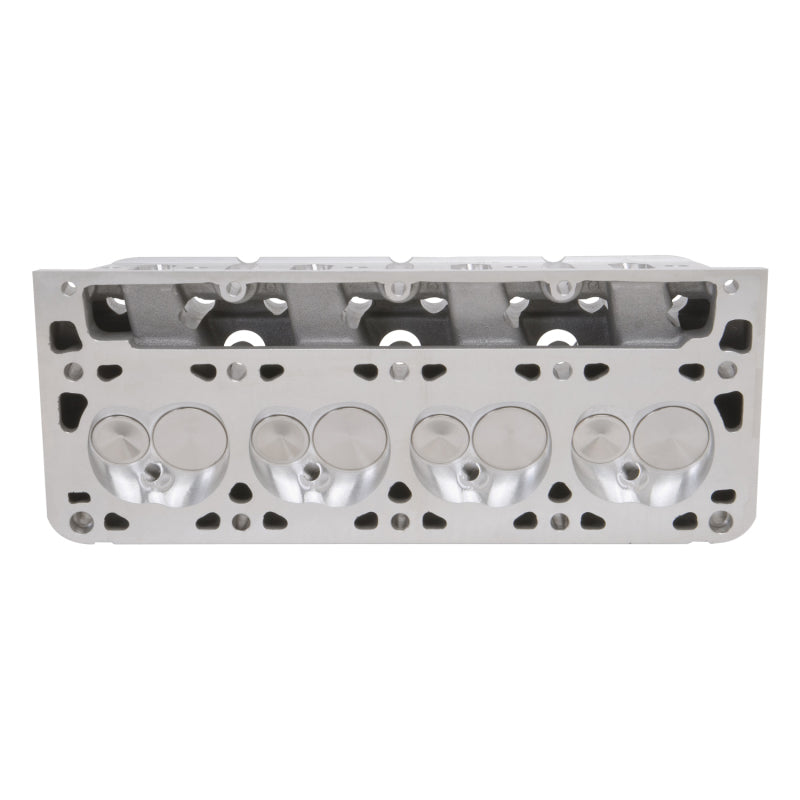

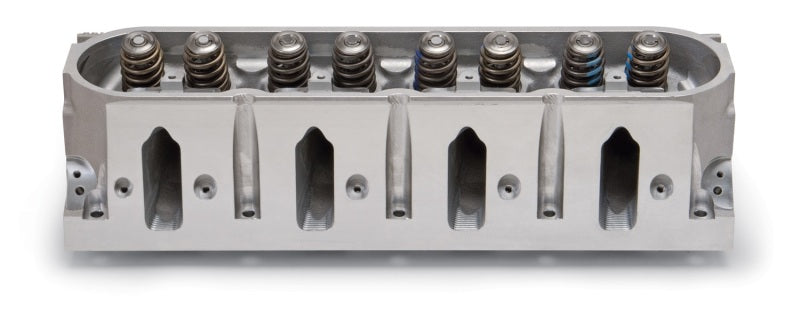

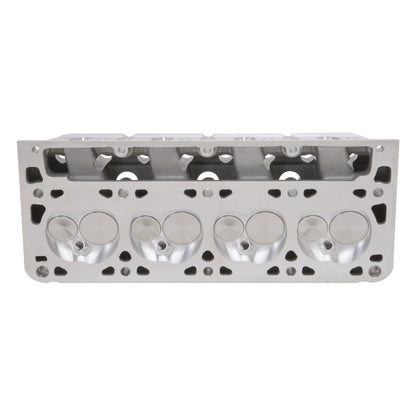

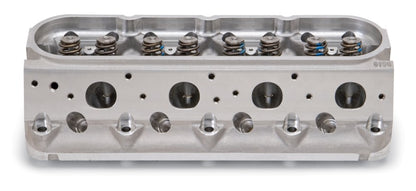

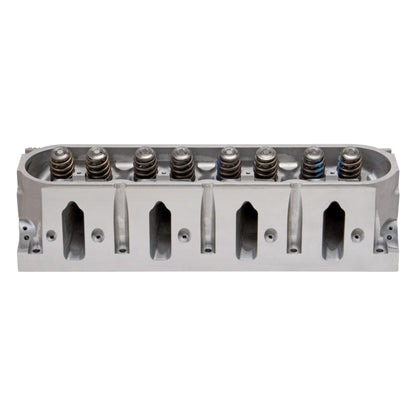

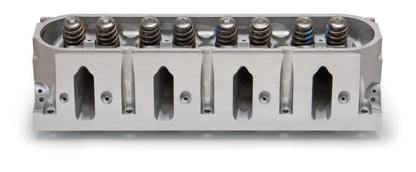

Edelbrock Cylinder Head,E-CNC 212, GM, Gen III LS, Complete

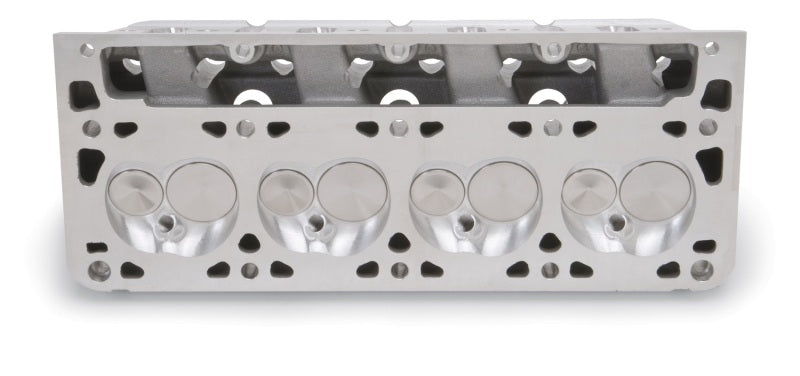

The Edelbrock 79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder heads were designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. All E-CNC Cylinder Heads feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved these heads are capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600" valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit #8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.
Specifications
Combustion Chamber Volume: 65.0 cc
Deck Height: 9.240 in
Deck Thickness: 0.625 in
Exhaust Valve Diameter: 1.570 in
Intake Runner Volume: 215.0 cc
Intake Valve Diameter: 2.020 in
Material: Aluminum
Valve Angle: 15 deg
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001 - 2004 | Avanti | II | Base |
| 2006 - 2007 | Cadillac | CTS | Base, V |
| 2011 - 2012 | Chevrolet | Camaro | 1SS, 2SS, 1LT |
| 2010 - 2015 | Chevrolet | Camaro | LT, LS, SS |
| 1998 | Chevrolet | Camaro | Lujo |
| 2014 - 2015 | Chevrolet | Camaro | Z/28 |
| 1998 - 2002 | Chevrolet | Camaro | Z28 SS, Base, Z28 |
| 2012 - 2015 | Chevrolet | Camaro | ZL1 |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2013 | Chevrolet | Corvette | 427, LT |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car, 50th Anniversary Edition |
| 1997 - 2013 | Chevrolet | Corvette | Base |
| 2010 - 2013 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001 - 2013 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2009 - 2013 | Chevrolet | Corvette | ZR1 |
| 2014 - 2017 | Chevrolet | SS | Base |
| 2005 - 2006 | Chevrolet | SSR | Base |
| 2006 - 2008 | Chevrolet | Trailblazer | Base |
| 2006 - 2007 | Chevrolet | Trailblazer | LS, A, B |
| 2006 - 2009 | Chevrolet | Trailblazer | LT, SS |
| 1998 - 2002 | Pontiac | Firebird | Trans Am, Formula, Base |
| 2009 | Pontiac | G8 | GT, GXP, Base |
| 2004 - 2006 | Pontiac | GTO | Base |
