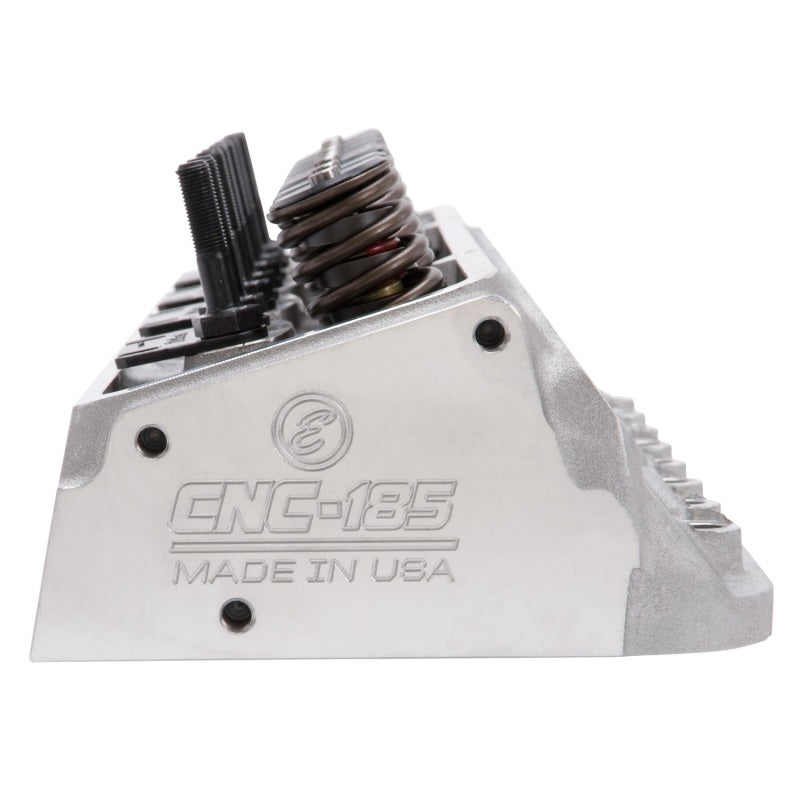

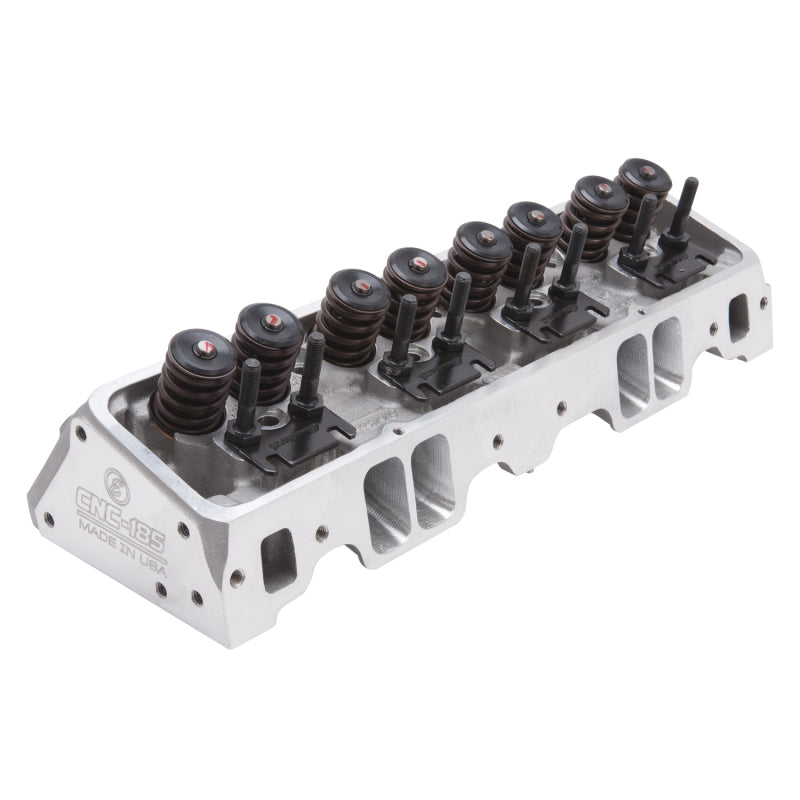

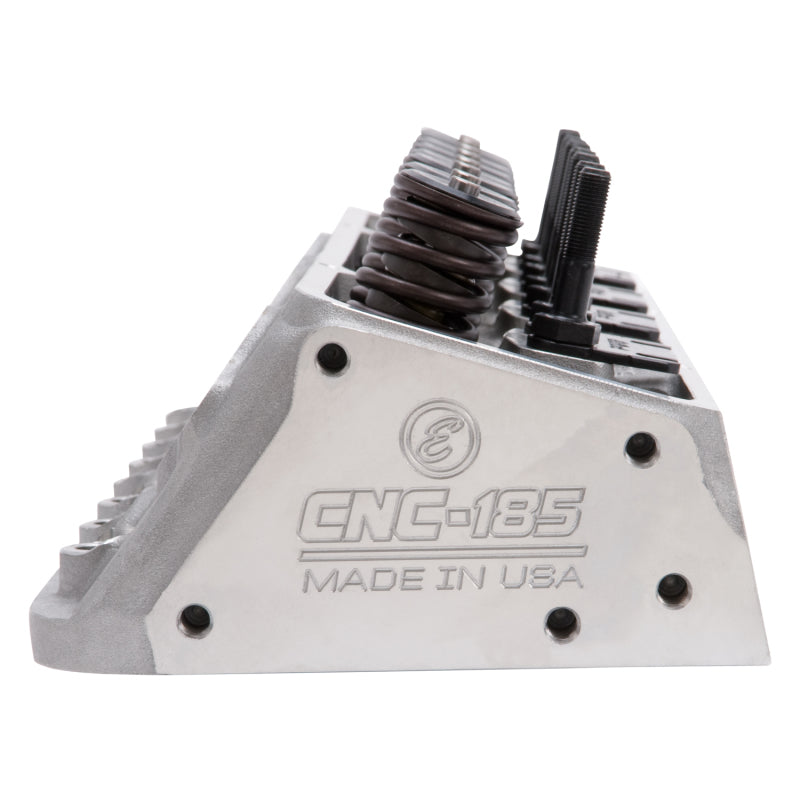

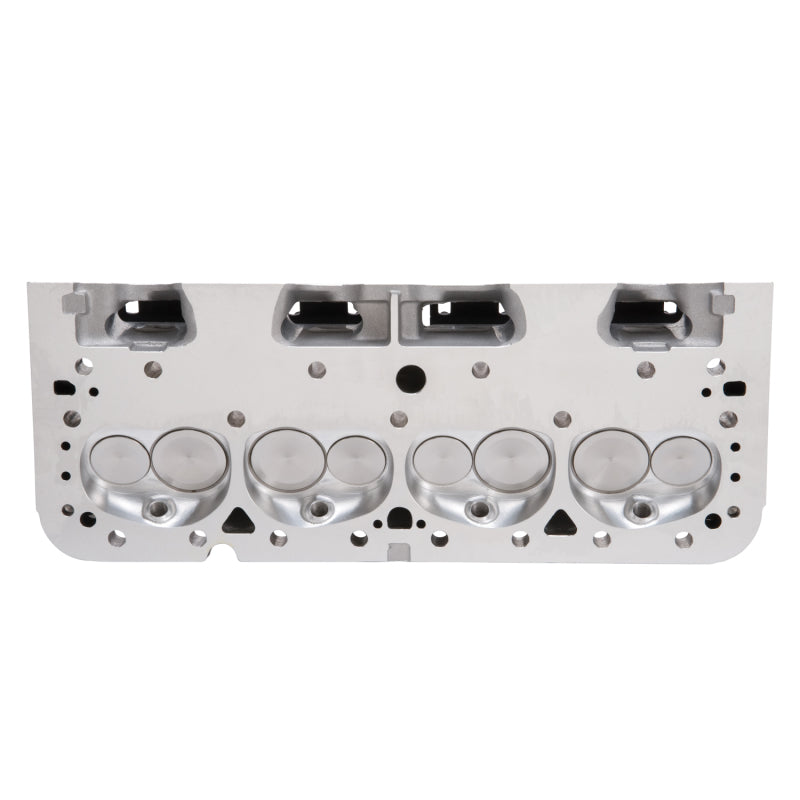

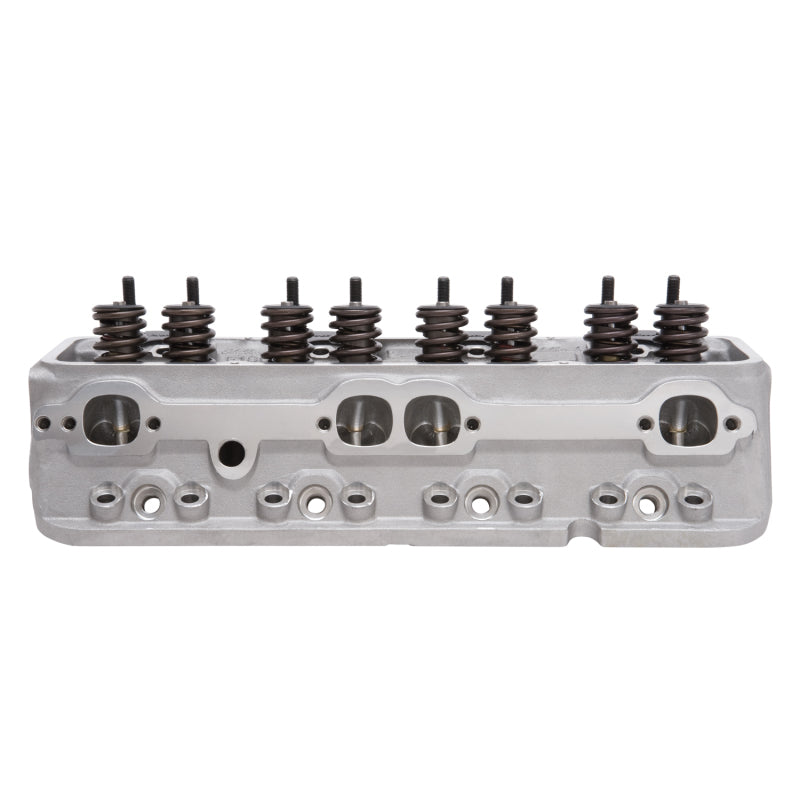

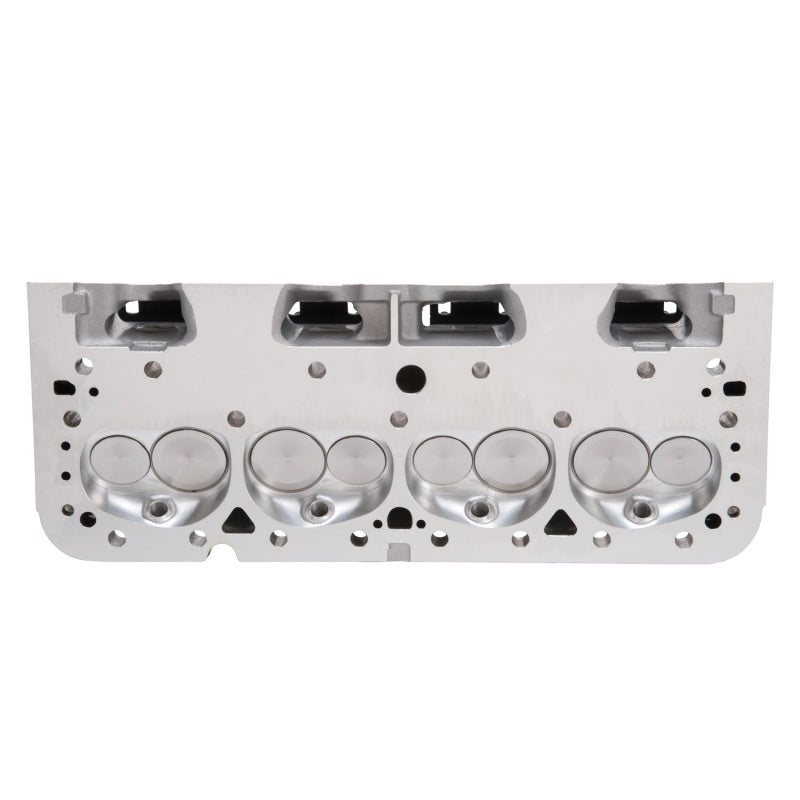

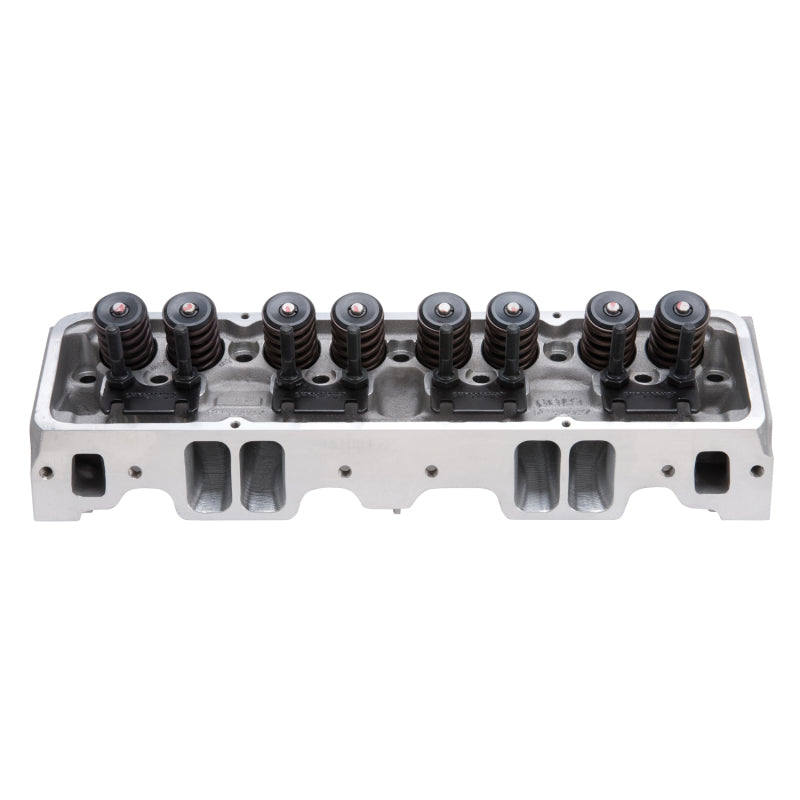

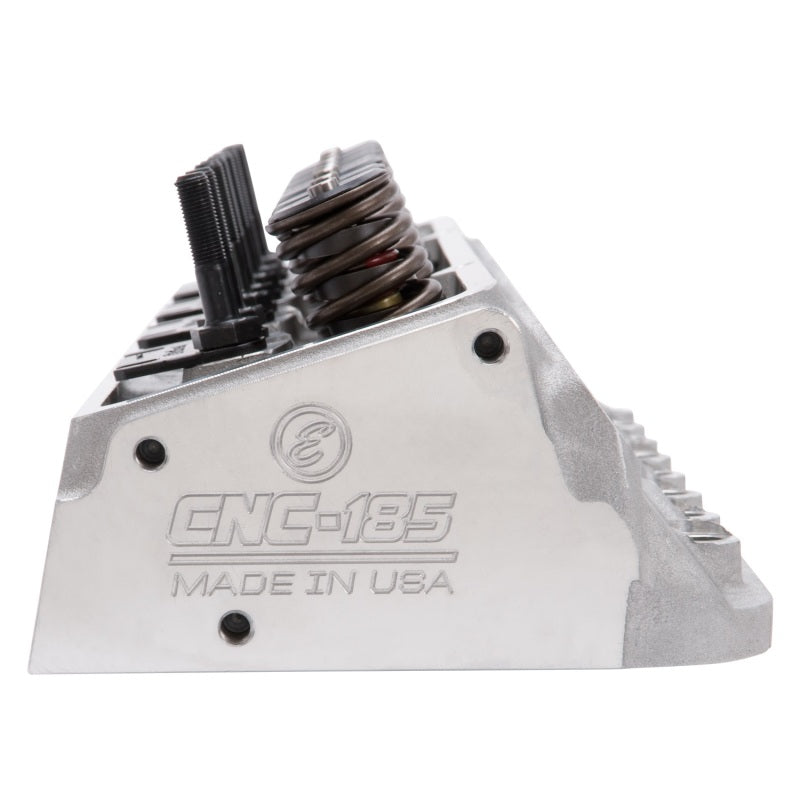

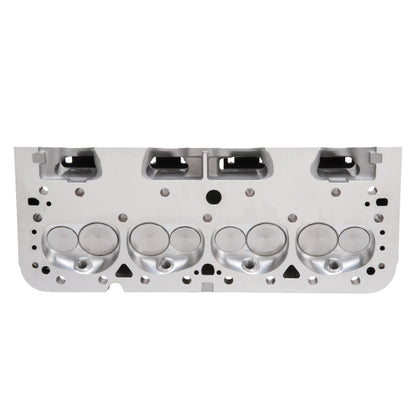

Edelbrock Cylinder Head, SBC, E-CNC 185, 64CC, Straight Plug for Hydraulic Roll.
E-CNC Small-Block Chevy 64cc Cylinder Head Hydraulic Roller Camshaft

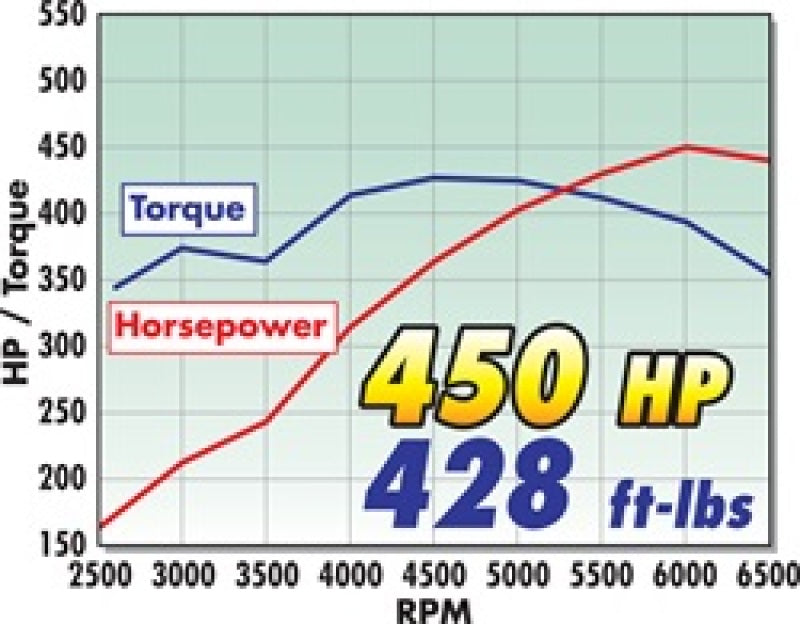

The Edelbrock part # 79895 Small Block Chevy E-CNC cylinder heads offer the ultimate performance. These cylinder heads are fully CNC ported for maximum horsepower and torque, making them ideal for high-performance street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23° valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over Performer RPM Cylinder Heads - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high performance street and racing applications.
Specs:
- Application: Universal
- GTIN: 00085347798957
- Combustion Chamber Volume: 64.0 cu.in
- Deck Height: 9.025 in
- Deck Thickness: 0.562 in
- Exhaust Valve Diameter: 1.600 in
- Guide Plates Included: Yes
- Intake Runner Volume: 185.0 cu.in
- Intake Valve Diameter: 2.020 in
- Material: Aluminum
- Push Rod Diameter: 0.312 in
- Rocker Stud Diameter: 0.375 in
- Valve Angle: 23 deg
- Valve Spring Diameter: 1.460 in
- Valve Spring Maximum Lift: 0.575 in
- Valve Stem Diameter: 0.341 in
Installation Notes:
- Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1980 | Avanti | II | Base |
| 1980 | Buick | Century | Sport, Base, Limited, Estate |
| 1991 - 1993 | Buick | Commercial Chassis | Base |
| 1980 | Buick | Regal | Limited, Base, Sport |
| 1992 - 1993 | Buick | Roadmaster | Base, Limited |
| 1991 - 1993 | Buick | Roadmaster | Estate Wagon |
| 1980 - 1982 | Checker | Marathon | Base, Deluxe |
| 1980 | Chevrolet | C10 | Big Ten, Custom Deluxe |
| 1980 - 1981 | Chevrolet | C10 | Cheyenne |
| 1980 - 1986 | Chevrolet | C10 | Custom, Scottsdale, Silverado |
| 1981 | Chevrolet | C10 | Deluxe |
| 1981 - 1986 | Chevrolet | C10 Suburban | Custom |
| 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | C10 Suburban | Scottsdale, Silverado |
| 1986 | Chevrolet | C20 | Base |
| 1980 - 1986 | Chevrolet | C20 | Cheyenne, Scottsdale, Silverado |
| 1981 - 1986 | Chevrolet | C20 | Custom |
| 1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1981 - 1986 | Chevrolet | C20 Suburban | Custom |
| 1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | C20 Suburban | Scottsdale, Silverado |
| 1980 - 1982 | Chevrolet | C30 | Base |
| 1980 - 1981 | Chevrolet | C30 | Cheyenne |
| 1981 - 1986 | Chevrolet | C30 | Custom |
| 1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1980 - 1986 | Chevrolet | C30 | Silverado, Scottsdale |
| 1980 | Chevrolet | Camaro | Base, Rally Sport |
| 1985 - 1986 | Chevrolet | Camaro | Iroc-Z |
| 1981 - 1986 | Chevrolet | Camaro | Sport |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1980 - 1986 | Chevrolet | Camaro | Z28, Berlinetta |
| 1986 | Chevrolet | Caprice | Classic Brougham |
| 1981 - 1982 | Chevrolet | Caprice | Classic Estate |
| 1980 - 1981 | Chevrolet | Caprice | Classic Landau |
| 1980 | Chevrolet | Caprice | Classic Sport |
| 1980 - 1986 | Chevrolet | Caprice | Classic, Base |
| 1980 - 1986 | Chevrolet | Corvette | Base |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1980 - 1986 | Chevrolet | El Camino | Base, SS |
| 1981 - 1986 | Chevrolet | El Camino | Conquista |
| 1980 - 1981 | Chevrolet | El Camino | Royal Knight |
| 1983 | Chevrolet | G10 | Base |
| 1981 - 1986 | Chevrolet | G10 | Bonaventure |
| 1980 - 1986 | Chevrolet | G10 | Chevy Van, Beauville, Sportvan |
| 1983 - 1984 | Chevrolet | G20 | Bonaventure |
| 1980 - 1981 | Chevrolet | G20 | Nomad |
| 1980 - 1986 | Chevrolet | G20 | Sportvan, Chevy Van, Beauville |
| 1983 - 1984 | Chevrolet | G30 | Bonaventure |
| 1980 - 1986 | Chevrolet | G30 | Chevy Van, Beauville, Sportvan, Hi-Cube |
| 1980 - 1985 | Chevrolet | Impala | Base |
| 1981 - 1982 | Chevrolet | Impala | Estate |
| 1980 | Chevrolet | Impala | Sport |
| 1980 - 1981 | Chevrolet | K10 | Cheyenne |
| 1981 - 1986 | Chevrolet | K10 | Custom |
| 1980 | Chevrolet | K10 | Custom Deluxe |
| 1981 | Chevrolet | K10 | Deluxe |
| 1980 - 1986 | Chevrolet | K10 | Silverado, Scottsdale |
| 1981 - 1986 | Chevrolet | K10 Suburban | Custom |
| 1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K10 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | K10 Suburban | Silverado, Scottsdale |
| 1980 - 1981 | Chevrolet | K20 | Cheyenne |
| 1981 - 1986 | Chevrolet | K20 | Custom |
| 1980 | Chevrolet | K20 | Custom Deluxe |
| 1981 | Chevrolet | K20 | Deluxe |
| 1980 - 1986 | Chevrolet | K20 | Scottsdale, Silverado |
| 1981 - 1986 | Chevrolet | K20 Suburban | Custom |
| 1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K20 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | K20 Suburban | Silverado, Scottsdale |
| 1980 - 1981 | Chevrolet | K30 | Cheyenne |
| 1981 - 1986 | Chevrolet | K30 | Custom |
| 1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1980 - 1986 | Chevrolet | K30 | Silverado, Scottsdale |
| 1980 | Chevrolet | K5 Blazer | Cheyenne, Custom Deluxe |
| 1981 - 1986 | Chevrolet | K5 Blazer | Custom |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1984 | Chevrolet | K5 Blazer | Scottsdale |
| 1980 - 1986 | Chevrolet | K5 Blazer | Silverado |
| 1980 - 1983 | Chevrolet | Malibu | Classic |
| 1980 | Chevrolet | Malibu | Classic Estate, Classic Sport, Estate, Sport |
| 1980 - 1981 | Chevrolet | Malibu | Classic Landau, Base |
| 1981 - 1986 | Chevrolet | Monte Carlo | Base |
| 1983 | Chevrolet | Monte Carlo | CL |
| 1980 - 1981 | Chevrolet | Monte Carlo | Landau |
| 1986 | Chevrolet | Monte Carlo | LS |
| 1980 | Chevrolet | Monte Carlo | Sport |
| 1983 - 1986 | Chevrolet | Monte Carlo | SS |
| 1986 - 1989 | Excalibur | Phaeton | Base |
| 1980 | GMC | C1500 | Heavy Half |
| 1980 - 1986 | GMC | C1500 | Sierra Classic, Base, High Sierra |
| 1980 - 1982 | GMC | C1500 | Sierra Grande, Street Coupe |
| 1980 - 1986 | GMC | C1500 Suburban | Sierra Classic, Base, High Sierra |
| 1980 - 1982 | GMC | C1500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | C2500 | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | C2500 | Sierra Grande |
| 1980 - 1986 | GMC | C2500 Suburban | Base, High Sierra, Sierra Classic |
| 1980 - 1982 | GMC | C2500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | C3500 | Base, High Sierra, Sierra Classic |
| 1980 - 1982 | GMC | C3500 | Sierra Grande |
| 1981 - 1986 | GMC | Caballero | Amarillo |
| 1980 - 1986 | GMC | Caballero | Diablo, Base |
| 1980 | GMC | Caballero | Laredo |
| 1981 | GMC | Caballero | Royal Knight, Conquista |
| 1983 - 1984 | GMC | G1500 | Rally Custom |
| 1980 - 1986 | GMC | G1500 | Rally, Vandura, Rally STX |
| 1983 - 1984 | GMC | G2500 | Rally Custom |
| 1980 - 1986 | GMC | G2500 | Rally STX, Rally, Vandura |
| 1980 - 1988 | GMC | G3500 | Rally Camper Special, Vandura Special, Rally, Vandura, Magnavan, Rally STX |
| 1981 - 1988 | GMC | G3500 | Rally Custom |
| 1980 - 1985 | GMC | Jimmy | High Sierra |
| 1980 - 1986 | GMC | Jimmy | Sierra Classic, Base |
| 1986 | GMC | Jimmy | Silverado |
| 1980 - 1982 | GMC | Jimmy | Street Coupe, Sierra Grande |
| 1980 - 1986 | GMC | K1500 | Base, Sierra Classic, High Sierra |
| 1980 - 1982 | GMC | K1500 | Sierra Grande |
| 1980 - 1986 | GMC | K1500 Suburban | Sierra Classic, High Sierra, Base |
| 1980 - 1982 | GMC | K1500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | K2500 | Sierra Classic, High Sierra, Base |
| 1980 - 1982 | GMC | K2500 | Sierra Grande |
| 1980 - 1986 | GMC | K2500 Suburban | Sierra Classic, High Sierra, Base |
| 1980 - 1982 | GMC | K2500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | K3500 | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | K3500 | Sierra Grande |
| 1980 | Oldsmobile | Cutlass | Base, Brougham, LS |
| 1980 | Oldsmobile | Cutlass Calais | Base |
| 1980 - 1982 | Oldsmobile | Cutlass Cruiser | Base |
| 1980 | Oldsmobile | Cutlass Cruiser | Brougham |
| 1980 | Oldsmobile | Cutlass Salon | Base, Brougham |
| 1980 | Oldsmobile | Cutlass Supreme | Base, Brougham |
| 1983 - 1986 | Pontiac | Bonneville | Brougham, Base |
| 1984 - 1986 | Pontiac | Bonneville | LE |
| 1980 - 1981 | Pontiac | Firebird | Formula, Esprit |
| 1982 - 1986 | Pontiac | Firebird | S/E |
| 1980 - 1986 | Pontiac | Firebird | Trans Am, Base |
| 1980 | Pontiac | Grand Am | Base |
| 1980 | Pontiac | Grand LeMans | Base, LE, Safari |
| 1980 - 1986 | Pontiac | Grand Prix | Base |
| 1983 - 1986 | Pontiac | Grand Prix | Brougham |
| 1984 - 1986 | Pontiac | Grand Prix | LE |
| 1980 - 1983 | Pontiac | Grand Prix | LJ |
| 1980 | Pontiac | Grand Prix | SJ |
| 1980 | Pontiac | LeMans | Base, Safari |
| 1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
Edelbrock Cylinder Head, SBC, E-CNC 185, 64CC, Straight Plug for Hydraulic Roll.
Sale price$1,210.00 USD
