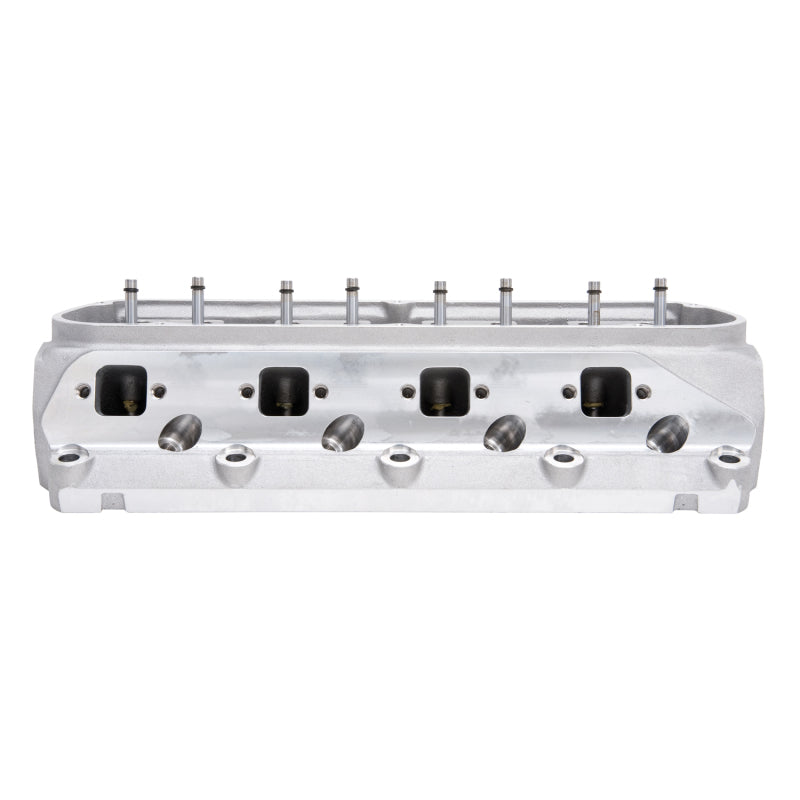

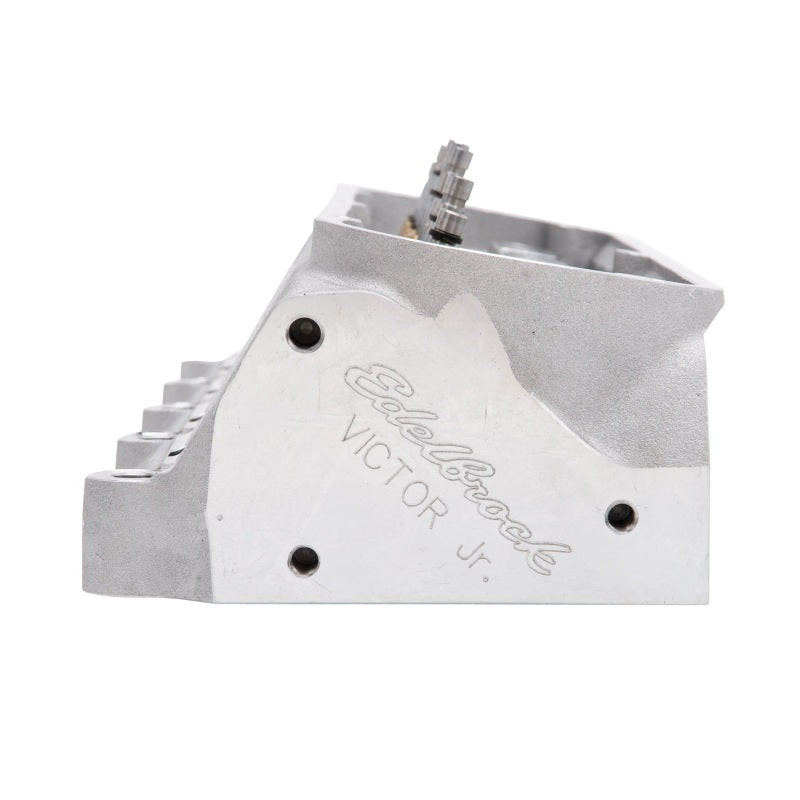

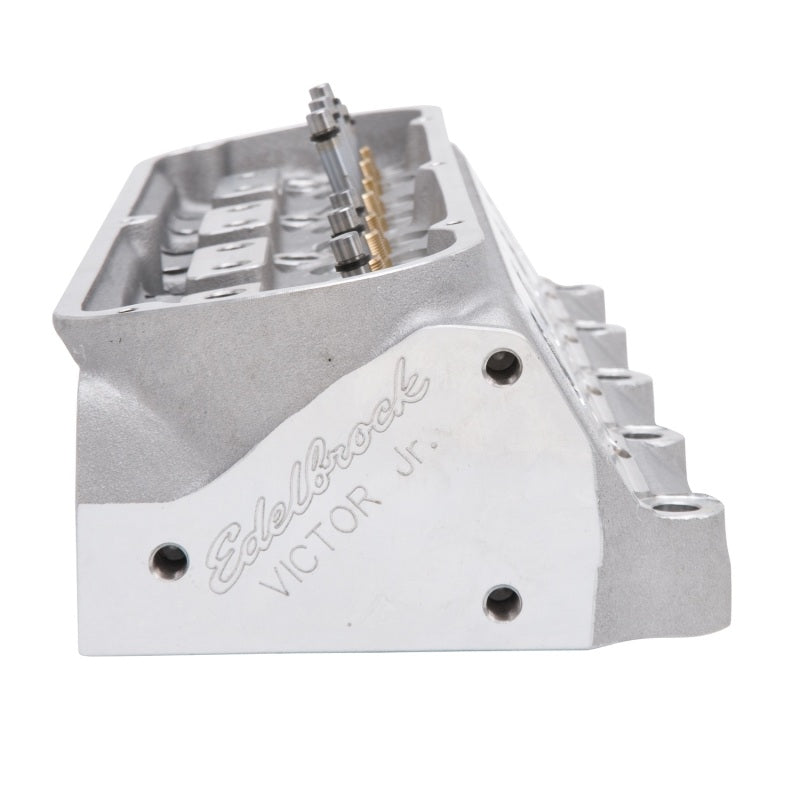

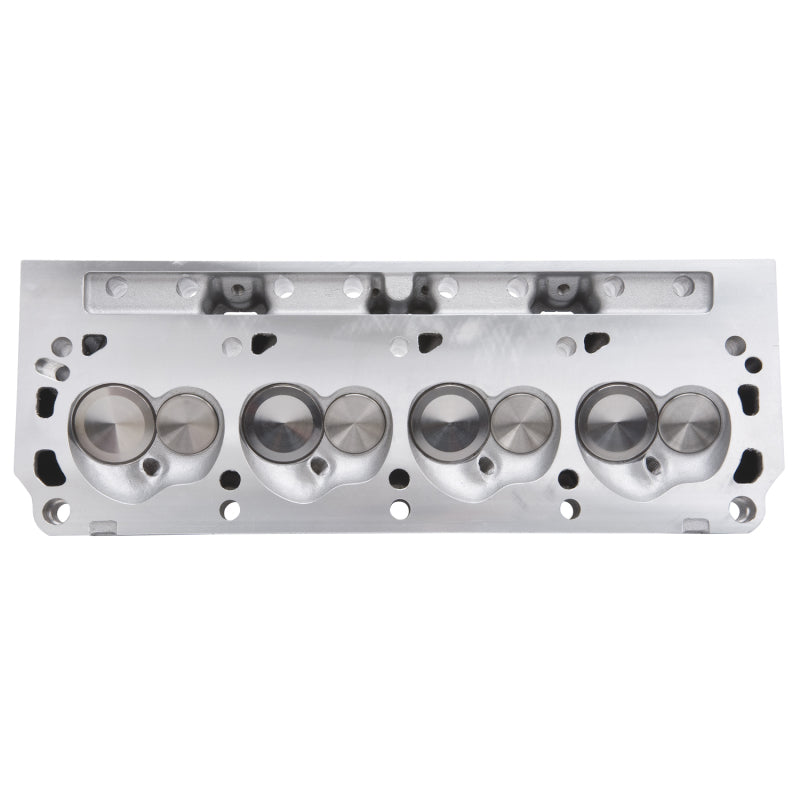

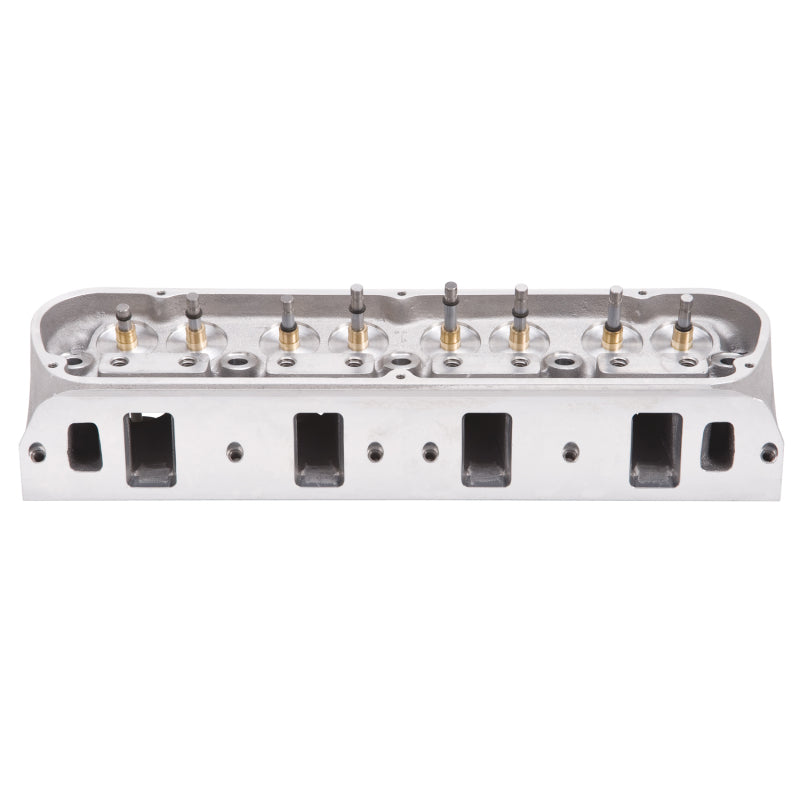

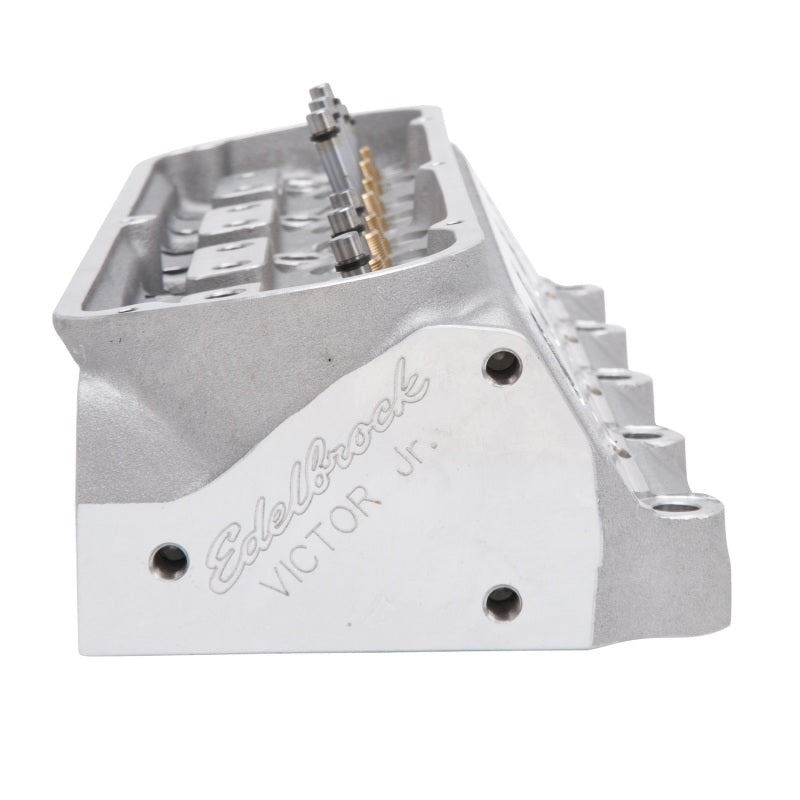

Edelbrock Single Victor JR 289-351W; W/Valves Head
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
The Edelbrock Victor Jr. Small Block Ford cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20° - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing heads
Specs:
CNC Ported | No |
---|---|
Combustion Chamber Volume | 60.0 cc |
Deck Height | 8.2 in |
Deck Thickness | 0.625 in |
Exhaust Valve Diameter | 1.600 in |
Guide Plates Included | Yes |
Intake Runner Volume | 210.0 cc |
Intake Valve Diameter | 2.050 in |
Material | Aluminum |
Push Rod Diameter | 0.312 in |
Rocker Stud Diameter | 0.437 in |
Valve Angle | 20 deg |
Valve Stem Diameter | 0.341 in |
