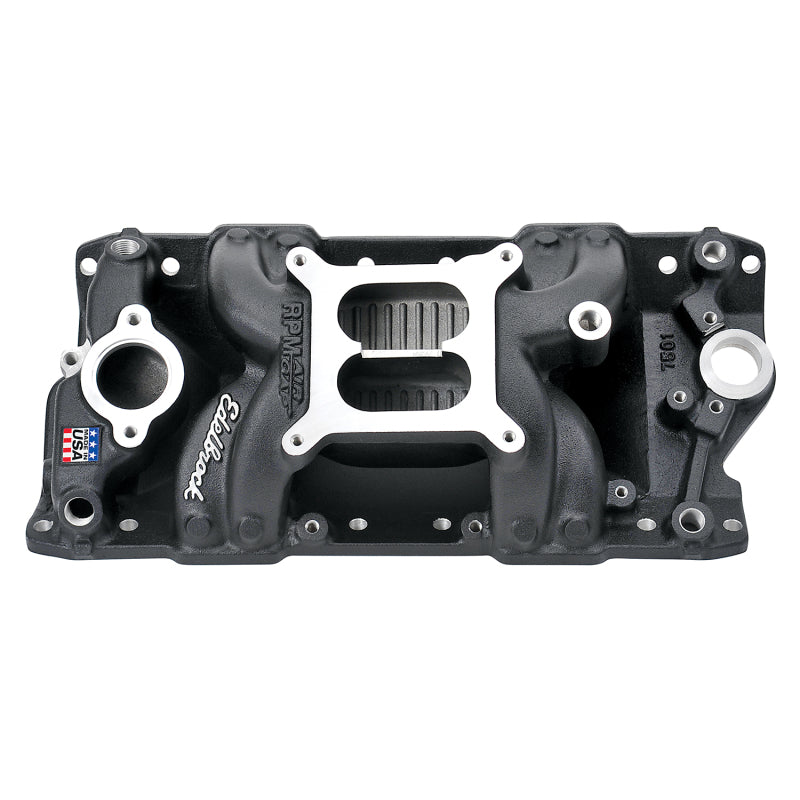

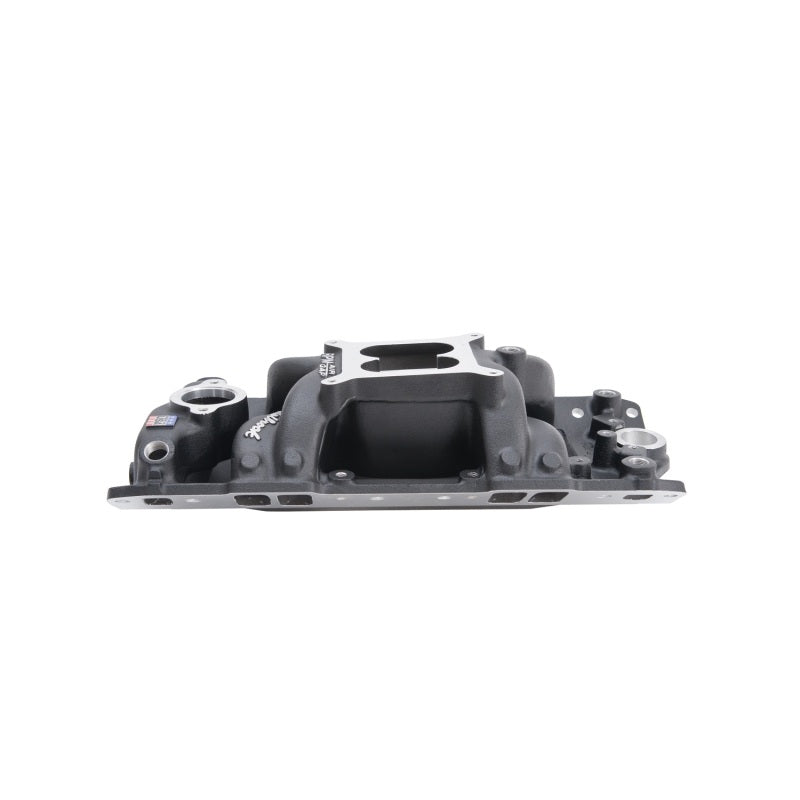

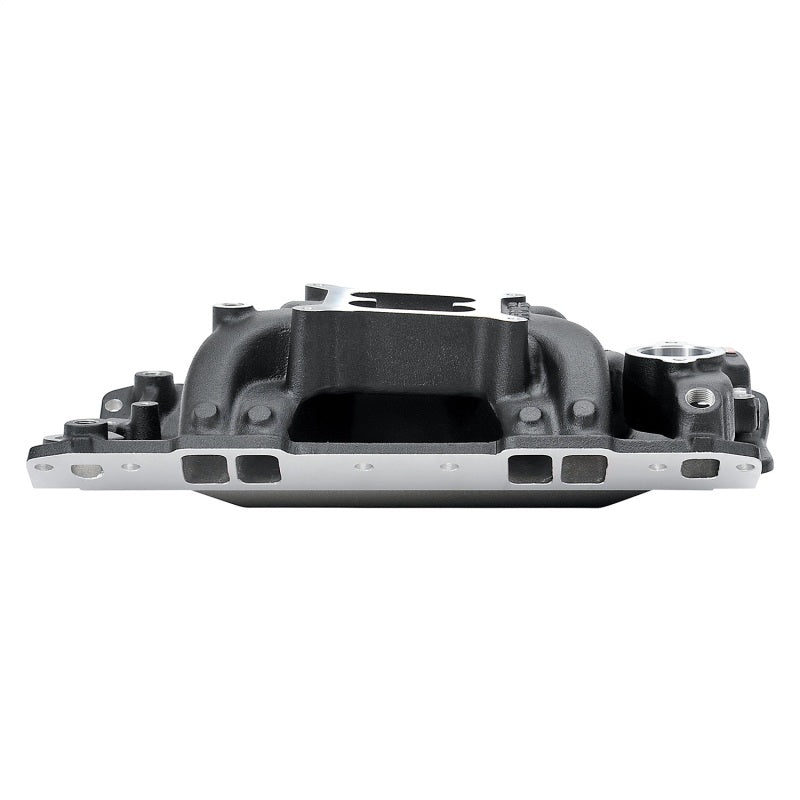

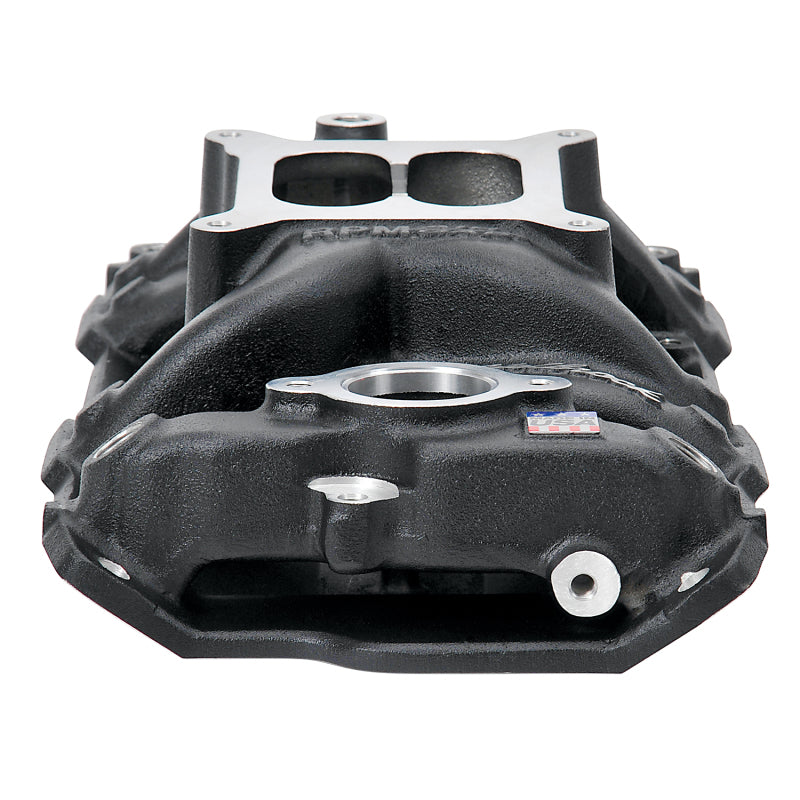

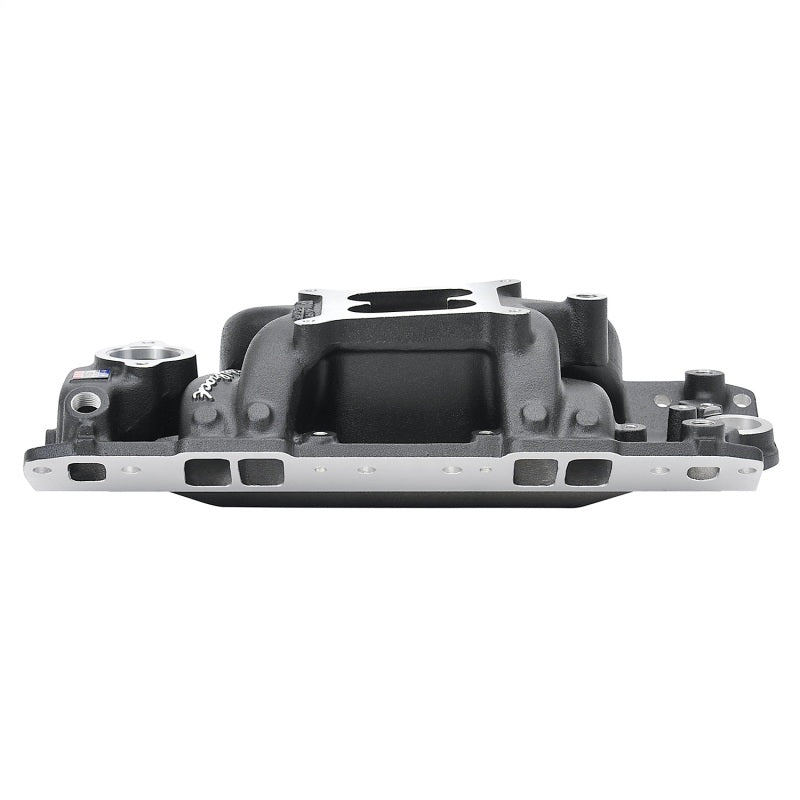

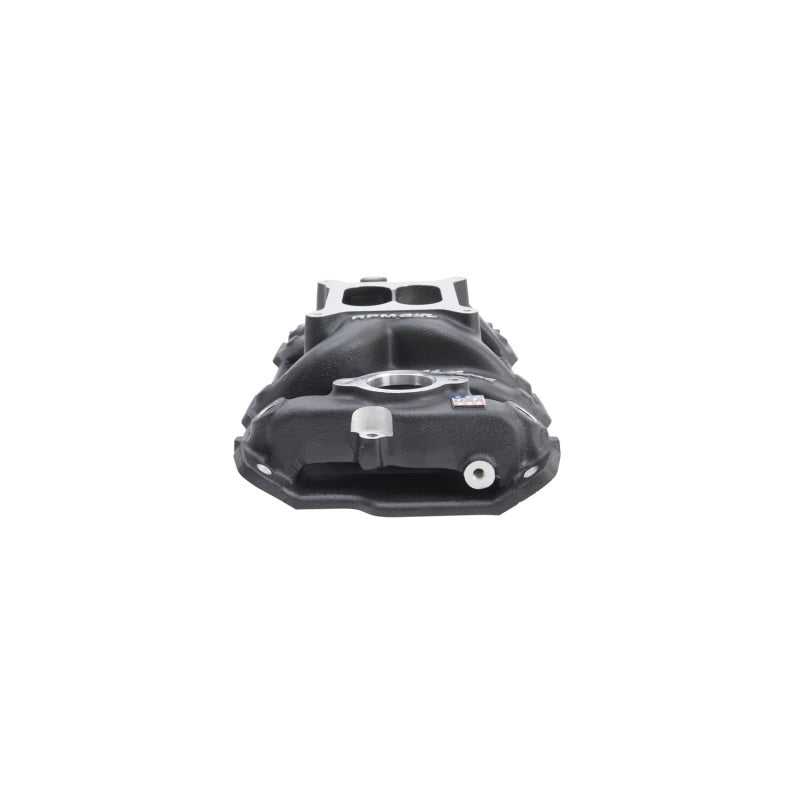

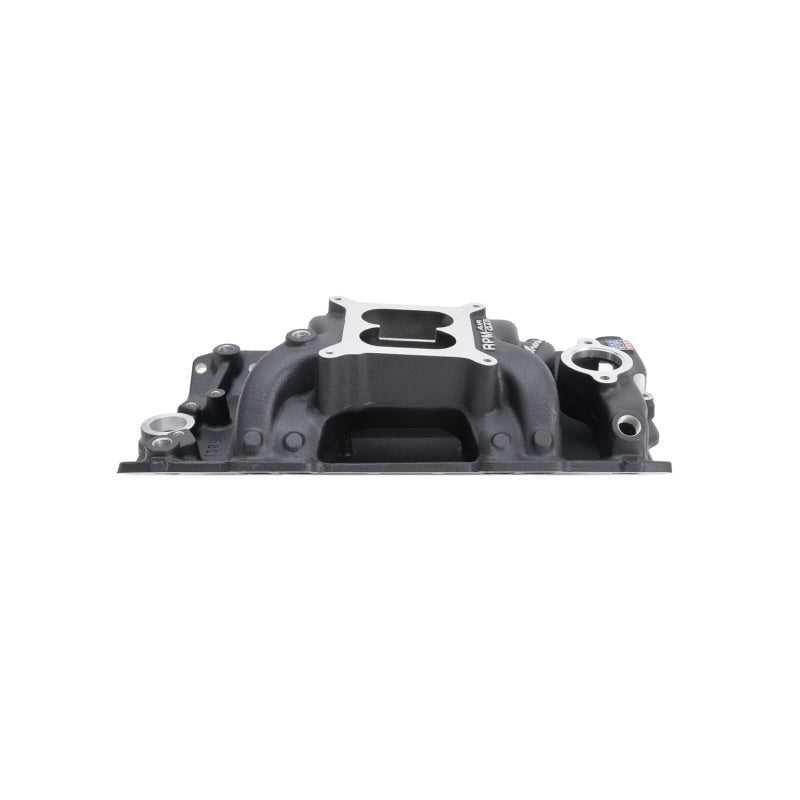

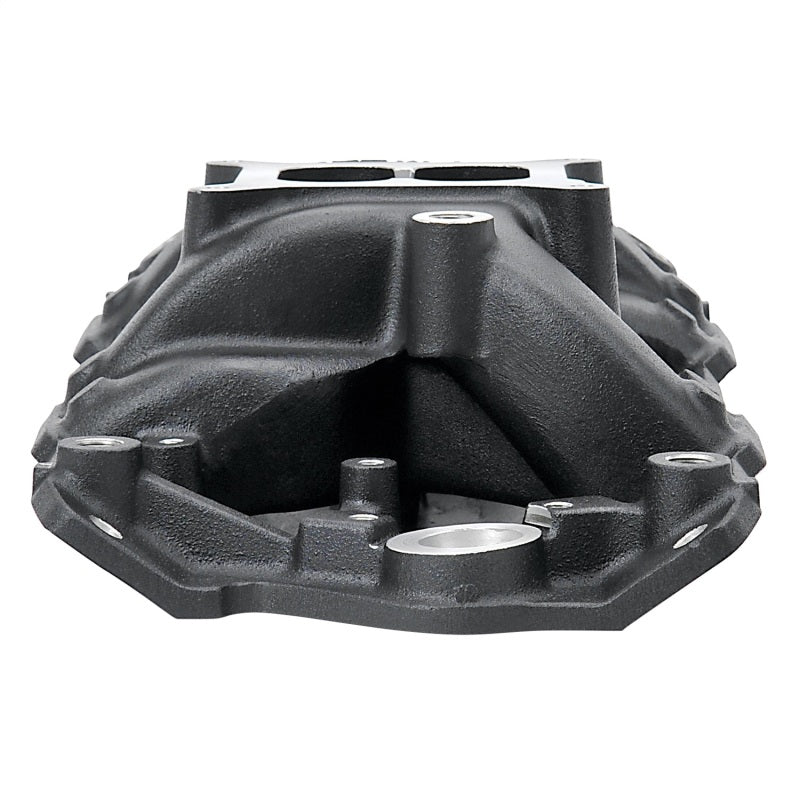

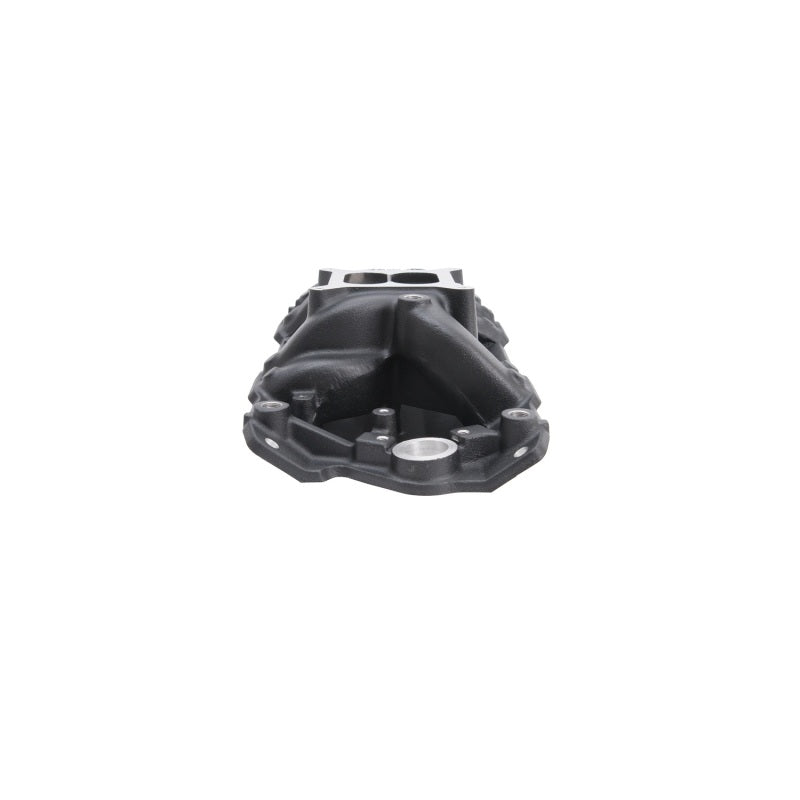

Edelbrock Intake Manifold, RPM Air-Gap, Small-Block Chevy 262-400, Black

CHEVROLET 262-400 SMALL-BLOCK V8
RPM AIR-GAP (1500-6500 RPM)

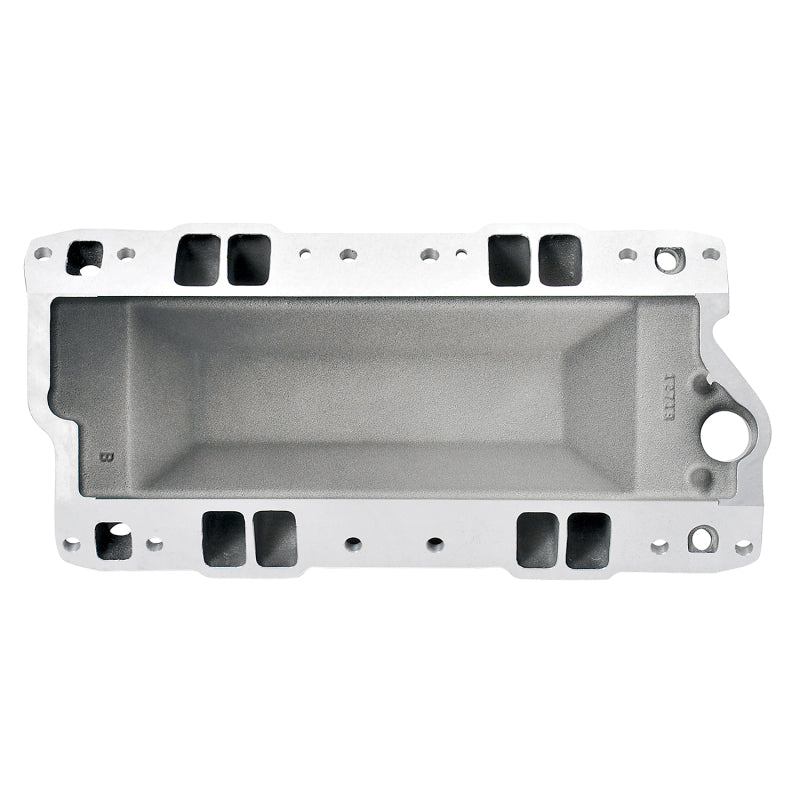

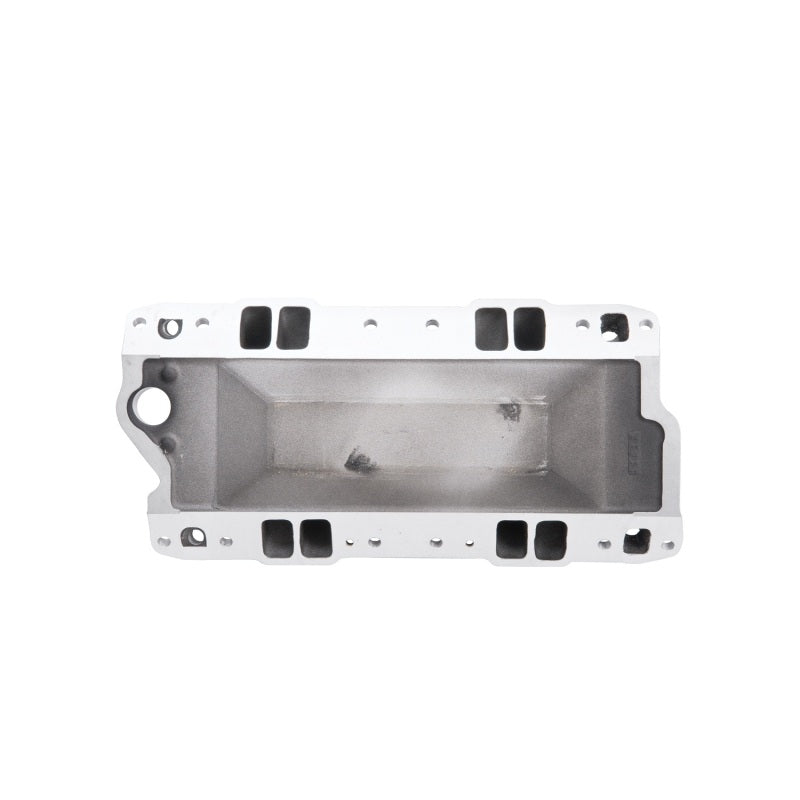

Designed for 1955-86 262-400 c.i.d. Chevrolet V8's, the award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all 1976 and later alternator and A/C brackets for the street. The heater outlet boss is angled for proper fit over the valve cover. The temp sensor boss clears all waternecks. For square-bore carburetors only. No provision for exhaust- heated chokes and no exhaust crossover. Not for 1987 and later cast iron heads and will not fit under stock Corvette hood. Available with satin, polished, black powder coated or EnduraShine finish.

Application

RPM Air-Gap (non-EGR)

 CARB RECOMMENDATIONS: Edelbrock Thunder Series AVS or Performer Series (650-800 cfm) Carburetor. Use bracket #8031 or #8036 for 1972-78.

 INSTALLATION NOTE: Use #8504 Edelbrock bolt kit. Recommended intake gasket: Edelbrock #7201. Manifold height: A-4.20", B-5.25" (same as #7101); Carb pad height: 4.72". Port exit dimensions: 1.14" x 1.95". For the heights of all Edelbrock manifolds, please visit the the Manifold Reference Dimensions page.

 CAMSHAFT RECOMMENDATIONS: Performer RPM #7102, #2201 and #2204. See Camshaft section for cam card specifications.
