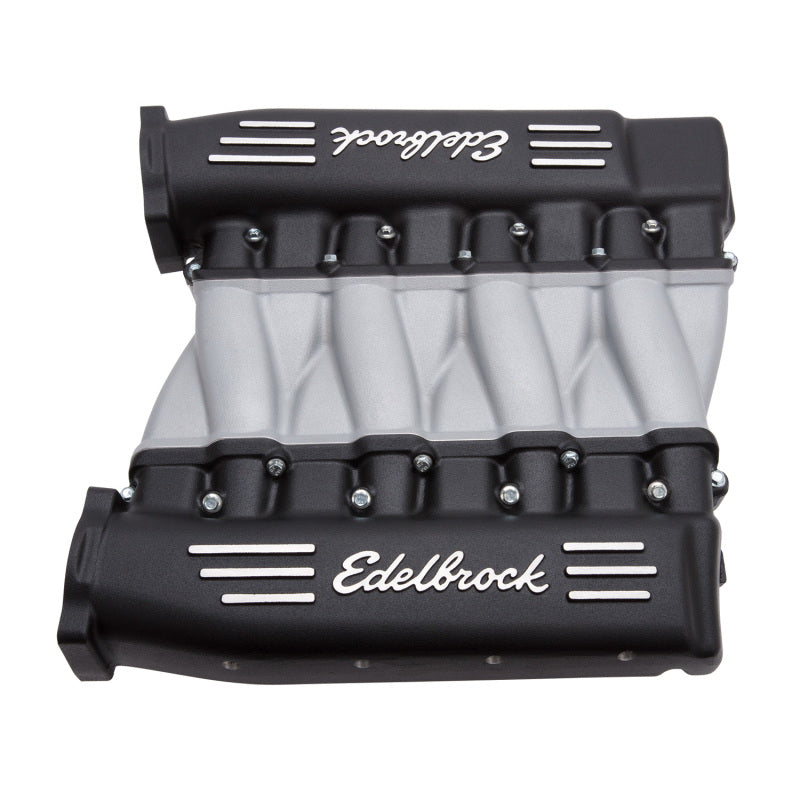

Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - Primary
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - Primary

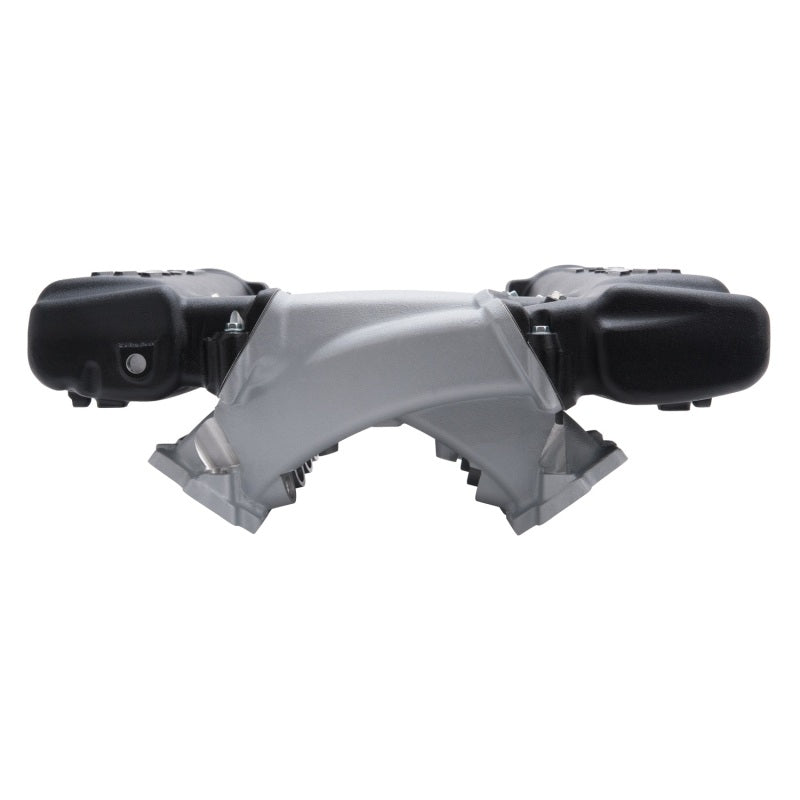

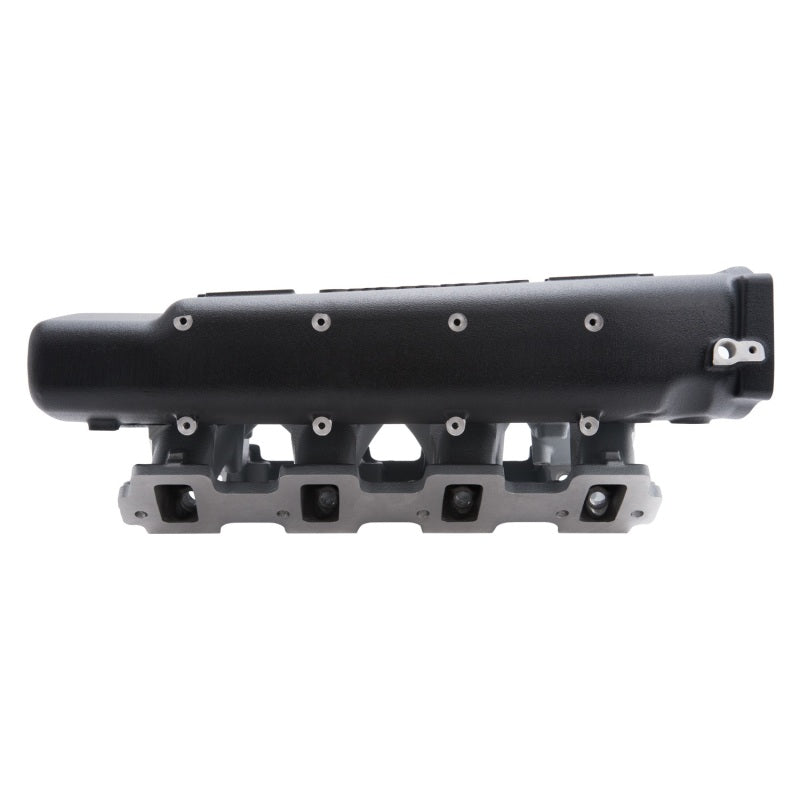

Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - Unmounted
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - Unmounted
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - Unmounted
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - Unmounted

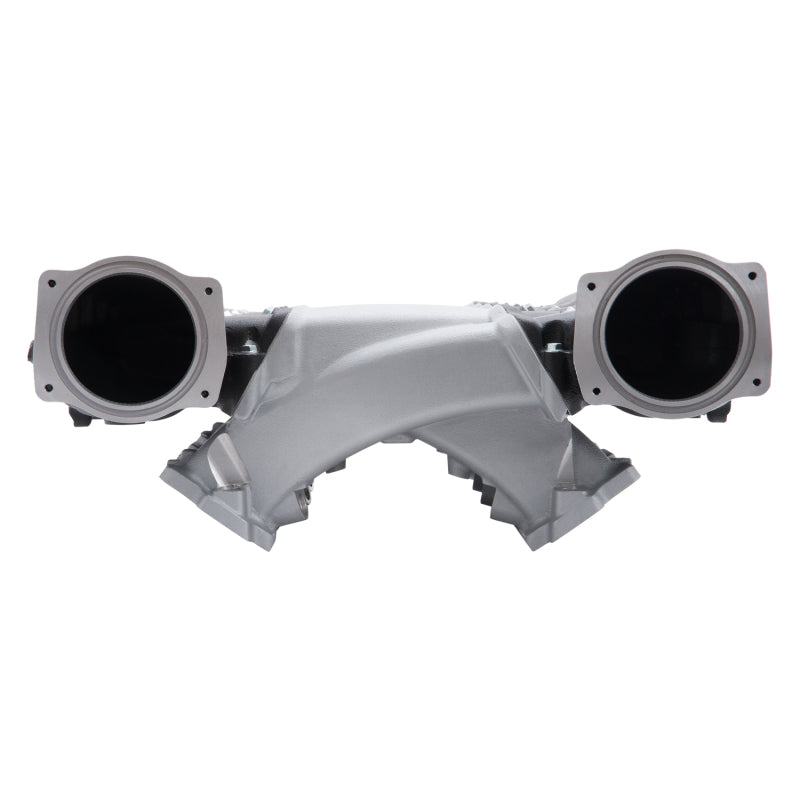

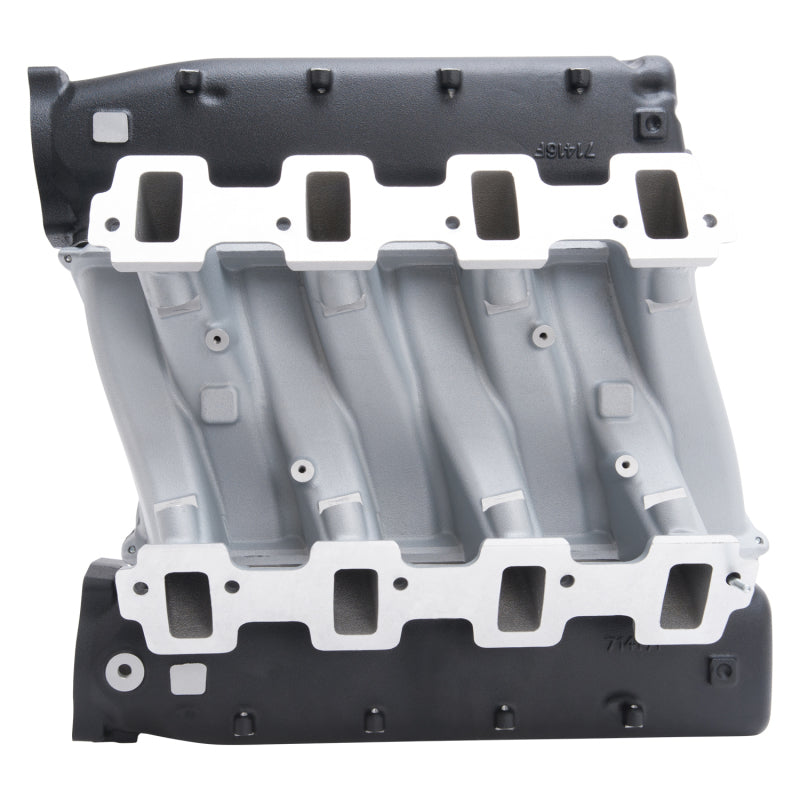

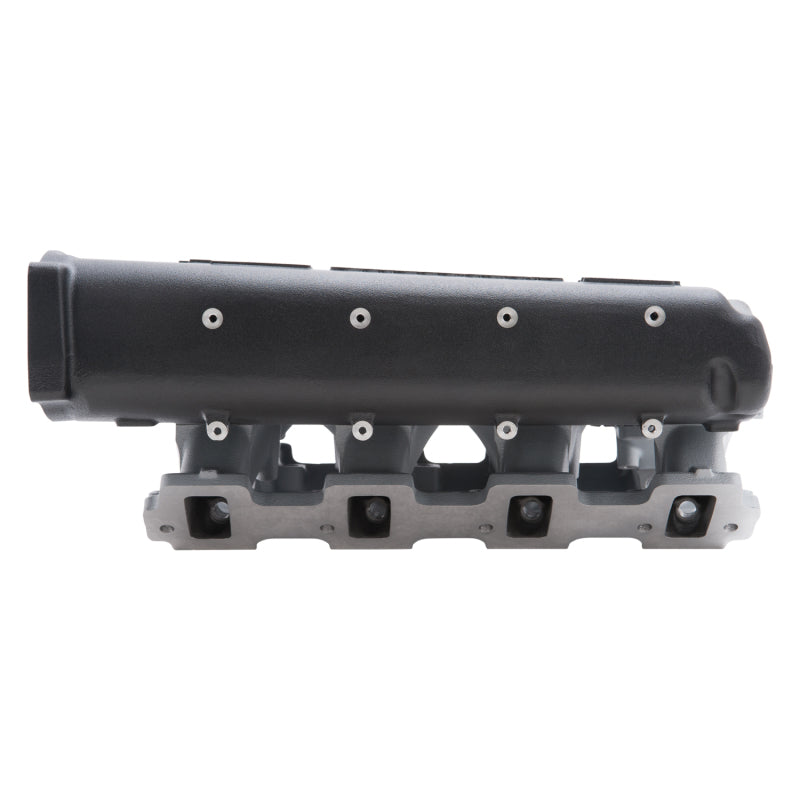

Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - out of package
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - out of package
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - out of package
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - out of package
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Photo - out of package
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 Technical Drawing
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 User 3
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 User 4
Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums 71413 User 1
Edelbrock

Edelbrock Black Cross - Ram LS3 Intake Manifold Chevy LS, with Plenums

SKU: 10R0U | MPN:  71413
Usually Ships in 10-14 Days
Sale price$2,139.94 USD

Black Cross- Ram LS3 Intake Manifold

The Edelbrock LS3 Cross-Ram #71413 intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Cross-Ram LS3 is ideal for anybody looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The unique cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners.

Specs:

  • Application: Universal
  • GTIN: 00085347714131
  • Center Maximum Height: 9.350 in
  • Color: Black Powder Coated
  • Front Maximum Height: 9.350 in
  • Material: Aluminum
  • Rear Maximum Height: 8.010 in
  • Single Or Dual Plane Type: Single Plane


Vehicle Fitments:

Year Make Model Submodel
2007 - 2008 Cadillac Escalade Base
2008 Cadillac Escalade Platinum
2007 - 2008 Cadillac Escalade ESV Base
2008 Cadillac Escalade ESV Platinum
2007 - 2008 Cadillac Escalade EXT Base
2007 - 2009 Chevrolet Avalanche LTZ, Base, LS, LT
2011 - 2012 Chevrolet Camaro 1SS, 1LT, 2SS
2010 - 2015 Chevrolet Camaro SS, LT, LS
2014 - 2015 Chevrolet Camaro Z/28
2012 - 2015 Chevrolet Camaro ZL1
2008 Chevrolet Corvette 427 Limited Edition Z06
2008 - 2013 Chevrolet Corvette Base, Z06
2010 - 2013 Chevrolet Corvette Grand Sport
2013 Chevrolet Corvette LT, 427
2011 Chevrolet Corvette Z06 Carbon
2009 - 2013 Chevrolet Corvette ZR1
2009 Chevrolet Silverado 1500 Hybrid
2007 - 2009 Chevrolet Silverado 1500 LS, Base, WT, LT, LTZ
2014 - 2017 Chevrolet SS Base
2007 - 2009 Chevrolet Suburban 1500 LS, LTZ, LT, Base
2007 Chevrolet Suburban 1500 Z71
2008 Chevrolet Tahoe LS, LT, Z71, Base, Hybrid, LTZ
2009 GMC Sierra 1500 Hybrid
2007 - 2009 GMC Sierra 1500 SL, SLT, Denali, SLE, WT
2007 - 2008 GMC Yukon Denali, SLT, SLE, Base
2008 GMC Yukon Hybrid
2007 - 2009 GMC Yukon XL 1500 SLT, SLE, Denali
2008 Hummer H2 Base, Adventure, Luxury
2008 - 2009 Pontiac G8 Base, GT
2009 Pontiac G8 GXP
