Edelbrock EFI Manifold Pro Flo XT GM LS1

Edelbrock Pro-Flo XT Manifolds For LS Chevy

CHEVROLET LS1 V8

PRO-FLO XT LS EFI (1500-7000 RPM)

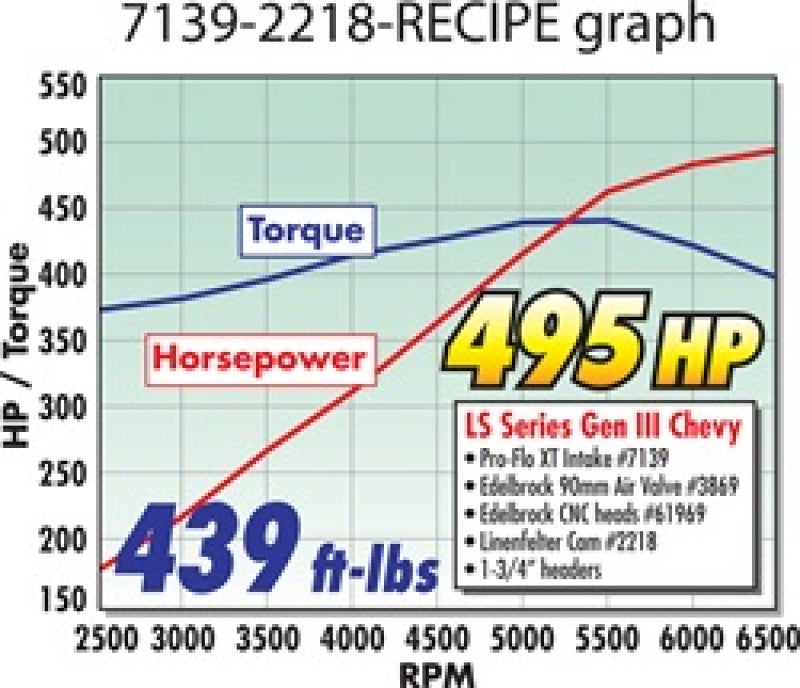

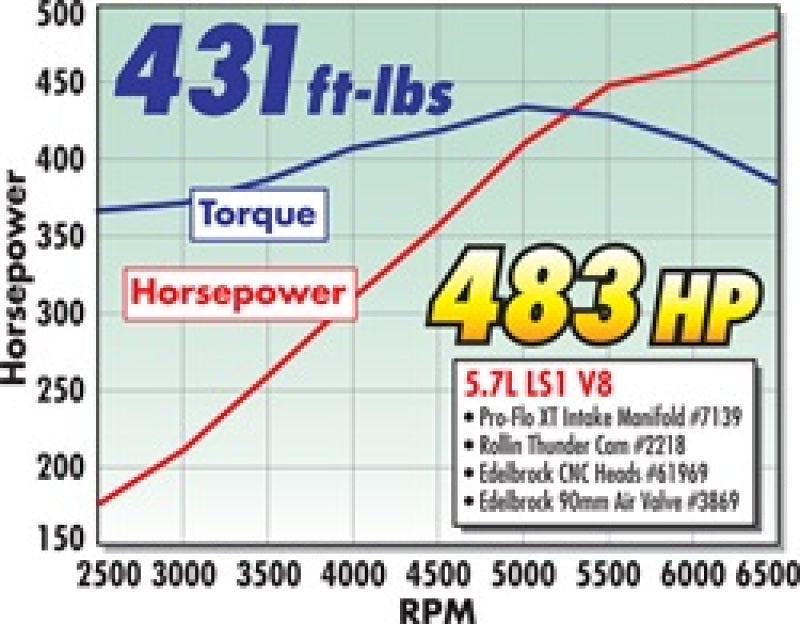

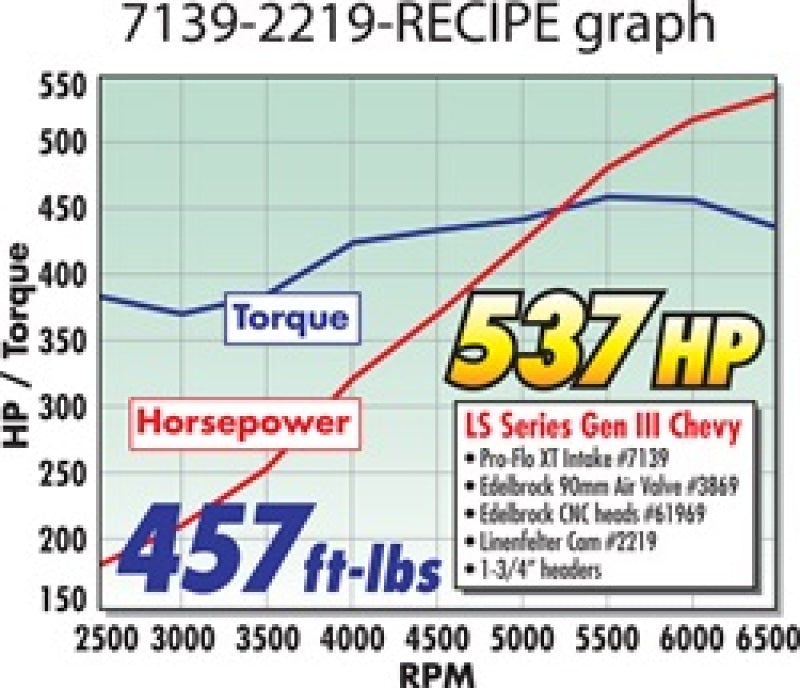

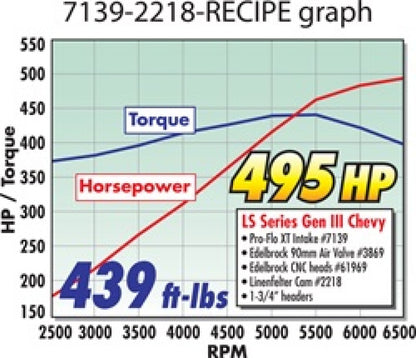

The Pro-Flo XT LS1 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features include a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. #7139 Accepts Pro-Flo XT throttle body #3869 or adapter #2737 and standard LS1 throttle bodies. #7140 (LS2) accepts GM OEM 90mm or Edelbrock #3869 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately).

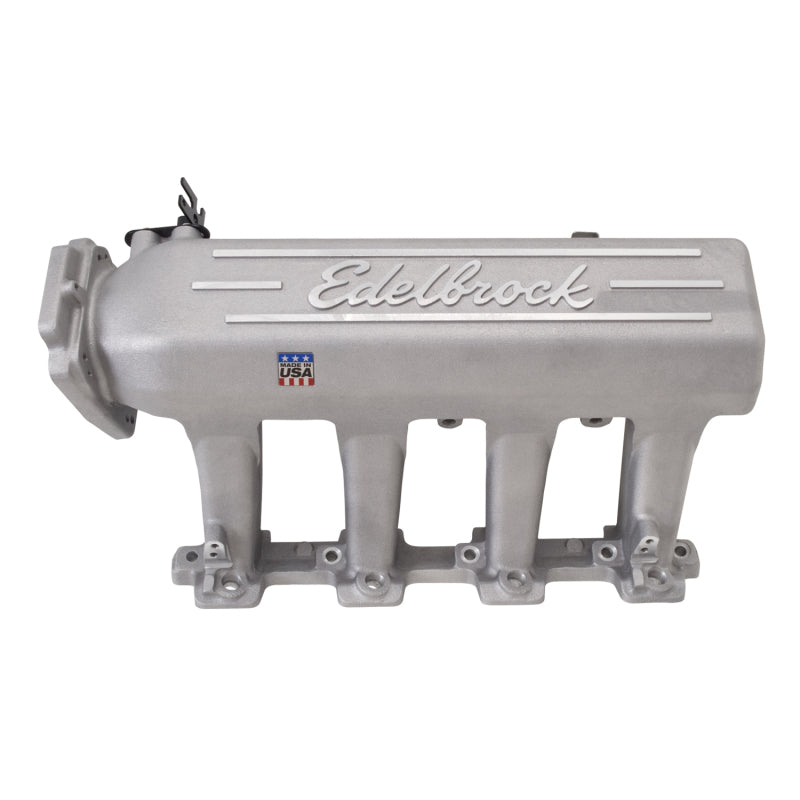

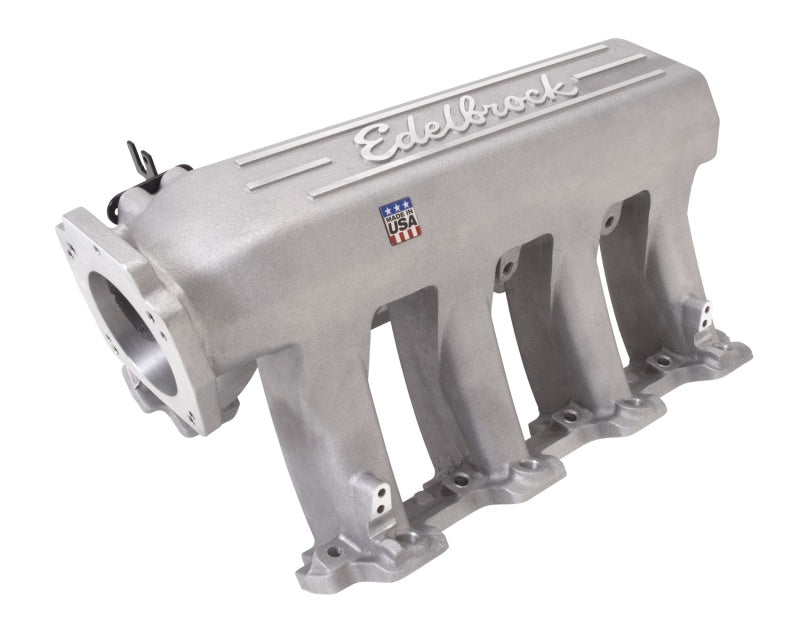

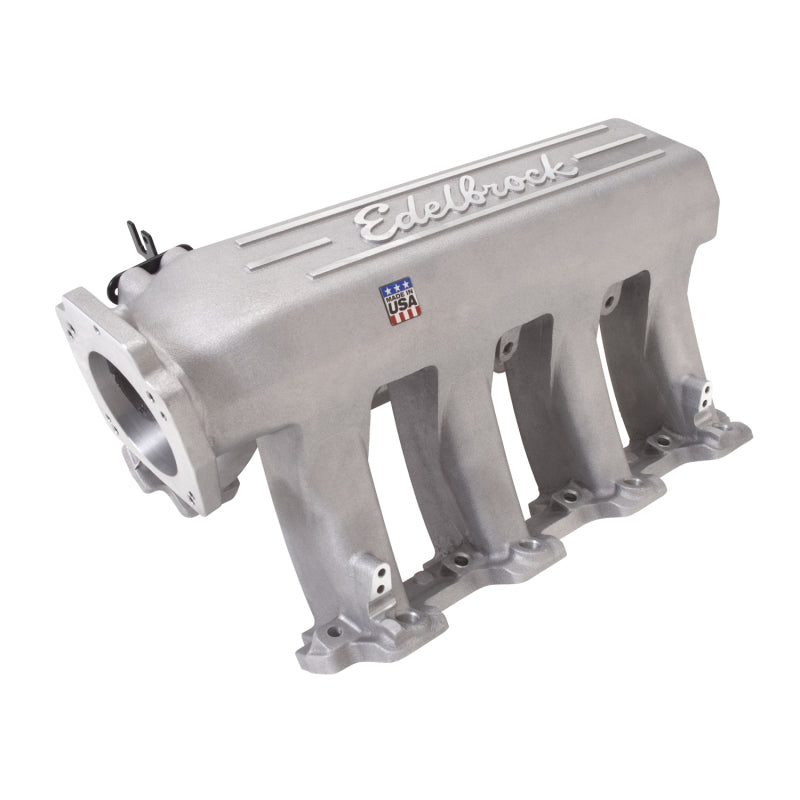

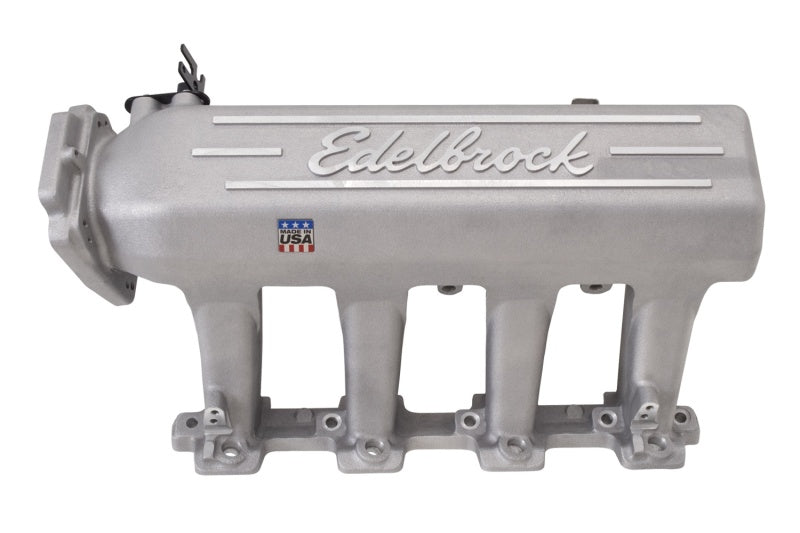

Pro-Flo XT LS EFI Intake Manifold

• GM Gen III LS1
• Cathedral Port
• EFI Intake
• 1500-7000 RPM Range
• Satin Finish

Application	Dyno	Emissions	Satin
Pro-Flo XT LS1 Series Gen III Manifold	-		7139

PRODUCT EMISSIONS GUIDE
The following guide is designed to help you determine which Edelbrock components are legal for use on your vehicle.

 50-State Legal
 For Racing Use ONLY
 For Use on Pre-Pollution Controlled Vehicles (PPCV)
 Stock Replacement Part
 Engine Swaps

Vehicle Fitments:
