Edelbrock SBC LS-1 Carbureted Manifold
Edelbrock Performer RPM Series Manifolds For Chevy LS
CHEVROLET LS1 V8
PERFORMER RPM LS1 (1500-6500 RPM)

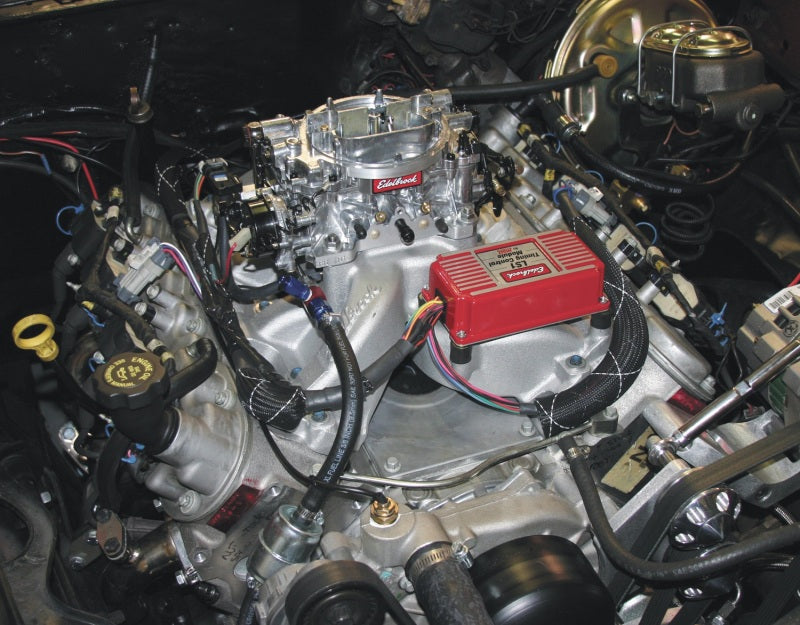

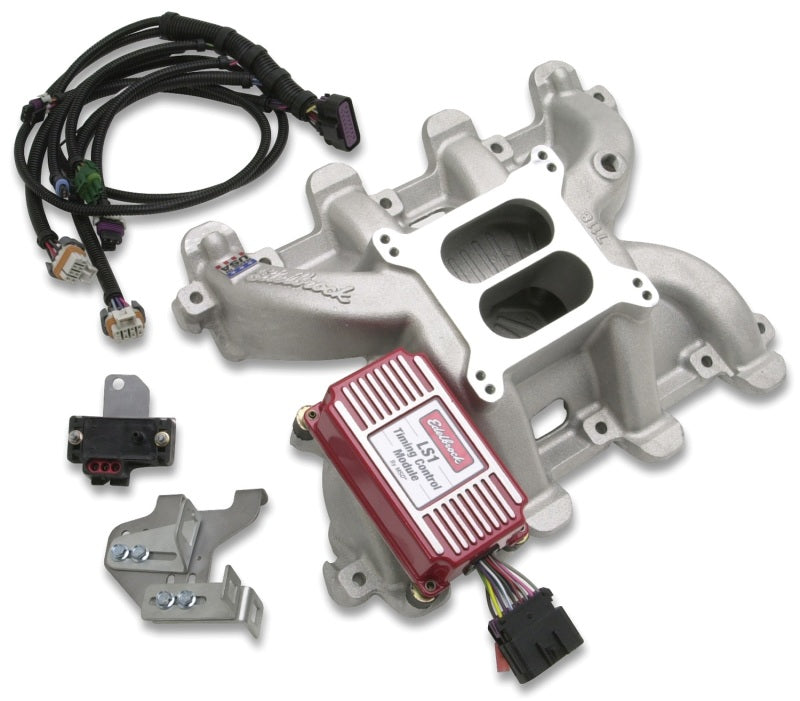

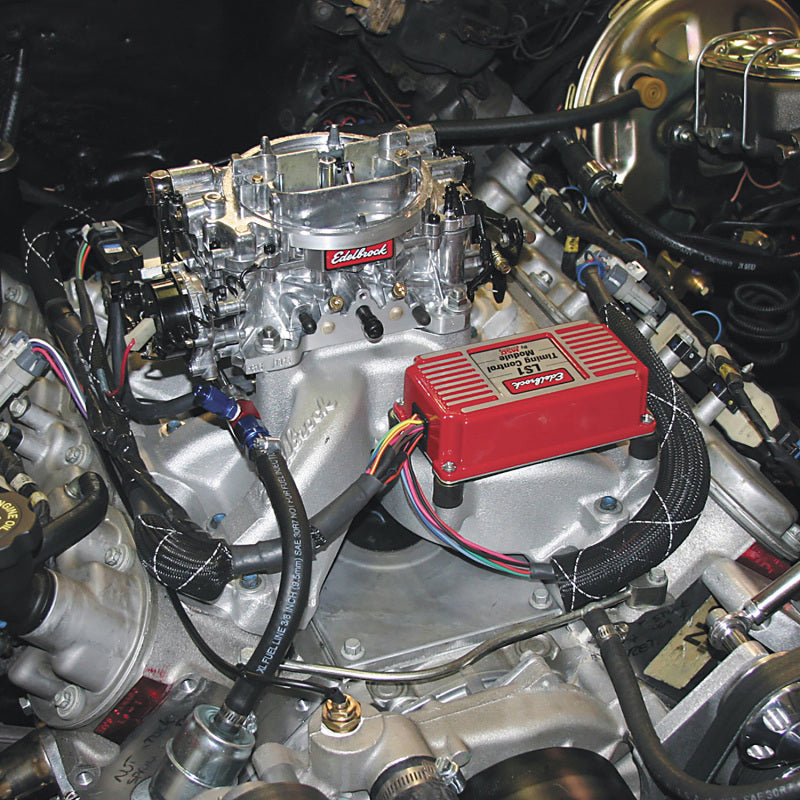

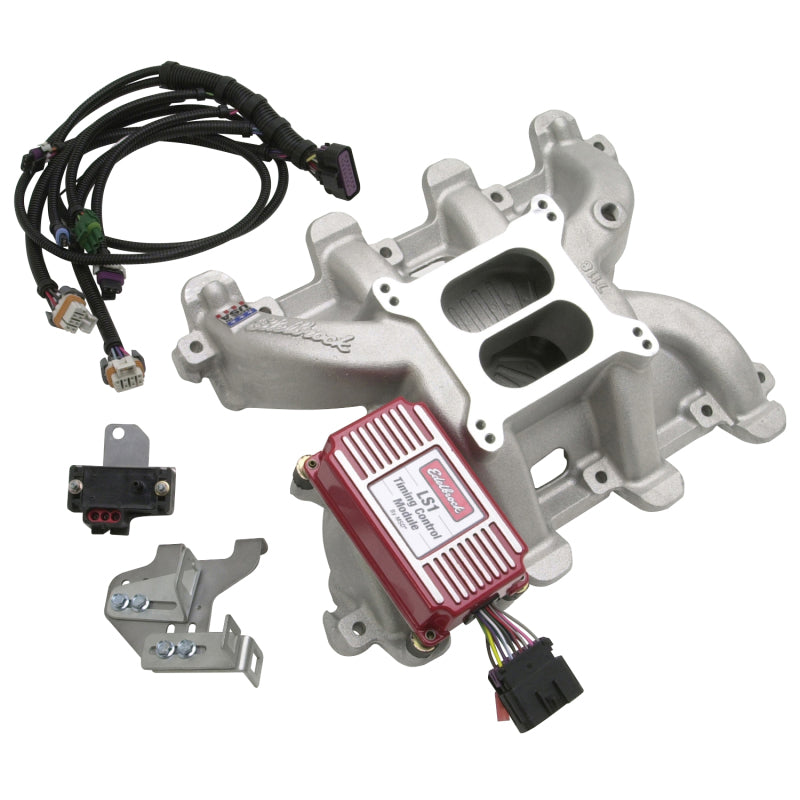

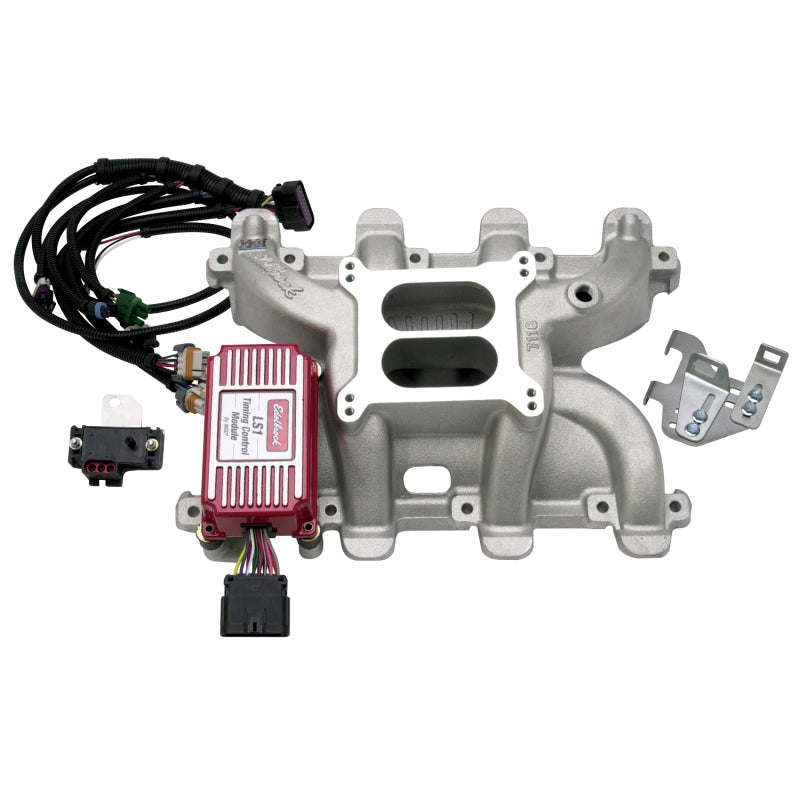

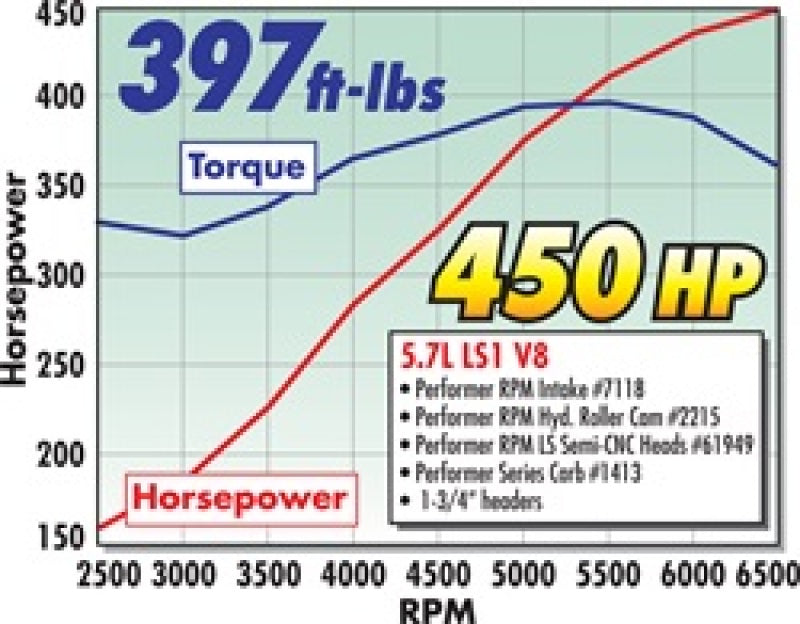

This powerful intake manifold is designed for the popular Chevrolet LS1 (5.7L) small-block V8 originally used in 1997 and later Corvettes and 1998-02 Camaros and Firebirds. It also fits the Corvette LS6 engine and any other Gen III engine including the LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L). It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve from 1500 to 6500 rpm. The Performer RPM LS1 is available with an optional wiring harness and electronic Timing Control Module made by MSD this ignition module is for LS1 (24x) ignitions only and works with OE sensors to fire the Coil-on-Plug ignition system and offers a choice of six timing curves. A special throttle and trans bracket that works with 700R-4, 200R-4 and Turbo 350 transmissions are included, making the LS1 engine an easy retro-fit into any muscle car, street rod or marine application.
| Application | Dyno | Emissions | Satin |
| Performer RPM LS1 Manifold & Timing Control Module (non-EGR) (A) | - |  |
7118 |
| CARB RECOMMENDATIONS: Edelbrock Thunder Series AVS or Performer Series (600-800 cfm) Carburetor. |
| INSTALLATION NOTE: Uses LS1/LS6 style individual port o-ring seals. Crankshaft sleeve #HP3795 and Flexplate #HP4004 is recommended when using a TH350, TH400 or 700R4 on n LS1; these items are available through Hughes Performance retailers or you can call Hughes at 800-274-RACE. Manifold height: A-4.50", B-5.40"; Carb pad height: 4.95". Port exit dimensions: .98" x 2.72". For the heights of all Edelbrock manifolds, please visit the Manifold Reference Dimensions page. |
PRODUCT EMISSIONS GUIDE
The following guide is designed to help you determine which Edelbrock components are legal for use on your vehicle.
50-State Legal
For Racing Use ONLY
For Use on Pre-Pollution Controlled Vehicles (PPCV)
Stock Replacement Part
Engine Swaps
